Body-Temp Activated Nitinol Sheet with 37°C Af Precision

The revolutionary advancement in smart materials has reached a new milestone with the development of body-temperature activated nitinol sheets featuring precise 37°C Af (austenite finish) temperature control. These specialized nitinol sheets represent a breakthrough in shape memory alloy technology, offering unprecedented precision for biomedical applications where activation at human body temperature is crucial. The 37°C Af precision ensures that these nitinol sheets remain in their martensitic phase at room temperature but transform to their austenitic phase when exposed to body heat, making them ideal for medical implants, surgical instruments, and therapeutic devices that require temperature-sensitive activation.

Understanding the Science Behind 37°C Af Precision in Nitinol Sheets

Transformation Temperature Engineering in Medical-Grade Nitinol

The engineering of nitinol sheets with 37°C Af precision represents a sophisticated understanding of the relationship between nickel-titanium composition and transformation temperatures. The austenite finish temperature (Af) is the critical parameter that determines when the alloy completes its transformation from the soft, deformable martensitic phase to the rigid, superelastic austenitic phase. In body-temperature activated nitinol sheets, this transformation is meticulously calibrated to occur at precisely 37°C, ensuring optimal performance in medical applications. The composition typically contains 54.7-57% nickel with the balance being titanium, following ASTM F2063 standards. This precise composition control allows manufacturers to achieve the exact transformation temperature required for medical applications. The nitinol sheet undergoes extensive testing to ensure consistent transformation behavior across different thermal cycles, maintaining its shape memory properties even after repeated heating and cooling cycles.

Microstructural Characteristics and Phase Transformation Mechanisms

The microstructural engineering of 37°C Af nitinol sheets involves careful control of grain size, precipitation patterns, and crystal structure to achieve the desired transformation temperature. During the manufacturing process, the nitinol sheet undergoes specific heat treatments that optimize the distribution of Ni4Ti3 precipitates, which play a crucial role in determining the transformation temperature. The martensitic transformation in these nitinol sheets occurs through a shear-dominant mechanism, where the crystal lattice undergoes a coordinated atomic rearrangement. At temperatures below 37°C, the material exists in its martensitic phase, characterized by a twinned structure that allows for easy deformation. When heated to body temperature, the nitinol sheet transforms to its austenitic phase, exhibiting superelastic properties with the ability to recover large strains. This transformation is reversible and can be repeated thousands of times without significant degradation of properties, making these nitinol sheets highly reliable for long-term medical applications.

Precision Manufacturing Techniques for Temperature Control

The production of nitinol sheets with 37°C Af precision requires advanced manufacturing techniques that ensure consistent composition and microstructure throughout the material. The process begins with vacuum induction melting of high-purity nickel and titanium raw materials, followed by multiple remelting steps to achieve homogeneous composition. The ingot is then hot-worked and cold-rolled to achieve the desired thickness, with intermediate annealing steps to control texture and grain structure. For nitinol sheets with 37°C Af precision, the final heat treatment is particularly critical, involving precise temperature control and atmosphere conditions. The aging treatment is carefully optimized to achieve the desired precipitation state, which directly influences the transformation temperature. Quality control measures include differential scanning calorimetry (DSC) testing to verify transformation temperatures, mechanical testing to ensure superelastic properties, and compositional analysis using electron probe microanalysis. Each batch of nitinol sheets undergoes rigorous testing to ensure that the Af temperature falls within the specified range of 37°C ± 2°C.

Medical Applications and Biocompatibility of Body-Temperature Activated Nitinol

Cardiovascular Applications and Stent Technology

Body-temperature activated nitinol sheets with 37°C Af precision have revolutionized cardiovascular medicine, particularly in the development of self-expanding stents and other intravascular devices. When deployed in the human body, these nitinol sheets remain soft and pliable at room temperature during insertion, allowing for minimally invasive delivery through small catheters. Upon reaching body temperature, the nitinol sheet transforms to its austenitic phase, providing the necessary radial force to maintain vessel patency. The precise 37°C Af temperature ensures consistent deployment behavior across different patient conditions and environmental factors. These nitinol sheets demonstrate excellent biocompatibility, with studies showing minimal inflammatory response and good endothelialization. The superelastic properties of the transformed nitinol sheet provide continuous, gentle pressure against vessel walls, reducing the risk of restenosis while maintaining vessel compliance. Long-term studies have shown that nitinol sheets maintain their mechanical properties and transformation behavior even after years of implantation, making them ideal for permanent cardiovascular implants.

Orthopedic Implants and Bone Fixation Systems

The application of 37°C Af nitinol sheets in orthopedic medicine has opened new possibilities for dynamic bone fixation and corrective devices. These nitinol sheets can be fabricated into various configurations, including plates, rods, and specialized fixation hardware that activates at body temperature. The shape memory effect allows orthopedic surgeons to implant the nitinol sheet in a deformed state at room temperature, then rely on body heat to activate the device and apply corrective forces. In spinal applications, nitinol sheets can be used to create dynamic stabilization systems that provide support while allowing natural spine movement. The biocompatibility of nitinol sheets has been extensively studied, with research showing excellent integration with bone tissue and minimal adverse reactions. The fatigue resistance of these materials is particularly important in orthopedic applications, where devices must withstand millions of loading cycles. Clinical studies have demonstrated that nitinol sheets maintain their shape memory properties throughout the healing process, providing consistent corrective forces that promote proper bone alignment and fusion.

Minimally Invasive Surgical Instruments and Tools

The development of surgical instruments using 37°C Af nitinol sheets has significantly advanced minimally invasive surgical techniques. These instruments can be designed to change shape or stiffness when exposed to body temperature, allowing surgeons to navigate complex anatomical pathways with greater precision. Nitinol sheets can be incorporated into guidewires, catheters, and endoscopic instruments that require specific mechanical properties at different temperatures. The ability to program specific shapes into the nitinol sheet allows for the creation of instruments that automatically conform to anatomical structures when activated by body heat. This temperature-sensitive behavior is particularly valuable in neurosurgical applications, where instruments must navigate delicate brain tissue while maintaining precise positioning. The superelastic properties of transformed nitinol sheets provide excellent tactile feedback to surgeons, allowing for better control and manipulation during procedures. These instruments can be sterilized using standard hospital protocols without affecting their transformation properties, making them practical for routine clinical use.

Manufacturing Excellence and Quality Assurance Standards

Advanced Production Methodologies and Process Control

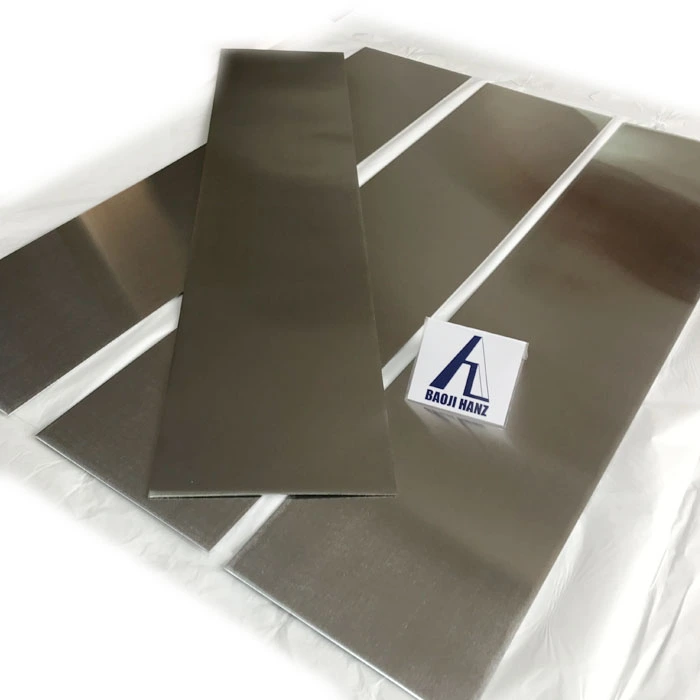

The manufacturing of nitinol sheets with 37°C Af precision requires state-of-the-art production facilities and stringent process control measures. At Baoji Hanz Metal Material Co., Ltd., the production process begins with careful selection of high-purity raw materials, with nickel content ranging from 54.7% to 57% and the balance being titanium. The vacuum induction melting process ensures complete homogenization of the alloy while preventing contamination from atmospheric gases. The nitinol sheet production involves multiple hot and cold working steps, with precise control of reduction ratios and intermediate annealing treatments. The final thickness of the nitinol sheet can be controlled to a minimum of 0.1mm, with maximum dimensions of 300mm × 800mm and minimum dimensions of 100mm × 100mm. Custom dimensions are available based on specific application requirements. The production facility maintains ISO 9001:2008 certification, ensuring consistent quality and traceability throughout the manufacturing process. Each batch of nitinol sheets undergoes comprehensive testing, including transformation temperature measurement, mechanical property evaluation, and compositional analysis to ensure compliance with ASTM F2063 standards.

Quality Control Systems and Testing Protocols

The quality assurance program for 37°C Af nitinol sheets encompasses multiple testing phases to ensure consistent performance and reliability. Differential scanning calorimetry (DSC) testing is performed on every batch to verify transformation temperatures, with acceptance criteria requiring Af temperatures within ±2°C of the target 37°C. Mechanical testing includes tensile testing to verify ultimate tensile strength exceeding 500 MPa and elongation capabilities of 10% or more. The superelastic properties of the nitinol sheet are evaluated through loading-unloading cycles to ensure consistent recovery behavior. Fatigue testing is conducted to verify the durability of the material under cyclic loading conditions, which is critical for medical applications. Surface quality inspection includes optical microscopy and scanning electron microscopy to detect any defects or irregularities. Chemical composition analysis is performed using energy-dispersive X-ray spectroscopy to ensure compliance with specified nickel-titanium ratios. The company maintains detailed production records and material test certificates (MTC) for each batch, providing full traceability for regulatory compliance and customer requirements.

Customization Capabilities and OEM Services

Baoji Hanz Metal Material Co., Ltd. offers comprehensive customization services for nitinol sheets with 37°C Af precision, accommodating specific dimensional, compositional, and performance requirements. The company's engineering team works closely with customers to develop nitinol sheet solutions tailored to their unique applications. Custom Af temperatures can be achieved across a range from -10°C to 100°C, depending on the specific requirements of the application. The nitinol sheet can be processed into various forms, including flat sheets, curved sections, and complex geometries using specialized forming techniques. Surface treatments and coatings can be applied to enhance biocompatibility or provide specific surface properties. The company maintains a substantial inventory of standard sizes to ensure fast delivery, with lead times of 5-25 working days depending on order complexity. Payment terms are flexible, accepting T/T, Western Union, and MoneyGram to accommodate international customers. The monthly production capacity of 600 kilograms ensures reliable supply for both small-scale research applications and large-scale commercial production. Quality documentation, including photographs of finished products, packaging details, and material test certificates, are provided to customers before shipment to ensure complete satisfaction.

Conclusion

Body-temperature activated nitinol sheets with 37°C Af precision represent a significant advancement in smart material technology, offering unprecedented opportunities for medical device innovation. The precise control of transformation temperature, combined with excellent biocompatibility and superelastic properties, makes these materials ideal for a wide range of medical applications. The sophisticated manufacturing processes and quality control systems ensure consistent performance and reliability, meeting the stringent requirements of the medical device industry.

As a leading China nitinol sheet factory, China nitinol sheet supplier, China nitinol sheet manufacturer, and China nitinol sheet wholesale provider, Baoji Hanz Metal Material Co., Ltd. brings seven years of expertise in nitinol shape memory alloy, superelastic nitinol alloy, and nickel titanium alloy manufacturing. Our direct supply model offers significant cost advantages while maintaining the highest quality standards. With a large stock of standard sizes, we ensure fast delivery to meet your project timelines. Our OEM services are designed to meet the specific needs of our clients, whether it's custom sizes, specific alloy compositions, or specialized packaging options. We work closely with you to ensure that our nitinol sheet products fit seamlessly into your projects. For more information about our body-temperature activated nitinol sheets with 37°C Af precision, please contact us at baojihanz-niti@hanztech.cn.

References

1. Duerig, T.W., Pelton, A.R., and Stöckel, D. "An Overview of Nitinol Medical Applications and Their Impact on the Field of Shape Memory Alloys." Materials Science and Engineering: A, 2019, 742, 663-679.

2. Morgan, N.B., and Broadley, M. "Medical Shape Memory Alloy Applications - The Market and Its Products." Journal of Materials Engineering and Performance, 2004, 13(3), 281-288.

3. Thierry, B., Tabrizian, M., Trepanier, C., and Yahia, L. "Effect of Surface Treatment and Sterilization Processes on the Corrosion Behavior of NiTi Shape Memory Alloy." Biomaterials, 2000, 21(14), 1451-1459.

4. Ryhänen, J., Niemi, E., Serlo, W., Niemelä, E., Sandvik, P., Pernu, H., and Salo, T. "Biocompatibility of Nickel-Titanium Shape Memory Metal and Its Corrosion Behavior in Human Cell Cultures." Journal of Biomedical Materials Research, 1997, 35(4), 451-457.
