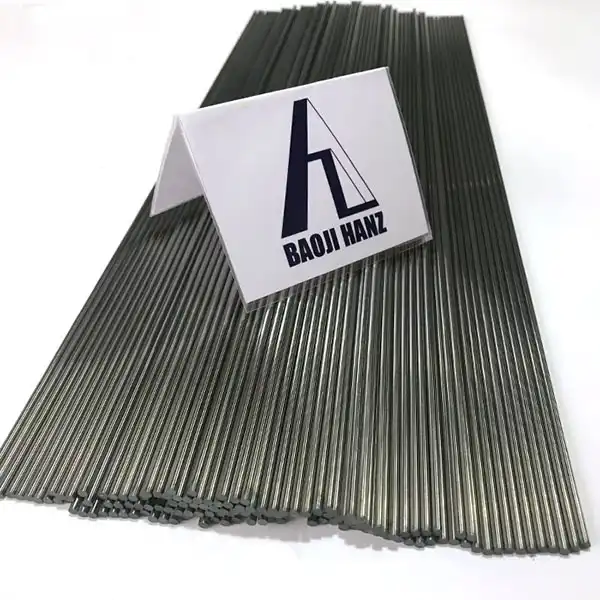

Nitinol Shape Memory Alloy bar
Density:6.45g/cm³
Melting Point:1240 - 1310°C
Transformation Temperature (Af):Customizable (-20 to 110)°C
MOQ:1kg
Standards:ASTM F2063 orASTM B348
Application:Medical,Industrial,Aerospace
Nitinol Shape Memory Alloy Bar - Medical & Industrial Grade | Baoji Hanz
Stock held by Baoji Hanz Metal Material Co., Ltd. covers Nitinol Shape Memory Alloy bar for medical device production and industrial engineering work. Each bar runs about 50% Nickel and 50% Titanium. Tensile strength sits between 850 and 1900 MPa. Af transformation temperature can be set anywhere from −20°C to 100°C. Diameters span 3.0–50 mm. Bars are made to GB 24627-2009 and ASTM F2063-18. Minimum order: 1 kg.
Technical Specifications
| Property | Value |
|---|---|
| Materials | Nickel (Ni): ~50%, Titanium (Ti): ~50% |
| Density | 6.45g/cm³ |
| Melting Point | 1240 - 1310°C |
| Transformation Temperature (Af) | Customizable (-20 to 110)°C |
| Tensile Strength | 754 - 960MPa |
| Elongation at Break | 15 - 20% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| MOQ | 1kg or 1meter |
Material Characteristics
Shape memory and superelastic behavior in this bar stock come from the Ni-Ti composition. How the material is heat treated during production matters as well. Chemistry stays steady thanks to vacuum melting. Controlled heat treatment is applied right through the whole production sequence. Ranges for mechanical properties in the specification table above rest on controls of this kind.
Tolerances down to ±0.02 mm are held over the whole diameter range. That counts for jobs where the bar goes straight into CNC turning or milling. Tighter dimensional control at the input stage means less setup variation. Scrap loss during machining drops too.
Pick from four surface conditions: black scale, centerless ground, pickled, or polished. Whichever one fits the next step in your process, take that.
Alloy composition and heat treatment settings let you tune the Af transformation temperature from −20°C to 100°C. For thermally actuated parts, the activation temperature is fixed when you order the material. Post-processing will not change it later.

Application Areas
Medical Device Manufacturing
Shops use this Nitinol Shape Memory Alloy bar as bar stock for ultrasonic scalpel blanks. Orthopedic implant components and structural parts of surgical instruments come from it too. High tensile strength plus recovery after repeated deformation is why it suits parts that take load again and again.
Medical-grade bars come off the line made to ASTM F2063-18. Some buyers need extra paperwork for regulatory submissions. Batch-specific test reports cover that, and you can get them when you order.
Industrial and Engineering Applications
Factories use these bars in thermal actuator assemblies and in structures that hold sensors. Tooling parts are another common use. So are memory-structure components. In each case the phase transformation has to behave the same way, run after run, while the equipment is working.
The Af temperature range is wide, from −20°C to 100°C. It lets the same alloy platform serve applications in different thermal environments. Those run from assemblies close to cryogenic conditions to actuator systems at elevated temperatures.

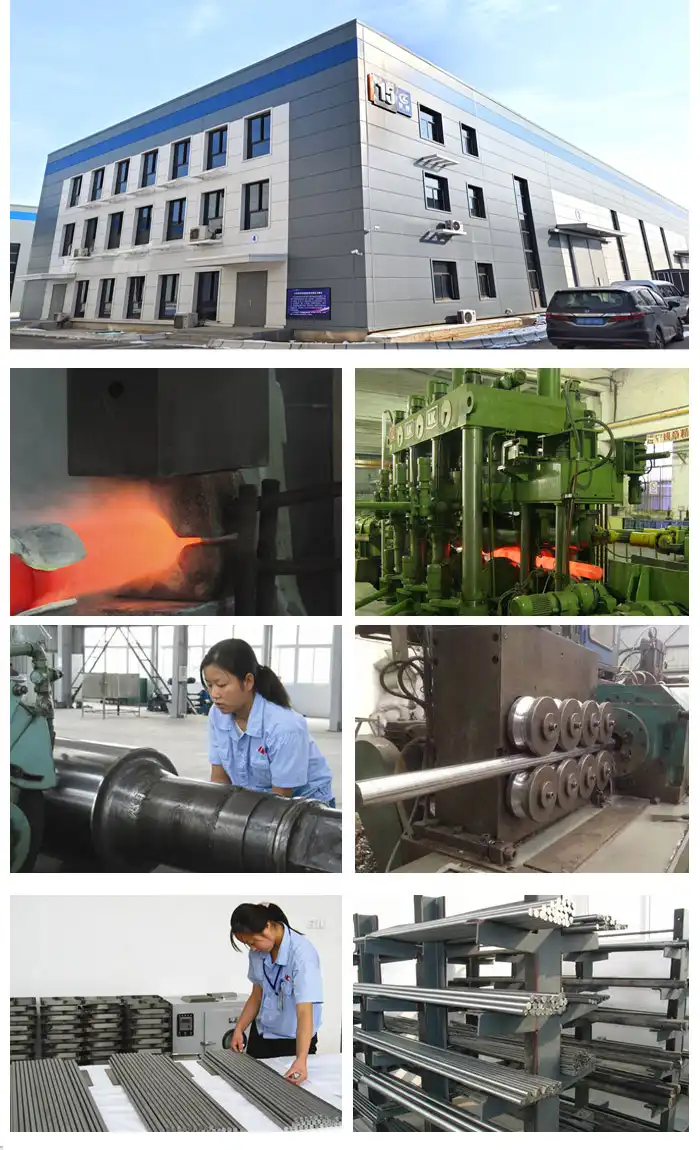

Production and Quality Control
Bars come from an in-house process. Vacuum melting is the first step. Forming comes next. Heat treatment follows. A dimensional inspection comes last. That connected sequence covers the full production chain, from melt to finished bar.
Batch-by-batch inspection covers chemical composition, mechanical properties, and DSC phase-transformation temperature measurement. Test reports for each batch are available upon request and can be used to support incoming quality checks or regulatory documentation.
Both medical-grade and industrial-grade supply options are available from the same facility under the same quality system.
Customization Options for Nitinol Shape Memory Alloy bar
Diameters of 3.0–50 mm make up our standard range. Need a size outside that? Describe the application. We can talk it through. Length gets set when you order. The same applies to Af transformation temperature. Delivery condition and surface finish follow the same rule.
Many buyers just need material for a prototype or early development work. For that, a 1 kg MOQ does the job. Specification work can move ahead, and nobody has to commit to production volumes.

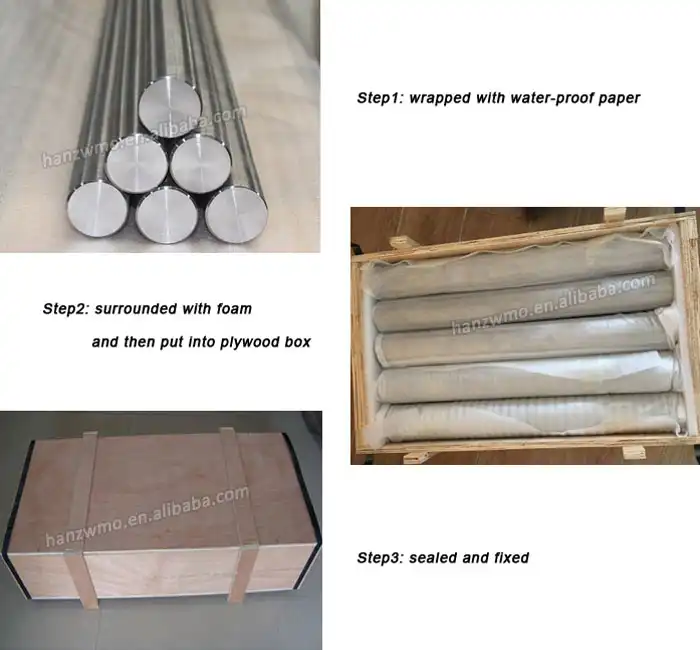

Packaging
Inside the pack, bars sit flat. A gap separates each piece from the next one. That way, the surfaces of the Nitinol Shape Memory Alloy bar never touch in transit. Size and finish stay steady too, from the day it ships to the day it lands.


Frequently Asked Questions
Q: What diameter range is available?
A: Off-the-shelf sizes start at 3.0 mm and stop at 50 mm. Looking for a size past that range? Get in touch. We can work it out together. The application matters here. So does the quantity you order.
Q: Can the Af transformation temperature be specified at order?
A: Yes. The Af temperature can be set at any point between −20°C and 100°C. Tell us which activation temperature you need when you order. We then change the alloy mix and the heat treatment so they fit that figure.
Q: What standards does this bar meet?
A: We make the bars to GB 24627-2009 and ASTM F2063-18. The required chemical composition comes from those two standards. They also spell out the performance criteria for phase-transformation.
Q: Are material test reports available?
A: Yes. We can provide a report for each batch when you ask. It covers chemical composition. Mechanical properties and DSC transformation temperature are included as well.
Q: What is the minimum order quantity?
A: The MOQ is 1 kg. Small orders stay practical for prototyping and R&D buying.
Q: What surface conditions do you offer?
A: Black scale is one option. Centerless ground, pickled, and polished are also available. The right pick depends on the machining or finishing work planned after receipt.
Contact Us
Send your specifications to baojihanz-06@hanztech.cn for a Nitinol Shape Memory Alloy bar quote or technical inquiry. We supply both medical-grade and industrial-grade Nitinol bar stock.
