nitinol shape memory alloy sheet

Thickness: 0.1-10mm
Width: ≤1000mm (customizable)
Tolerance: ±0.01mm (0.10-0.15mm), ±0.05mm (≥1.00mm)
Standards:ASTM F2063, ISO 5832-11, GB/T 23932
Density: 6.45g/cm³
Temperature Range:-20℃ ~ +120℃
Application:Medical (bone plates, supports, frames); Industrial (seismic components); Consumer Products (eyeglasses, self-repairing tools).

Basic Knowledge of Nitinol Shape Memory Alloy Sheet

The main material of nitinol shape memory alloy sheet, foils, and strips is nickel titanium alloy. Nickel titanium alloy sheets are well suited for laser cutting, etching, stamping, and electrical discharge machining (EDM). Efficient processing and surface treatment technologies form a smooth lightly oxidized surface. Nickel titanium alloy materials currently have prominent performance and application value in the medical field. As a two-dimensional structure, sheets differ from wires and tubes, offering design options such as stamping, punching, and deep drawing.

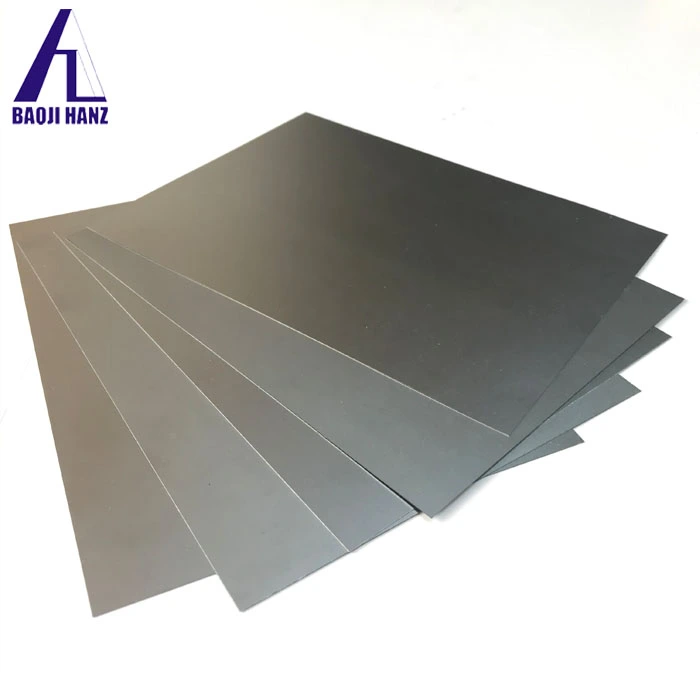

nitinol shape memory alloy sheet

- nitinol shape memory alloy sheet with shape memory effect (SME) and superelasticity, composed of ~50% Ni and ~45% Ti.

Temperature of Nitinol Shape Memory Alloy Sheet

- Transition temperature (Af): -50℃ ~ +150℃ (customizable for specific applications).
- Service temperature: -20℃ ~ +120℃ (continuous use); short-term up to +150℃.

Attribute

Dimension

Thickness ≥ 0.1 mm, width ≤1000mm (customizable)

Standards ASTM F2063, ISO 5832-11, GB/T 23932;
Materials

Nitinol alloy ,Niti alloy

Features

Superelastic and Shape Memory available.

Temperature Range ( Af )

- 20 ~ 150 deg. C

Surface

- Standard surface: Annealed (smooth, oxide film), Ra ≤ 0.8μm.
- Optional surface: Polished (Ra ≤ 0.2μm), acid-washed, or coated (TiN, PTFE).

Thermomechanical Conditions

As Cold-Worked, Straight Strain Annealed and Shape Set Annealed.

Production Process

- Vacuum melting (VAR/ESR) → Hot rolling → Cold rolling → Annealing (shape setting) → Surface treatment → Inspection.

nitinol feture

Advantages

- High shape recovery accuracy and long-term fatigue resistance.

- Lightweight (density approximately 6.45g/cm³), with a higher strength-to-weight ratio compared to stainless steel.

- Corrosion-resistant, suitable for harsh environments (marine, medical).

- Reduces assembly complexity, enhances product durability and safety.

Application

- Medical: Bone fixation plates, dental orthodontic appliances, support components.

- Industrial: Pipe fittings, seismic components, smart actuators.

- Consumer Products: Eyeglass frames, self-repairing tools.

nitinol Application
