Superelastic Nickel Titanium Alloy Sheet

Technique:Sintering
Other names:nitinol plates
Content:Ti (Min)45%, Ni:55.4%--56.2%
Standard:ASTM F2063-12/18
Processing Service:Cutting
Density: Approximately 6.45g/cm³
Feature:Super elastic, shape memory, high strength
Surface:polished
MOQ:500meters
Size:0.03min
Application environment: Electronic components or Medical use

Superelastic Nickel Titanium Alloy Sheet - Ultra-Thin, Custom Af, ASTM F2063-18 Compliant

Superelastic Nickel Titanium Alloy Sheet is supplied by Baoji Hanz Metal Material Co., Ltd. Two steps make it: vacuum melting, then cold rolling. Nickel content stays in the 54.5 to 57.0 wt% range. Density is 6.45 g/cm³. To check the sheet, it gets tested against ASTM F2063-18 and GB 24627-2009. Thickness starts at 0.03 mm. Tolerances can be held to ±0.003 mm. Stock comes in medical-grade or industrial-grade, and buyers choose which one they want. The Af transformation temperature can be set from –20°C to +100°C. That way the material fits the job at hand.

Characteristics

Shape Recovery and Superelasticity

After heavy deformation under cyclic loading, the sheet goes back to its original shape. Spring elements, surgical instrument components, and flexible connectors all face repeated stress. This behavior suits them well.

Ultra-Thin Precision

Thickness goes from 0.03 mm to 1 mm. Dimensional tolerances land between ±0.003 and ±0.02 mm. Microdevices and tiny medical parts depend on a size that stays put. With this range, they can use the sheet just as it arrives.

Fatigue and Corrosion Resistance

Long runs of deformation cycles do not break the alloy's structure apart. Corrosion resistance holds up as well. Body-contact use is fine thanks to its biocompatibility, and harsh chemical settings in industry suit it too.

You Can Set the Phase Transformation Temperature

The Af temperature is adjustable from –20°C to +100°C. Set it there, and the thermal-actuated response matches what your application deals with.

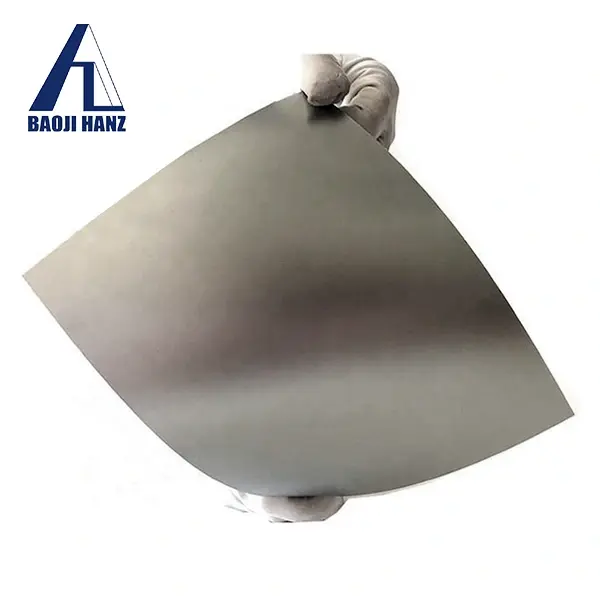

Superelastic Nickel Titanium Alloy Sheet factory

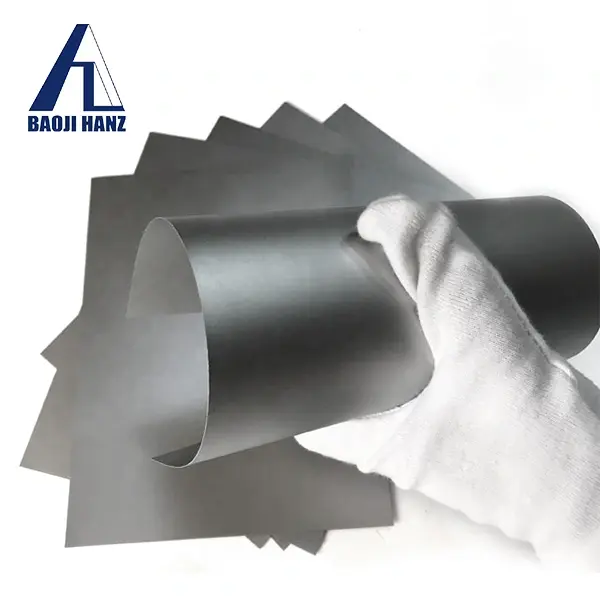

Superelastic Nickel Titanium Alloy Sheet supplier

Technical Specifications

Place of Origin Shaanxi, China
Name nitinol plates
Color Bright surface
Materials Nitinol alloy
Density 6.45 gm/cm3
Ti (Min) 45%
Strength 980 Mpa
Processing Service Bending, Welding, Decoiling
Width ≤200mm
Tensile strength 920Mpa
Feature Superelastic
Supply Status Full annealed
The Max recovery stress 600 MPa
Standard ASTM F2063-18
Certificate ISO9001:2015
Application Medical device
Chemical element Af range Available production Line Usage Sample
Nickel 55% Titanium 45% 0℃to 100℃ Rod&wire,Plate&sheet,Strip&foil Medical&Industry On stock (various specification)
Nickel 55% +V +Ti
Nickel 55% +Fe +Ti Subzero 30℃ to -5 ℃ Rod&wire,Plate&sheet Industry On stock
Nickel 55%+Cr +Ti (limitedspecification)
Nickel 55% +Hf +Ti Above 100C Ingot Ingot Updating
Mechanical Properties
Thickness UTS Elongation Upper Plateau Stress Active Af
mm σb MPa (min.) δ % (min) σload MPa (min.) ℃
0.1 ~ 0.3 1100 15 480
0.3 ~ 0.6 920 15 440 - 20 ~ 100 ℃
0.6 ~ 6.0 850 15 440
Tolerance
Nominal Thickness in mm Permissible Variation from Nominal in mm
6.00 ~ 1.00 ± 0.05
1.00 ~ 0.26 ± 0.03
0.26 ~ 0.15 ± 0.02
0.15 ~ 0.10 ± 0.01

Superelastic Nickel Titanium Alloy Sheet certificate

Application Scenarios

Superelastic Nickel Titanium Alloy Sheet usage

Medical Devices

Foil for interventional devices is one use for this sheet. Other uses include micro-implant parts and springs for minimally invasive tools. Very thin gauges are available. The material is biocompatible, and it springs back to its shape. Those traits suit parts that have to work reliably in or near the human body.

Bend the material of Superelastic Nickel Titanium Alloy Sheet and it comes back to a set shape. Cyclic loading makes it do that again and again. Some parts depend on this. Stainless steel foil can fatigue in those parts, and titanium sheet may not return enough elastic recovery.

Industrial and Precision Engineering

In industrial settings, this nickel titanium alloy sheet is used for thermal-actuated components, sensor springs, microswitches, and flexible aerospace parts. When the material crosses its programmed transformation temperature, it responds mechanically - enabling passive actuation without external drive systems.

The sheet can be cut and stamped to produce micro-components directly from stock, which reduces secondary processing steps in precision part production.

Why Work With Baoji Hanz

In-House Manufacturing

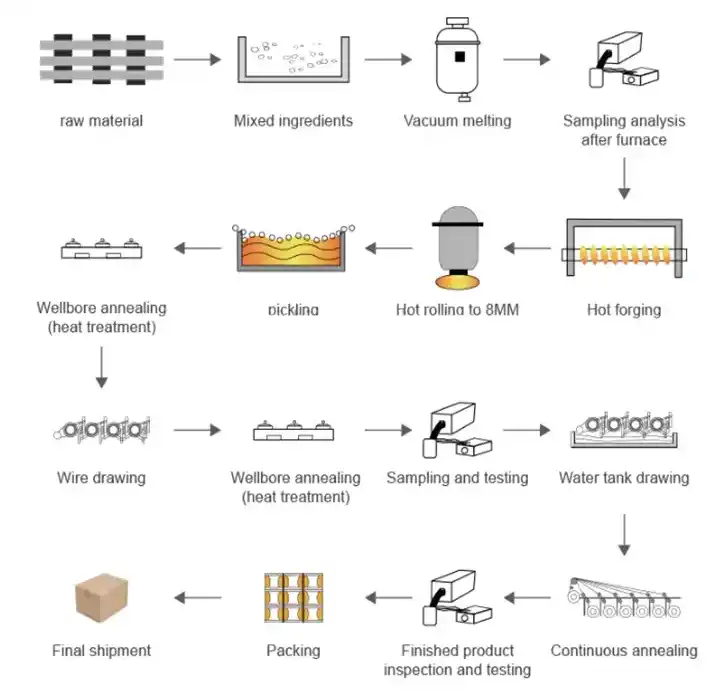

Vacuum melting happens in-house. So do cold rolling and the final heat treatment. One shop runs all three steps. That keeps the chemical composition steady, and phase-transformation behavior repeats from batch to batch.

Specification Flexibility

Per order you can set the thickness and the Af temperature. Packaging is yours to specify too. Surface finish comes pickled, bright polished, or ground. Raw sheet is available, and so are formed parts. Prototype quantities are no problem, and neither are larger production runs.

Batch-Level Quality Documentation

Every batch goes through chemical composition analysis. We also test mechanical properties and measure the DSC phase-transformation temperature. Need the test reports? Just ask. They give you traceability for procurement and engineering review.

One Supplier for Medical and Industrial Supply

Both medical-grade and industrial-grade material are supplied from the same manufacturer. MOQ starts from 1 kg, with lead times of 15–30 working days and export packaging included.

Technical Support

Baoji Hanz's engineering team provides guidance on Superelastic Nickel Titanium Alloy Sheet material selection and processing from initial inquiry through production. The company has been operating in the Baoji Titanium Valley Nonferrous Metals Base since 2017, with focused work in nitinol and nickel titanium materials.

Superelastic Nickel Titanium Alloy Sheet production

Superelastic Nickel Titanium Alloy Sheet equipment

Superelastic Nickel Titanium Alloy Sheet

shipping nitinol sheet




payment method nitinol sheet

Frequently Asked Questions About Superelastic Nickel Titanium Alloy Sheet

Q: What is the minimum thickness available?

A: The minimum thickness is 0.03 mm, with a dimensional tolerance as tight as ±0.003 mm. Thicknesses up to 1 mm are available and customizable.

Q: Can the Af temperature be specified?

A: Yes. The Af transformation temperature can be adjusted within the range of –20°C to +100°C to match the thermal conditions of your application.

Q: Which standards does this product meet?

A: Two standards apply to This product: ASTM F2063-18 and GB 24627-2009. Chemical composition is covered by them. So are mechanical properties and phase-transformation performance.

Q: Can this material be used in medical devices?

A: The alloy has demonstrated biocompatibility and corrosion resistance consistent with medical device requirements. Medical-grade product is available. Buyers should conduct their own device-level qualification as required by applicable regulations.

Q: What surface finishes are offered?

A: Pickled, bright polished, and ground finishes are available. The appropriate finish can be selected based on your component's functional or assembly requirements.

Q: What are the MOQ and lead time?

A: MOQ starts from 1 kg. Standard lead time is 15–30 working days depending on specification and order volume. Export packaging and flexible shipping options are available for international orders.

Q: Can I request sample material before placing a production order?

A: Please contact us directly to discuss sample availability and specifications for your evaluation.

Contact Us

Send your specifications or inquiries for Superelastic Nickel Titanium Alloy Sheet to baojihanz-niti@hanztech.cn. Baoji Hanz Metal Material Co., Ltd. - your direct source for nickel titanium alloy sheet.
