Product Description

Products Description of Nitinol Niti Sma Rod

Nitinol niti sma rod are composed of a kind of nickel-titanium shape memory alloy material. It is a special alloy that can automatically return to its original shape after plastic deformation at a certain temperature. Its corrosion resistance is superior to that of the best medical stainless steel, and it is an extremely excellent functional material.
In addition to its unique shape memory function, memory alloy also features wear resistance, corrosion resistance, high damping and super elasticity.

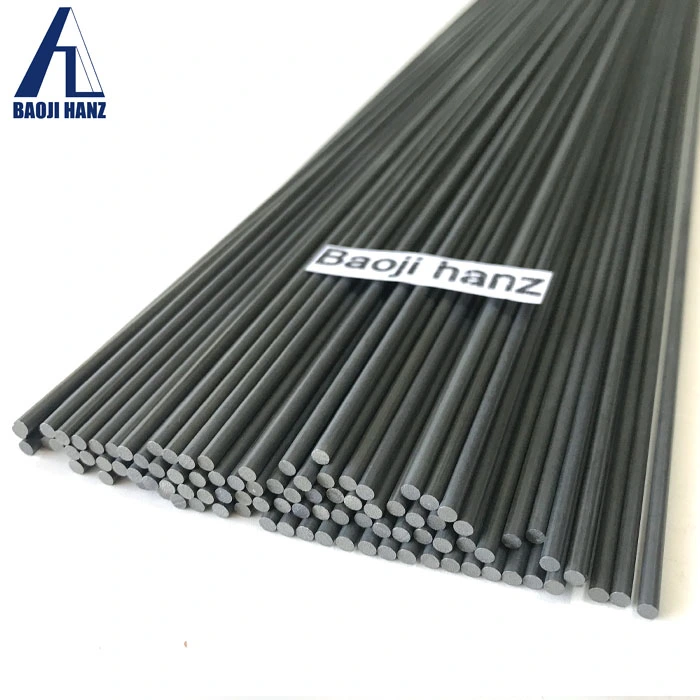

nitinol niti sma rod

Barameter of Nitinol Niti Sma Rod

Name	nitinol niti sma rod
Category	Shape Memory Alloy
Alloys	NiTi, Cu NiTi, Fe NiTi
Expansion rate	more than 20%
Types	Shape Memory Available
Surface Treatment	Polished, Grinded ,Pickling
MOQ	2KG
Condition	As Cold-Worked, Straight Strain Annealed and Shape Set Annealed.

Mechanical Properties
Dimension mm	UTS σb MPa (min.)	Elongation δ % (min)	Upper Plateau Stress σload MPa (min.)	Active Af ºC
≥ 6.0	850	15	440	- 20 ~ 100
Tolerance
Nominal Diameter in mm		Permissible Variation from Nominal in mm
6.00 ~ 10.0		± 0.05
10.0 ~ 30.0		± 0.10
≥ 30.0		± 0.30

Quick details

Name	Grade	Transfermation temperature AF	Form	Standard
Shape memory nitinol alloy	Ti-Ni-01	20ºC~40ºC	wire, bar, plate, tube	customer specified or industry standard
Shape memory nitinol alloy	Ti-Ni-02	45ºC~90ºC
Superelastic nitinol alloy	TiNi-SS	-5ºC~5ºC
Low temperature superelastic nitinol alloy	TN3	-5ºC~-15ºC
Low temperature superelastic nitinol alloy	TNC	-20ºC~-30ºC
Medical Nitinol alloy	TiNi-SS	33+/-3ºC		ASTM F2063
Narrow Hysteresis nitinol alloy	Ti-Ni-Cu	As-Ms≤ 5ºC	wire, bar
Wide Hysteresis nitinol alloy	Ti-Ni-Fe	As-Ms≤150ºC

Application

1. Machinery: Robots, thermal valves, accessories.
2. Electronics: Automatic regulators, fire alarms, thermostatic switches, circuit connectors
3. Medical: Dental fixtures
4. Energy Development: Solar panels.
5. Automatic sail switch for transporting vehicle radiators.
6. Frame.
