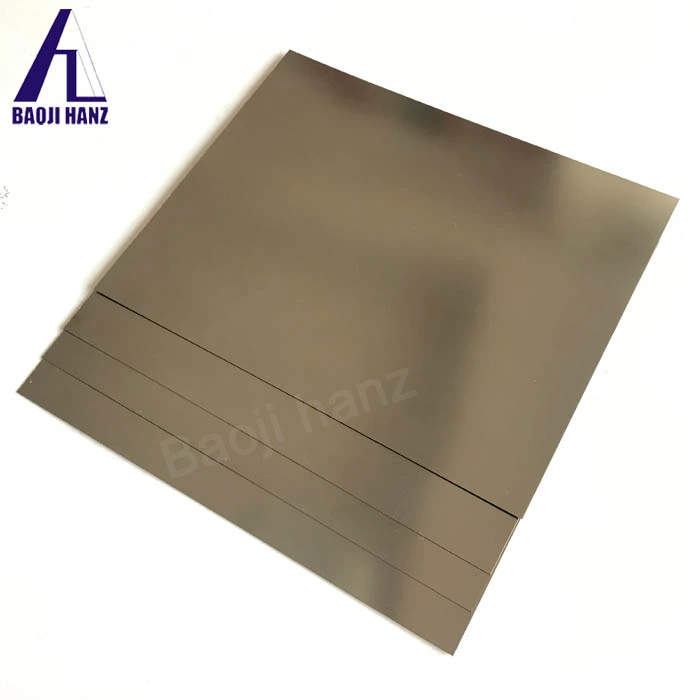

Nitinol sheet
Certification: ISO 9001:2008
Model Number: nitinol sheet
Minimum Order Quantity: 1 piece if stocked
Price: $150-300/ piece
Delivery Time: 5-25 workdays after payment ocnfirmed
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 600 Kilogram/Kilograms per Month
Nitinol Sheet for Precision Applications - Ultra-Thin, Custom Af, Full-Process Manufacturing
Baoji Hanz Metal Material Co., Ltd. makes Nitinol sheet at our Baoji Titanium Valley plant. Every step runs in our own factory, from vacuum melting to final heat treatment. The sheet meets GB 24627-2009 and ASTM F2063-18 standards. Thickness runs from 0.03 to 1 mm. Ni content is 54.5–57.0 wt%, and density is 6.45 g/cm³. We can supply 600 kg per month. MOQ starts at 1 kg.
Characteristics
Shape memory and superelasticity are the two main working properties of this nickel-titanium alloy. After large deformation, the material returns to its original shape. This action repeats under cyclic loading. That makes it useful for spring parts and mechanisms that move with heat.
Thickness tolerance sits between ±0.003 and ±0.02 mm, and the spec decides where in that range. Three surface finishes are on offer. They are pickled, bright polished and ground. Each one suits a different job, since downstream processing needs vary.
In biological settings, and in industrial ones too, this alloy resists corrosion. Standard grades satisfy the biocompatibility rules that apply to minimally invasive devices and to implant-related components. Those rules come from the standards referenced here.



Technical Specifications
| Product name | Nitinol sheet |
| Material | nitinol alloy, nickel titanium alloy, superelastic niti |
| Af range | -10~100 degree |
| Thickness | 0.1mm min |
| Width & length | 300mm * 800mm max, 100*100mm min |
| Note: customized width & length are available, please send us required dimension and quantity | |
Application Scenarios
In the medical field, this thin product goes into interventional device components. It also serves as micro-implant accessories and as spring elements in minimally invasive surgical instruments. Two things matter for these uses. The material recovers its shape after deformation. It also meets biocompatibility standards.
In industrial settings, the alloy is used in thermal-actuated components, sensor springs, microswitches, and flexible structural elements. When temperature crosses the programmed Af point, the material undergoes a phase transformation that generates mechanical motion - useful in compact actuator designs.
The sheet can be cut or stamped. Either route lets you turn out micro-components with complex profiles. Shops running high-mix, low-volume work get the most out of it.
Customization and Supply Flexibility
Thickness is your call, anywhere from 0.03 to 1 mm. Af transformation temperature can be adjusted too, between -20°C and 100°C. You also choose the surface finish and the packaging method. Both then line up with how you process the material and how you ship it.
Products come in both medical grade and industrial grade. Runs can be set up for prototype quantities, or for continuous monthly supply of up to 600 kg. Once payment is confirmed, lead time runs 15 to 30 working days. Export shipping support is available as well.

Quality Control and Documentation for Nitinol sheet
Every batch gets checked. Chemical composition and mechanical properties are tested. DSC phase-transformation temperature gets measured too. The whole process, from vacuum melting to cold rolling and on to the final heat treatment, runs under GB 24627-2009 and ASTM F2063-18.
Ask us and the Nitinol sheet test reports are on their way. Chemical composition, mechanical properties and DSC phase-transformation results are all in there. Put them to work for your engineering qualification. They work for your procurement documentation too.
Why Choose Us
- Full-process in-house manufacturing: vacuum melting through heat treatment, with traceability kept at each stage
- Dual-standard compliance: GB 24627-2009 and ASTM F2063-18 covering composition and transformation performance
- Customization options: you can specify thickness, Af temperature, and surface finish. Formed parts are also available to your specification
- Batch inspection documentation: DSC, mechanical, and chemical test reports provided per shipment
- Medical and industrial grades: both available with low MOQ and defined lead times

FAQ
Q: What is the minimum order quantity for your this product?
A: MOQ is 1 kg, or 1 piece for stocked items. Small trial orders are accepted to support your qualification process.
Q: Can the Af transformation temperature be customized?
A: Yes. Af temperature can be set anywhere between -20°C and 100°C. What you choose depends on the thermal needs of your application.
Q: What surface conditions can I get?
A: Pickled, bright polished, and ground surface finishes are available. Selection depends on your downstream processing and appearance requirements.
Q: Do you supply both medical-grade and industrial-grade products?
A: Yes. Both grades are available. Medical-grade material is produced in accordance with the biocompatibility requirements referenced in the applicable standards.
Q: What standards does the product meet?
A: Two standards set the rules every product has to meet. One is GB 24627-2009. The other is ASTM F2063-18. They cover chemical composition and phase-transformation performance.
Q: What test reports can you provide?
A: Batch reports covering chemical composition, mechanical properties, and DSC phase-transformation temperature are available upon request.
Contact Us
Got Nitinol sheet specifications? Send them to hztech05@hanztech.cn. You can send questions there too. Our team will look over what you need.
