Nitinol tube

1.Nitinol tube
2.AF range:-20-80 degree ℃
3.Outer diameter min:0.2mm/ wall thickness 0.05mmmin /length500-1000mm
4.Surface: polished/ burned blue
5.MOQ: 3M
6.Lead time: 3 weeks

Nitinol Tube for Medical & Industrial Use - Precision Seamless Solutions from Baoji Hanz

Baoji Hanz Metal Material Co., Ltd. produces seam-free Nitinol tube. At 0.2 mm the outer diameter begins. Wall thickness starts from 0.05 mm. Lengths reach 2000 mm. Between -20°C and +100°C sits the Af transformation temperature. Superelastic grades work in that window. Shape memory grades do too. Nothing leaves the facility. Vacuum melting, plus every step through final heat treatment, stays in house. Dimensions hold steady. Phase-transformation behavior holds steady as well. ASTM F2633-19 and GB24627-2009 are both met by these tubes. MOQ stands at 10 pcs. Expect 25–35 working days for lead time.

Why Conventional Metal Tubes Fall Short

Standard metal tubes kink and break when bending stress keeps repeating. Heat alone will not bring their shape back. Minimally invasive catheters, stent delivery systems, and industrial actuator parts run into real safety and performance trouble because of it.

The material itself takes care of these problems once This product goes in. Its bore is hollow. Kinking gets resisted by superelasticity. A form you pick can be locked in with shape memory. One geometry holds all of it, with no weld seam and no leaks. Stainless steel and ordinary titanium tubing crack from fatigue. That failure mode does not turn up here.

Technical Specifications

1.This product
2.Standards: ASTM F2603

3.High-precision

4.Deep hole working

5.Surface: polished. Inside Ra is ≤1.2μm; outside Ra is ≤0.6μm.

6.Outside diameter: Min0.2mm to Max30mm

7.Thickness: ≥ 0.05mm(machined )

8.Length: 500-1000mm (outside diameter and thickness set the figure)
9.Typical Applications: one use is oil well logging shells. Sports equipment, power units, automotive components, marine corrosion settings, and chemical plants are other uses.
10.Technique: Welding or a seam-free tube.

Characteristics

Shape memory and superelasticity, both at once. A single piece of metal delivers the two.

Bend that tube far and it still springs back. You get no kink left behind. Flexible catheter shafts are one place it fits well. Guidewire liners are another. So are actuator housings. Put stainless steel or titanium in the same spot and the cycles would pile up until it fatigued.

Wall thickness stays even, so the dimensions hold.

OD tolerance holds at ±0.02–±0.05 mm. Wall thickness stays steady. The bore keeps its coaxial position. Reliable fluid flow follows from that. Structural strength does too. In parts where a tiny dimensional shift changes the way the part works, this counts.

Fatigue and corrosion resistance.

Cyclic loading takes a toll on parts. So do corrosive environments. The nickel-titanium alloy composition is built to stand up to both. For medical use, the material also meets the biocompatibility requirements set out in ASTM F2633-19.

Adjustable Af transformation temperature.

The Af temperature can be set anywhere from -20°C to +100°C. Setting happens while the alloy is formulated and heat treated. That way it matches the actuation you need.

Secondary processing compatibility.

These tubes go through several downstream steps. Cutting and flaring are two of them. Necking and slotting are the others. Engineering teams can shape the part their own way. There is no need to buy pre-processed parts from another supplier.

Applications

Medical devices make up the biggest area of use. Catheters are one place where Nitinol tube ends up. Biopsy needles use the same tube. So do dental instruments and endoscopic components. Stent delivery systems and bone cement delivery devices rely on it too. ASTM F2633-19 sets the kink resistance and biocompatibility. Both meet what minimally invasive procedures need.

Industrial applications cover sensor fasteners. Pipe joint couplings are another use. So do memory alloy rings. Heat can trigger shape recovery in these settings. That recovery can power self-actuating assembly or sealing mechanisms. Fewer mechanical parts are needed as a result.

Manufacturing and Quality of Nitinol tube

In-house full-process control.

All the production steps stay under one roof at Baoji Hanz. Vacuum melting comes first. Cold drawing follows it. Then the final heat treatment. No more jumping from one supplier to another. The chemical composition holds steady, batch after batch. Phase-transformation performance does the same. The work meets GB24627-2009 and ASTM F2633-19.

Customization scope.

You can specify the outer diameter and the wall thickness. Length, Af temperature, surface finish, and packaging are also yours to choose. Raw tubes ship as they are. Formed parts come finished. Both work for a single prototype or for full production runs.

Batch inspection and documentation.

Every shipment gets tested. The checks cover chemical composition and mechanical properties. DSC phase-transformation temperature is measured too. A test report goes out with each batch. Ask for it and we will send it, whether you need it for incoming inspection or for regulatory paperwork.

Packaging

Tubes ship in flat-laid packaging. Protection against shock and moisture comes built in. Cushioning on the inside keeps the Nitinol tube surface free of scratches. Parts also stay straight instead of bending on the way. Export packaging can be added if you need it. Shipping gets arranged around what each order calls for.

product-783-783

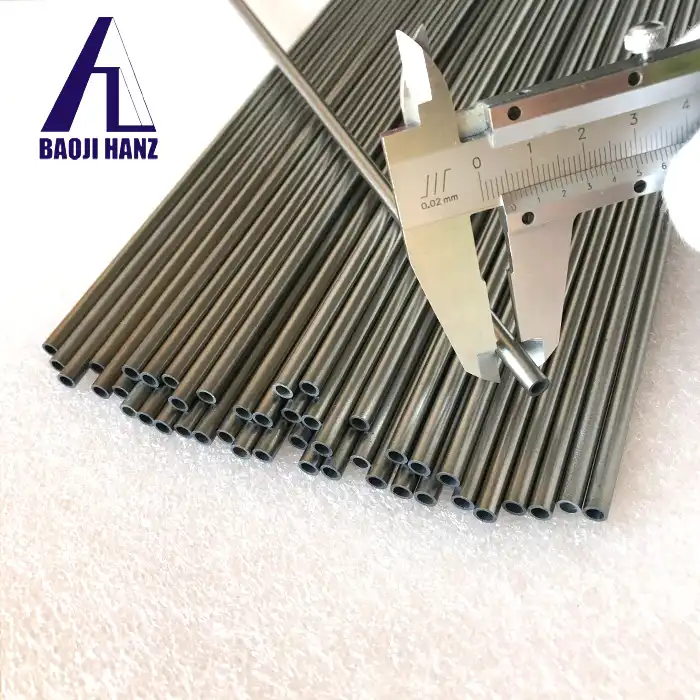

Nitino stent tube
product-783-783

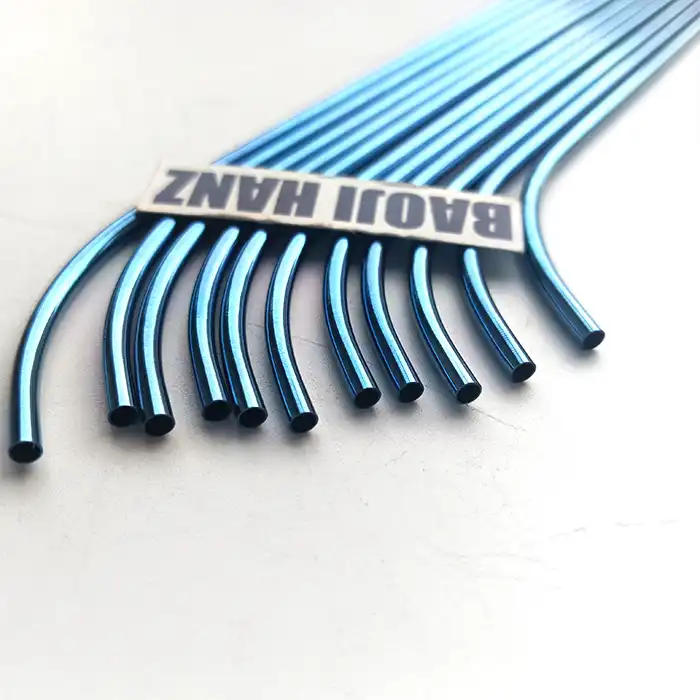

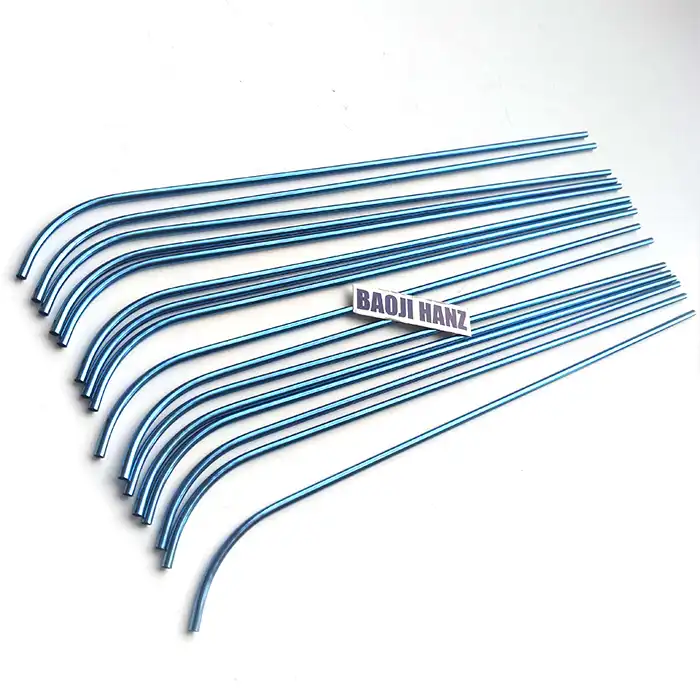

blue nitinol bended tube
product-783-783

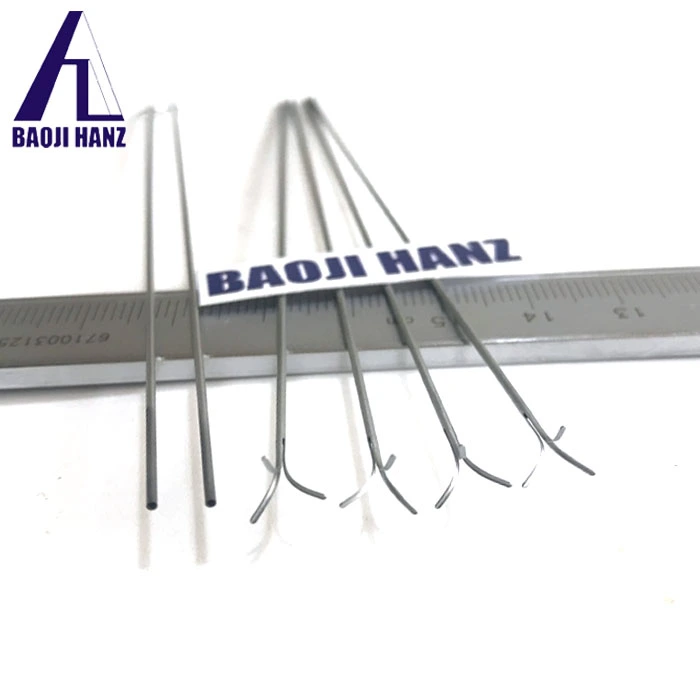

nitinol guide tube
product-783-783
Nitinol thin tube

FAQ

Q: What is the minimum order quantity?

A: The MOQ is 10 pcs for finished tube products. For raw tube material, the minimum is 3 meters.

Q: Can the Af transformation temperature be customized?

A: Yes. The working range is -20°C to +100°C. We set that range when we formulated the alloy and during heat treatment. So it lines up with what you need.

Q: What surface finishes are available?

A: The outer surface can be supplied in oxidized state, ground state, polished, or burned blue finish. The inner surface is available in clean or oxidized state.

Q: Are test reports provided?

A: Yes. Batch-by-batch testing covers chemical composition, mechanical properties, and DSC phase-transformation temperature. Reports are provided upon request.

Q: What standards apply?

A: Both standards are met by our products: ASTM F2633-19 and GB24627-2009. Chemical composition and mechanical properties are covered by those standards. Dimensional requirements for medical and industrial grades are also set by them.

Q: What secondary processing is supported?

A: Cutting, flaring, necking, and slotting are available. Finished formed parts can be produced by the in-house team if raw tube alone does not meet your design requirements.

Contact Us

For technical inquiries, sample requests, or custom specifications for a Nitinol tube, contact us at baojihanz-niti@hanztech.cn. We review all incoming requests and respond with relevant product and pricing information.
