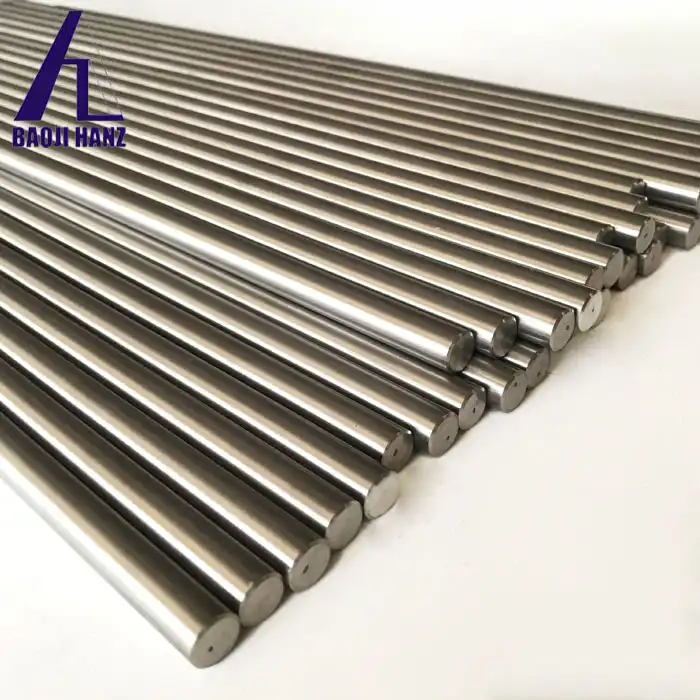

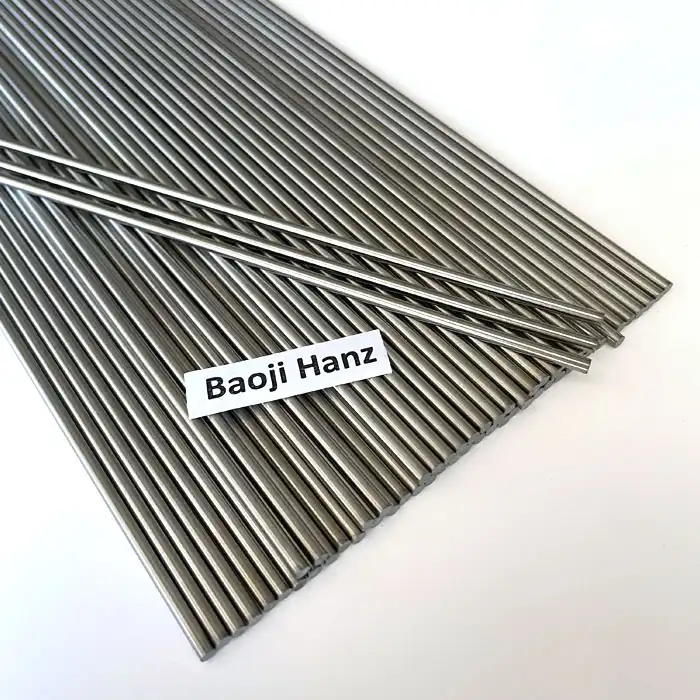

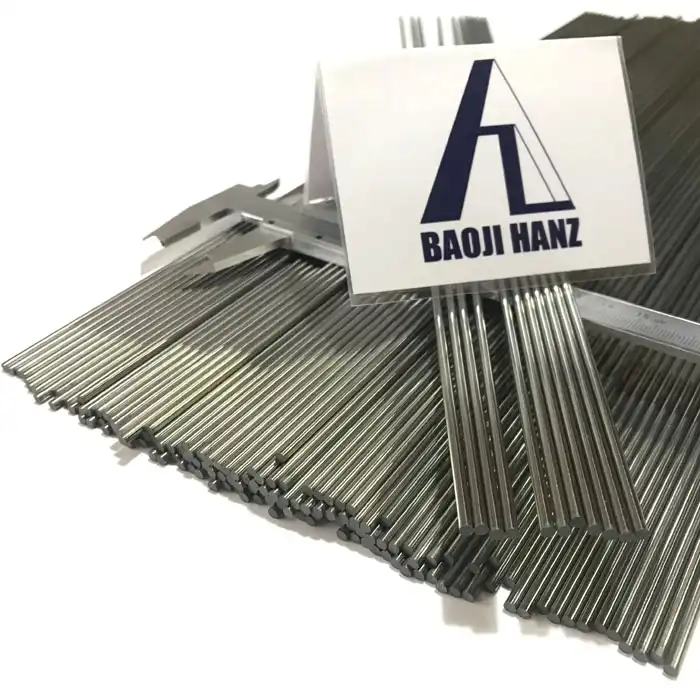

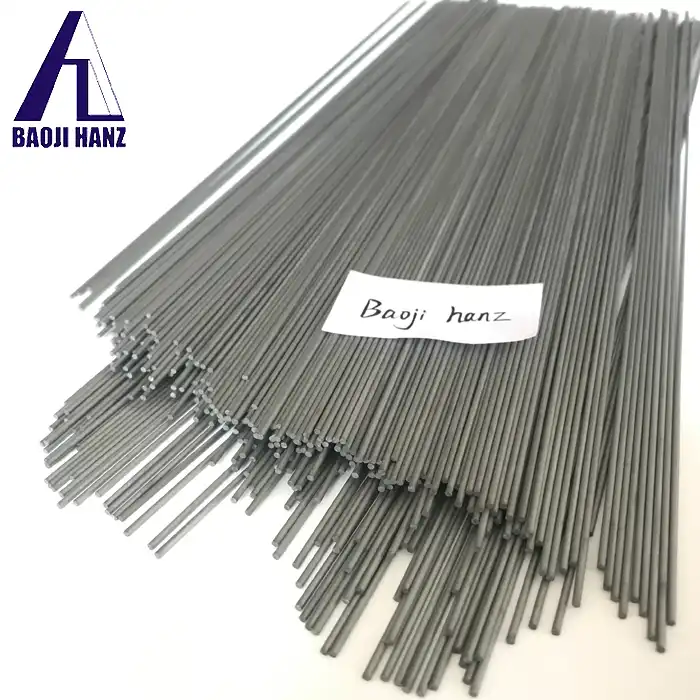

medical nitinol rod

1.Material:nickel titanium alloy 2.Density:6.5g/cm3 3.Application:medical and industry 4.MOQ:1pc

Medical Nitinol Rod for Implant & Surgical Applications

Baoji Hanz Metal Material Co., Ltd. makes the medical nitinol rod from a nickel-titanium alloy. Nickel takes up 54.5–57.0 wt%. Titanium makes up the rest. Density sits at 6.45 g/cm³. Each rod is checked against GB 24627-2009 and ASTM F2063-18. Tensile strength lands between 850 and 1900 MPa. Elongation runs 10–20%. Diameters start at 3.0 mm and reach 50 mm. Lengths go up to 3000 mm. Those numbers suit orthopedic implant machining. Surgical instrument fabrication works with them as well. Precision structural components get the dimensions they need too.

Technical Specifications

Astmf2063 Superelastic Nitinol Rod factory

Astmf2063 Superelastic Nitinol Rod supplier

Astmf2063 Superelastic Nitinol Rod for sale

Astmf2063 Superelastic Nitinol Rod wholesale

Place of Origin Shaanxi, China
Brand Name Baoji hanz
Length 2000mm
Diameter 0.05~3mm
Color bright
AF -20℃~100℃
Strength 1300 Mpa
surface Mechanical polishing
Materials Nitinol alloy
Density 6.45 gm/cm3
Ti (Min) 45%
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Feature Superelastic
Supply Status Annealed
Standard ASTM F2063-18
Application medical, industry

Material Properties and Performance

Light structural parts work fine inside that 850–1900 MPa band. Heavy-load implants hold up there as well. Buyers choose the delivery condition themselves. Cold-worked rod is one option. Strain-annealed rod and shape-set annealed rod are the other two. Which one a buyer takes depends on the machining steps further down the line. What the finished part has to do matters just as much.

Af transformation temperature is adjustable from -20°C to 100°C. Engineers use that window to control how sensor bases and thermal-driven structural parts actuate. GB 24627-2009 and ASTM F2063-18 cover the chemical composition. Phase-transformation behaviour falls under the same two standards. Reports go out with every batch. Each one lists composition and mechanical properties. DSC phase-transformation temperature is in there as well. Ask for the reports and they ship with your order.

Turning, milling, and other common machining processes all work with this bar. Surface conditions can be supplied to match the end use or the needs of intermediate processing. Options include black scale, centerless ground, pickled, and polished.

Applications

Medical

Shops machine this bar stock into ultrasonic scalpel blanks. Orthopedic implant bars and structural substrates for surgical instruments come from it too. The medical nitinol rod meets the composition limits of ASTM F2063-18. That makes it a usable starting material for implant parts that get precision machined. Bear in mind this is bar stock for machining. It is not meant for direct implant use without more processing and qualification.

Industrial

Thermal-actuated stress bars, tooling structural parts, sensor bases, and memory-structure components all make use of the bar in industrial settings. Customizing the Af temperature lets engineers design actuation mechanisms around set thermal thresholds.

Customization

Need something different? Specs can be changed to fit what your procurement team or engineers ask for:

  • Diameter: 3.0–50 mm standard range; other diameters available upon request
  • Length: up to 3000 mm, or fixed-length cuts
  • Af transformation temperature: -20°C to 100°C

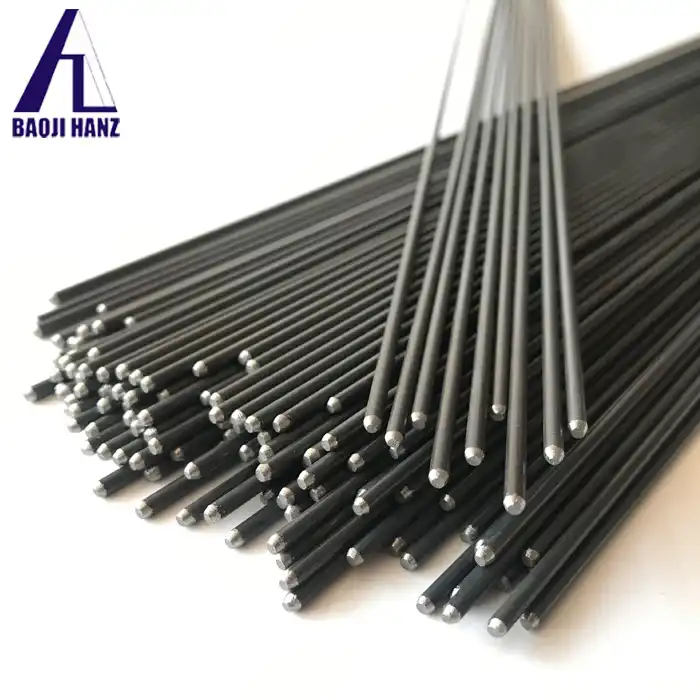

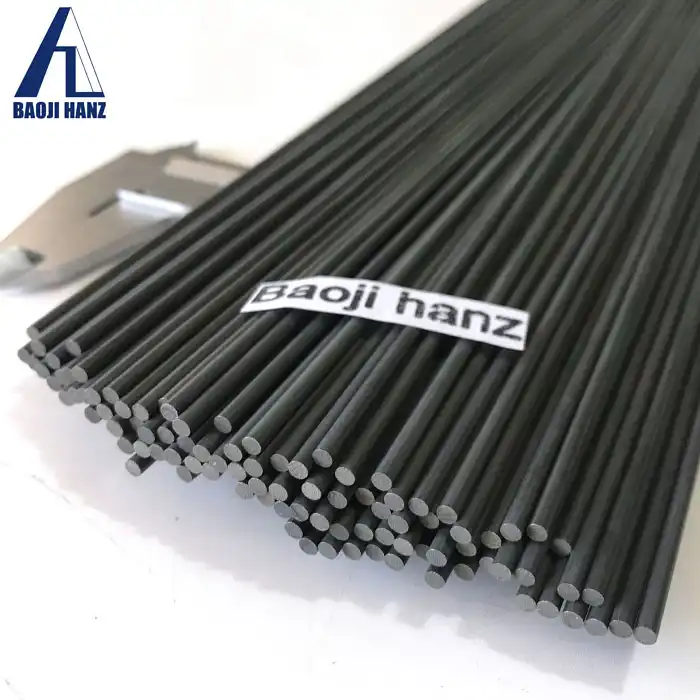

  • Surface finish: black scale, centerless ground, pickled, or polished
  • Grade: medical-grade or industrial-grade

You can start at 1 kg. That covers prototype sampling and small production runs, and volume orders work too.

Supply and Quality Documentation for medical nitinol rod

We run the whole production process ourselves, from vacuum melting through to the final heat treatment. Checks on chemical composition and phase-transformation performance follow GB 24627-2009 and ASTM F2063-18. That holds true batch after batch.

Each batch gets inspected. Chemical composition is checked, and mechanical properties are tested too. DSC phase-transformation temperature is measured the same way. Test reports come on request. Supplier qualification and documentation requirements are backed up by them.

Both medical-grade and industrial-grade bars of medical nitinol rod are available, with an MOQ of 1 kg and a standard lead time of 15–30 working days.

Chemical element Af range Available production Line Usage Sample
Nickel 55% Titanium 45% 0℃to 100℃ Rod&wire,Plate&sheet,Strip&foil Medical&Industry On stock (various specification)
Nickel 55% +V +Ti
Nickel 55% +Fe +Ti Subzero 30℃ to -5 ℃ Rod&wire,Plate&sheet Industry On stock
Nickel 55%+Cr +Ti (limitedspecification)
Nickel 55% +Hf +Ti Above 100C Ingot Ingot Updating

nitinol technology

mode of transportation

FAQ

Q: Which standards does this nitinol bar meet?

A: It meets GB 24627-2009 and ASTM F2063-18. Rules for chemical composition and phase-transformation performance of nickel-titanium shape memory alloys are set by both of these standards.

Q: Can I specify a custom Af transformation temperature?

A: Yes. Anywhere from -20°C to 100°C works for the Af temperature. What your actuation needs are decides the exact figure.

Q: What surface finishes are available?

A: Black scale, centerless ground, pickled, or polished. Which one fits comes down to how the part gets used, or to the machining you do after it.

Q: What is the minimum order quantity?

A: 1 kg is the MOQ. Prototype sampling fits inside that, and so do small production runs.

Q: What test reports are provided?

A: Batch-by-batch test reports covering chemical composition, mechanical properties, and DSC phase-transformation temperature are available upon request.

Q: Is this bar ready for direct implant use?

A: This is bar stock for machining into implants and surgical instruments. It is not supplied as a finished implant. Further processing and regulatory qualification by the end manufacturer are required before implant use.
