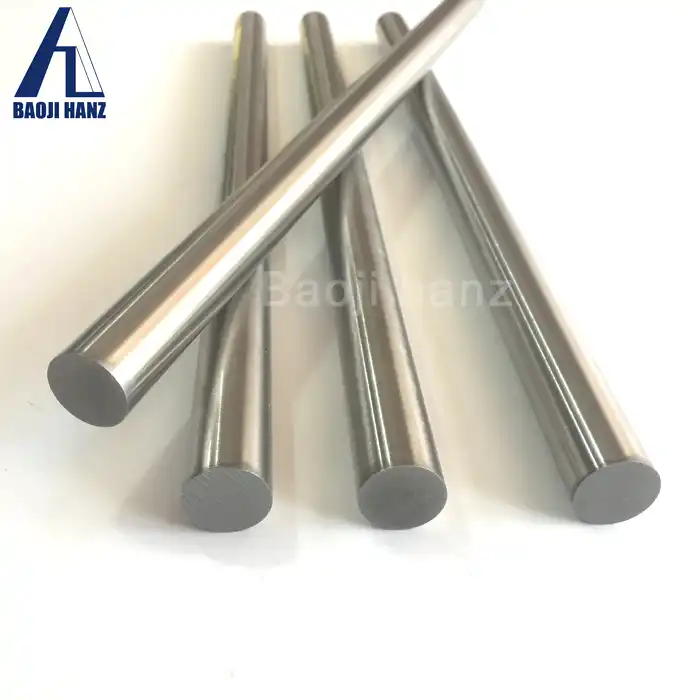

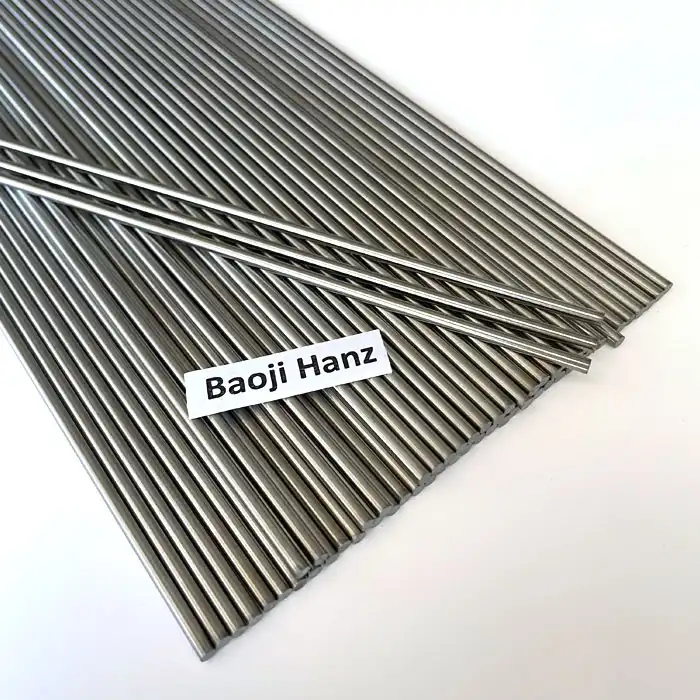

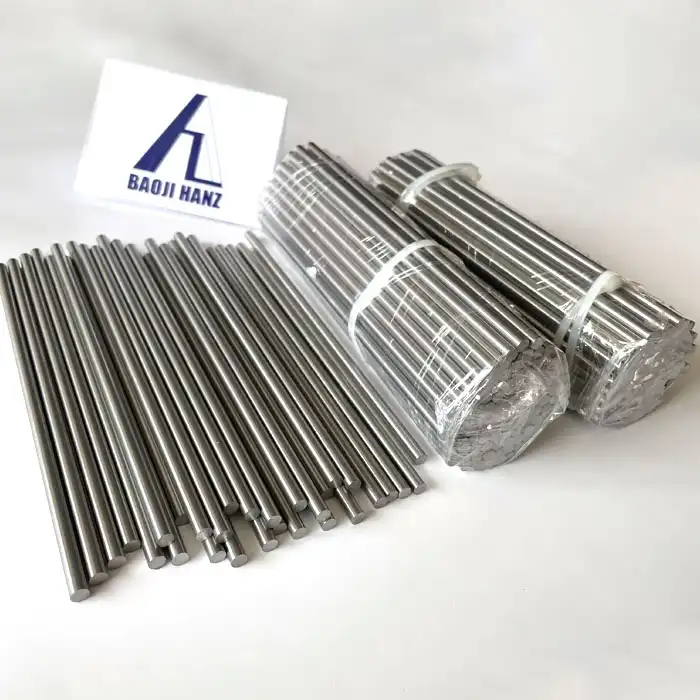

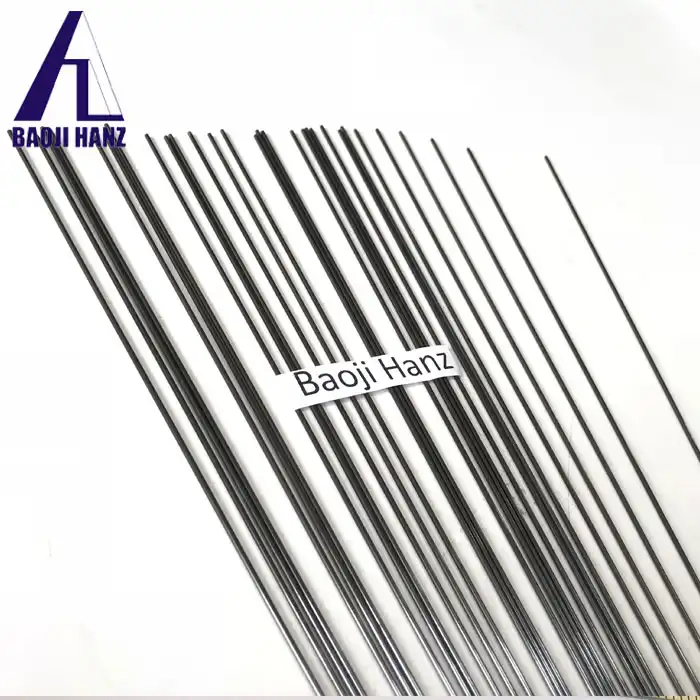

Nitinol rod
Af -10 C ~100 C
ASTM F2063
Ni:Ti 50:50
Size : Dia 0.1mm to 3mm, length can be customized
Surface: polished, black
Application: medical, industry, fishing, construction
MOQ 1 kg
Price based on size and quantity, please contact us
Nitinol Rod for Medical and Industrial Use: GB 24627-2009 / ASTM F2063-18 Bars with Custom Size and Af
Baoji Hanz Metal Material Co., Ltd. supplies Nitinol alloy bars made to GB 24627-2009 / ASTM F2063-18. Each bar contains Ni 54.5–57.0 wt%, with Ti as the balance. Diameters range from 3.0 to 50 mm, the fixed length is 1000 mm, and the maximum length is 3000 mm. Af ranges from 20℃ to 100℃. Orders start at 1 kg, with a lead time of 15–30 working days. Size, Af, packaging, and transport method can be customized for medical and industrial projects. Test reports are available on request. We also supply the Nitinol rod in custom sizes to suit your drawing.
What Is Rod?
The rod is a solid bar made from nickel-titanium alloy, which is a nearly equiatomic intermetallic compound. Medical grades usually follow ASTM F2063. The alloy behaves this way because it changes phase reversibly between high-temperature austenite and low-temperature martensite.
This phase change gives the alloy two working modes. In superelastic mode, the bar can take large strain and return to its shape when the load is removed. In shape memory mode, it returns to a pre-set shape when heated. Which mode applies depends mainly on Af.
Specifications
Review the core data below before you send an inquiry.
| Product name | Nitinol rod |
| Model number | nitinol bar, nitinol rod, niti bar, niti rod |
| Grade | Ti-Ni |
| Application | fishing, medical, industry, construction |
| Ti(min) | 45% |
| Processing | bending, welding, decoiling, cutting, punching |
| Shape | round bar, cylinder, ingot |
| Feature | superelastic, high strength, shape memory |
| Surface | polished, pickled, black |
| Standard | ASTM F2063 |
| Density | 6.45g/cm3 |
If a parameter is not listed above, it was not specified in the data you supplied. Please check with us before ordering.
Key Properties and Performance
Af sets how the bar acts at the temperature where it is used. For superelastic grades, Af is usually chosen below the service temperature, so the bar springs back after loading. Shape memory grades have a higher Af and keep a deformed shape until they are heated above their transformation temperature.
Under load, Nitinol has a stress-strain plateau: it takes a large reversible strain at almost constant stress. This is why it resists repeated bending and kinking. The listed tensile strength is 850–1900 MPa and elongation is 10–20%. When you inquire, tell us your target values so we can confirm the matching delivery condition and Af.
Medical and Industrial Applications
In medical work, these bars are used as blanks for ultrasonic scalpels, as bars for orthopedic implants, and as structural substrates in surgical instruments. Nitinol has a lower elastic modulus than stiff metal implants, which may help reduce stress shielding. It can also bend during minimally invasive delivery and return to its shape once it is in place.
In industry, the bars are used as heat-actuated stress bars, structural parts in tooling, sensor bases and memory-structure components, where they can also reposition and fix parts.
Whichever field you work in, check the grade, Af and surface condition with your engineer before you choose a Nitinol rod. Whether a rod suits a medical device also depends on your device requirements and the regulatory pathway.
Delivery Condition and Surface Finish
Delivery conditions can be cold-worked, straight-bar strain-annealed, or shape-set annealed. Surface choices include black scale (oxidized), centerless ground, pickled, and polished.
Black scale works for drawing. Medical parts and parts where fatigue is critical usually need ground or pickled surfaces, which remove micro-cracks and oxide layers.
Customization and Supply of Nitinol rod
Diameter, length, Af, packaging, and transport method can be customized. Size, Af transformation temperature, and surface finish can also be customized for raw material and finished formed parts. Hanz supplies both medical-grade and industrial-grade products.

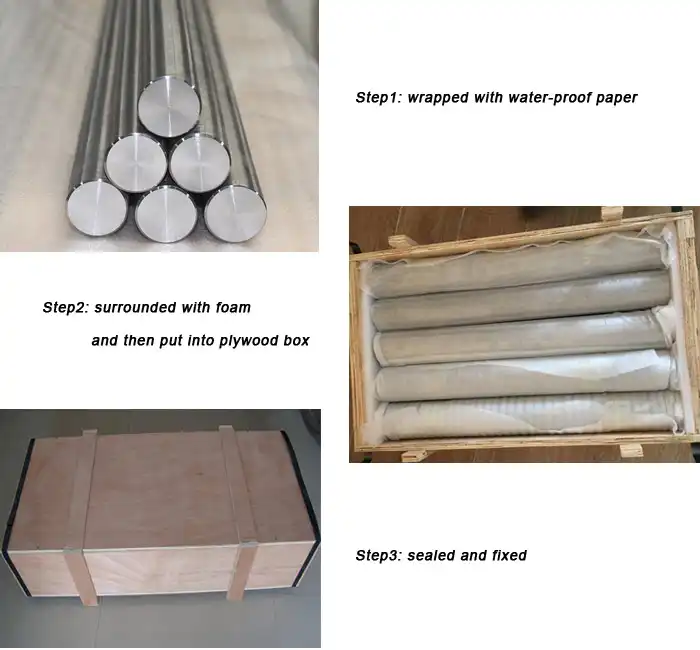

The minimum order for this product is 1 kg, and lead time is 15–30 working days. Bars are laid flat in shockproof, moisture-proof transport packaging and kept apart so they do not hit each other and damage the surface. We provide export support, and the engineering team can discuss what your application needs.
Quality Control and Manufacturer Background

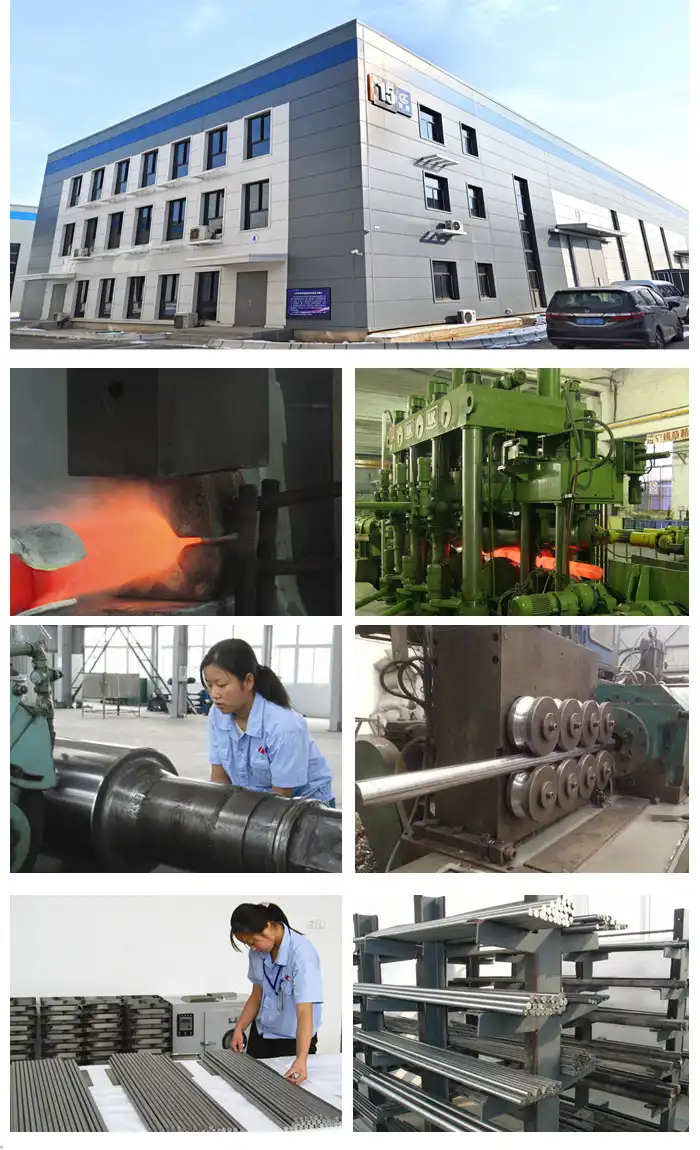

Hanz handles the whole process in-house, from vacuum melting to final heat treatment, in line with GB 24627-2009 / ASTM F2063-18. We test every batch for chemical composition, mechanical properties and DSC phase-transformation temperature, and test reports are available on request. ASTM F2063 also sets limits on carbon, oxygen and hydrogen, which are linked to fatigue failure caused by inclusions.
Baoji Hanz Metal Material Co., Ltd. was founded on November 15, 2017 in Baoji Titanium Valley Nonferrous Metals Base, China. The company works with Nitinol shape memory alloy, superelastic Nitinol alloy, Nitinol rod, nickel titanium alloy, industrial furnaces and customized mechanical equipment.
| Product | nitinol wire | nitinol bar |
| size | 0.025mm -5mm diameter | >5mm diameter |
| Surface treatment | Black, pickled, polished (dia>0.3mm) | black, pickled, polished |
| Forms | Straight wires, coiled, spooled | straight rods |
| Application | Dental braces, stents, fishing wire, springs, eyeglasses frames and etc | Dental braces, stent, fishing rod, springs and etc |
| Product | UTS Mpa [ ksi] | Elongation % | Active Af (°C) |
| TiNi-ss | 1274-1378 [ 180-200] | >10 | 0~18 |
| Low temperature superelastic nitinol alloy | 1241[180] | >10 | -20~-10 |
| Ti-Ni | 1241[180] | >10 | 14~20 |
| Superelastic nitinol alloy | 1103[160] | >10 | -10~5 |
|
|
|
| Nitinol rod Packing Details : After being tested,qualified products will be packed with soft paper inside wooden case outside or according to export package Delivery Details : 25-30 working days after order , The package of tungsten bar is very professional, careful and safety. |
We will choose the fastest ,cheapest and safest shipment way for you, such as Express, air transportation and sea transportation. Before delivery, the pictures of finished products ,packaging details and MTC will be send to our customer, When the customer satisfied with our product, We will promptly deliver goods. There is no deception, the pictures you see are consistent with the goods you receive. |
FAQ
Q: How do superelastic bars differ from shape memory bars?
A: It depends on Af. If Af is below the service temperature, the bar is superelastic, so it springs back after loading. If Af is above the service temperature, the bar is shape memory, so it stays deformed until you heat it above its transformation temperature.
Q: How should I machine the bar?
A: Nitinol work-hardens fast and wears tools down. Shops usually cut it with carbide tooling, EDM or laser cutting, and they use coolant to keep the heat down while cutting.
Q: Can I shape-set the bar myself?
A: Yes, it can be done, but the heat-treatment parameters have to match the alloy and its Af. We also supply shape-set annealed bars as a delivery condition. Tell us about your shape and Af, and we can talk it through.
Q: Does surface finish affect performance?
A: Yes. For medical or fatigue-critical parts, the surface usually needs to be centerless ground or pickled, because these processes remove micro-cracks and oxide layers.
Q: What tolerance applies to these bars?
A: Diameter tolerance is ±0.02 to ±0.035 mm.
Q: Can I order a small quantity with test reports?
A: Yes. The MOQ is 1 kg, and test reports are available on request.
