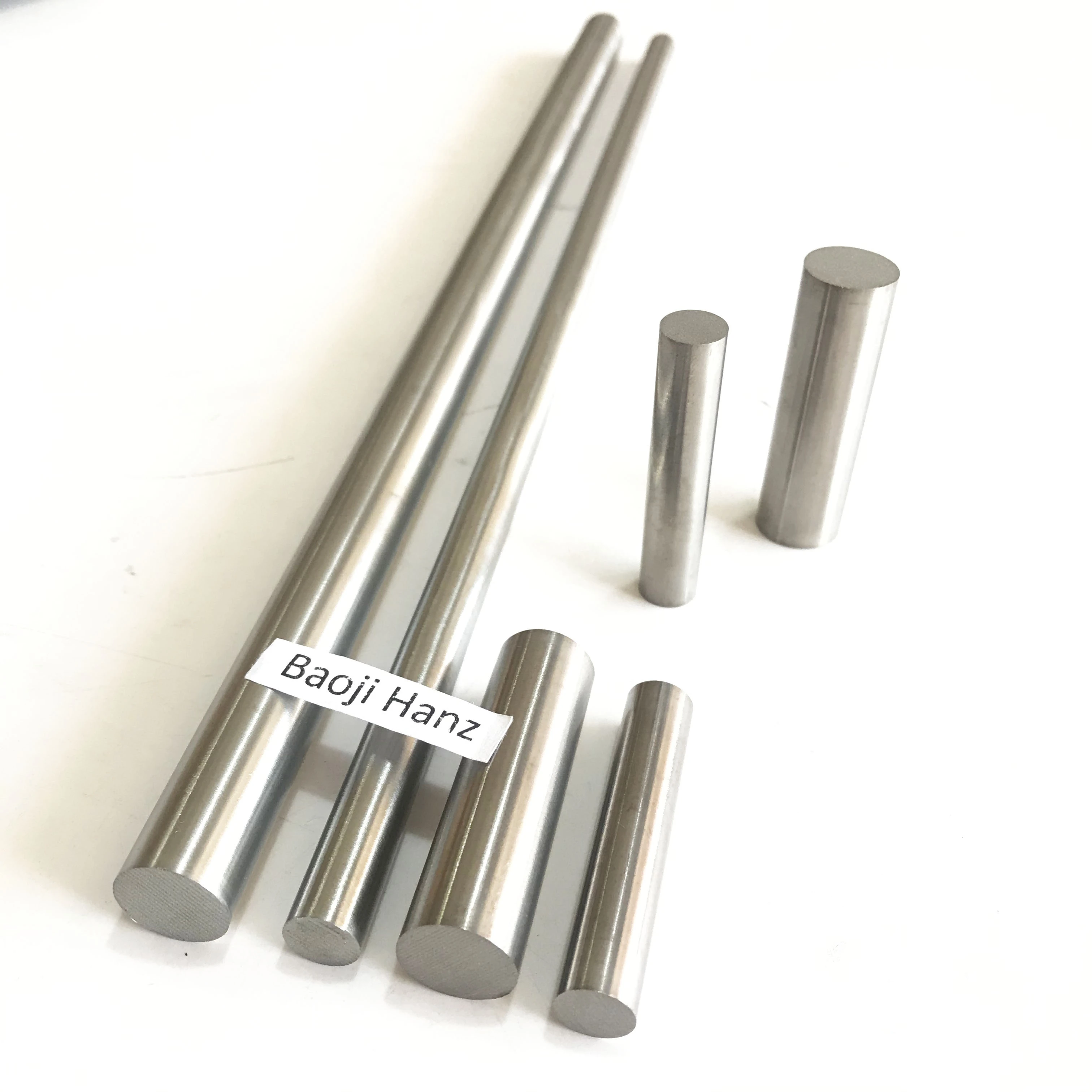

nitinol round bar

Material: NiTi alloy
Tensile strength: 850~1200MPa
Yield strength: 195 ~ 690 MPa
Elongation: 25 ~ 50%
Specification: above 3mm in diameter
Standard: ASTM F2063
Phase transition temperature:-100℃ ~ 100℃
MOQ:3pcs
Application: stress bar, thermal drive spring, temperature control element, communication antenna, spectacle frame, bra bracket, etc.

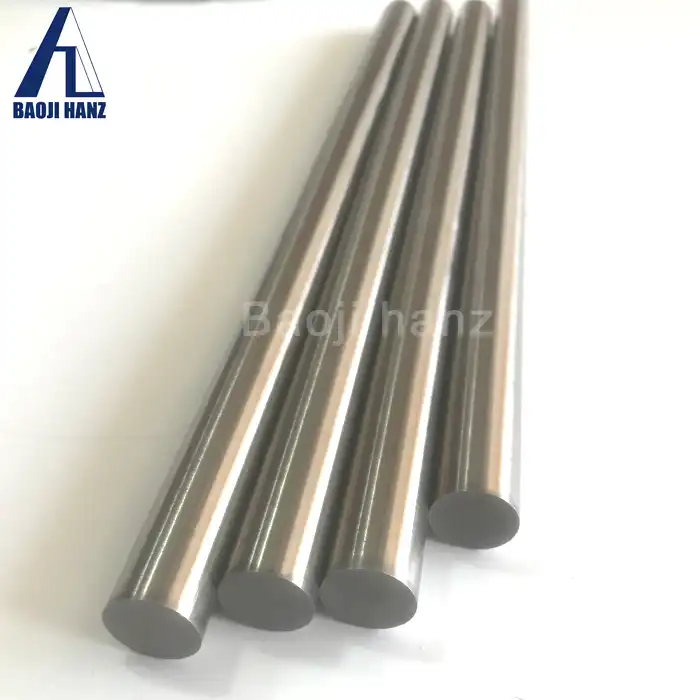

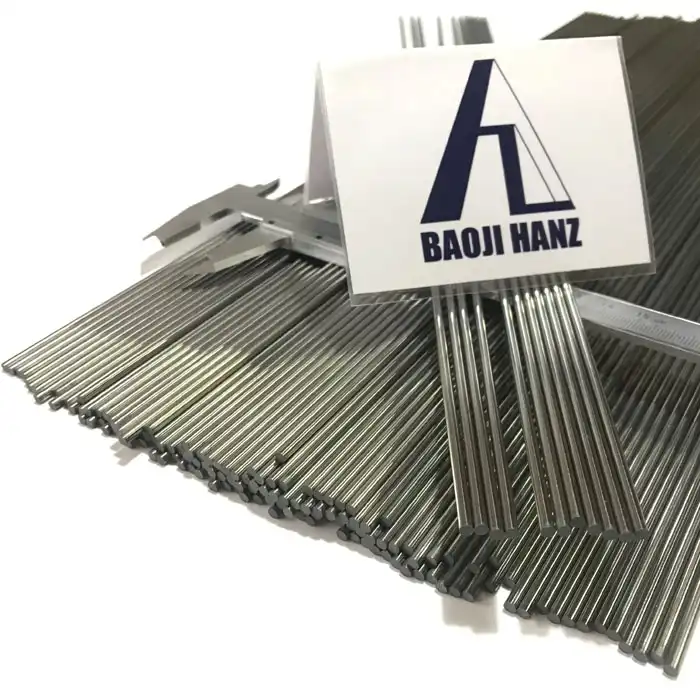

Nitinol Round Bar for Medical & Industrial Applications

The Nitinol round bar comes from Baoji Hanz Metal Material Co., Ltd. NiTi alloy is the base material. Two standards apply: ASTM F2063-18 and GB 24627-2009. Diameters run from 3.0 mm to 50 mm. Tolerance holds inside ±0.02–0.035 mm. Tensile strength lands between 850 and 1,900 MPa. The delivery condition decides the exact figure. Af transformation temperature can be set anywhere from -100°C to +100°C. Before shipment, each batch gets its chemical composition tested. Mechanical properties go through testing as well. DSC phase transformation data is checked too.

Material and Specifications

Chemical composition stays at Ni 54.5–57.0 wt%, and titanium makes up the balance. This balance controls phase transformation behavior from batch to batch. Dimensional accuracy and surface condition are handled at the bar stage. Downstream turning, milling or grinding then starts from a consistent baseline.

nitinol round bar of chemical composition:
nitinol alloy % Ni C Co Cu Cr H Fe Nb N+O Ti
NiTi min 54.5                 margin
max 57.0 0.05 0.05 0.01 0.01 0.005 0.05 0.025 0.05
Main properties of nitinol shape memory alloy:



Tensile strength

850~1200MPa

Yield strength

195 ~ 690 MPa
Titanium content 54%

Elongation

25 ~ 50%
Material Nickel titanium alloy
Standard ASTM F2063

Specification

above 0.1mm diameter * coiled wire (straight wire), φ 0.5 ~ φ 10.0× L.

Phase transition temperature

-100℃ ~ 100℃

MOQ

Small size of 5 pieces, large size can be customized for 1 piece.
Application stress bar, thermal drive spring, temperature control element, communication antenna, spectacle frame, bra bracket, etc.

Note: the delivery condition changes both tensile strength and elongation values. So please confirm your target values when you send the inquiry.

Performance Characteristics

Delivery condition is what explains the spread from 850 to 1,900 MPa. Not one fixed grade covers that whole range. Tensile strength runs higher in cold-worked bar. Shape-set annealed bar gets made for its superelastic recovery. So the first call you make is the delivery condition that suits the application. How the end part performs follows from that call.

Repeated load cycles don't wear the effect out. Superelastic parts go on behaving the same way, cycle after cycle. That holds true for components that bend or lose their shape while in service. Af temperature is adjustable. One base alloy can be set to trigger at body temperature for medical work. Push it higher, and the same alloy fits an industrial actuator.

NiTi alloy resists corrosion. Anyone who works with it knows that. It helps explain why the material turns up in surgical rooms and in outdoor plants alike. Surface condition is your call: ground, pickled, or polished. Pick the one that suits your downstream process and the surroundings the part will end up in.

Typical Applications

Medical uses cover ultrasonic scalpel blanks. Orthopedic implant bars are another one. Surgical instruments also rely on structural substrates. Where documented compliance is needed, the material is supplied to ASTM F2063-18.

Industrial uses include thermal-actuated stress bars and sensor bases. Temperature-control elements are in that group too, as are memory-structure components. Communication antenna elements have used the nitinol round bar as well. So have spectacle frames and similar precision structural parts.

Some applications put the metal through repeated deformation-recovery cycles. Others trigger a shape change with temperature. In both cases NiTi alloy gives a practical advantage that conventional structural metals do not.

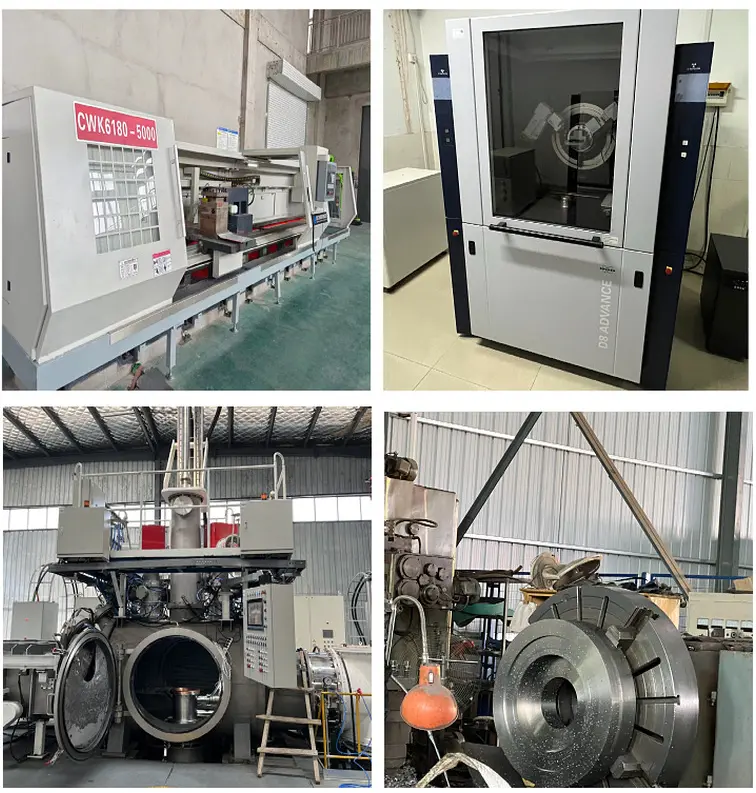

product-756-793

Manufacturing and Quality of nitinol round bar

Every step stays with us. Vacuum melting, forming, and final heat treatment all happen under our own roof. As a result, chemical composition and transformation temperature sit under our direct process control. No outside processors are involved.

Every batch gets checked. We test chemical composition and mechanical properties. DSC phase transformation temperature is measured too. Need the test reports? Just ask. They can back up your incoming inspection or your qualification paperwork.

You set the spec. We match diameter and length to it. Af temperature and surface finish of this product follow your numbers as well. Bar stock is ready to order. Shaped or formed parts come in the same range. Prototyping comes first. With the 1 kg MOQ you can try the material before you commit to production quantities.

nitinol round bar

FAQ

Q: What diameter range is available?

A: Standard diameters run from 3.0 mm to 50 mm. Need something outside that range? Send us a note and we will find out if it can be made.

Q: Can the Af transformation temperature be specified?

A: Yes. Two things set the Af temperature: the alloy mix and the heat treatment. It can range from -100°C to +100°C. Let us know the activation temperature you need when you get in touch.

Q: What surface finish fits my project best?

A: Centerless ground is the most common starting point for machined parts. Pickled and polished surfaces suit applications with stricter surface requirements. Black scale is suitable where surface condition is less critical.

Q: Does medical-grade bar include documentation?

A: Medical-grade bars are supplied to ASTM F2063-18 and GB 24627-2009. Batch test reports covering composition, mechanical properties, and DSC data are available. Specific documentation requirements should be discussed at the inquiry stage.

Q: What is the minimum order?

A: 1 kg, with a minimum of 3 pieces per order.

Contact Us

Send your diameter, length, Af temperature, and surface finish requirements to baojihanz-niti@hanztech.cn. We will review your nitinol round bar specs and respond with availability and pricing.
