Niti Nitinol Shape Memory Tube

Large amount of ready stock
Factory Outlet
Best Price
MOQ:1pcs
Provide OEM services

Niti Nitinol Shape Memory Tube for Medical & Industrial Use - Seamless Precision by Baoji Hanz

Niti Nitinol Shape Memory Tube gives you superelastic recovery plus a phase change you set yourself. Small medical devices and thermal-actuation assemblies fit that mix well. Ordinary metal tubes can't do the same job. Baoji Hanz makes each tube in its own plant, located in China's Baoji Titanium Valley. Nothing gets sent out. Vacuum melting through to the last heat treatment happens in house. Dimensions and mechanical properties follow ASTM F2633-19 on every tube. Outer diameters span 0.25–7.0 mm.

Why Nitinol Tubes Behave Differently from Conventional Metal Tubes

product-783-783
product-783-783

Bend a plain stainless steel or titanium tube enough times and it takes a permanent set. Stress piles up in one spot, and the wall kinks. Catheter navigation and dynamic actuator assemblies turn that failure into a real problem.

Nitinol tubes get through this because of two properties. Superelasticity comes first. Release the load and the tube returns to the shape it started with. Shape memory behaves in a similar way. What triggers it is heat above the Af transformation temperature. The hollow lumen stays open in both cases. Dimensions hold through the whole cycle of deformation and recovery.

Springback brings the tube back to shape. The channel inside it remains open. Those two traits make nitinol tubing a match for certain designs. A part often has to bend. Winding routes may be part of its path. Heat can set it in motion.

Key Characteristics

Bending Too Far: Kinks and Spring-Back

Superelasticity is a property of nitinol. Some bends leave a stainless steel or titanium tube of the same size permanently bent. This tube takes those bends. Release the bend. The tube returns to its starting shape. No mechanical damage you can measure shows up in the wall or the lumen.

Part Fit and Tolerance Tightness

Each tube is manufactured in seamless form, with OD tolerance held to ±0.02–±0.05 mm and wall thickness tolerance to ±0.01–±0.03 mm. Seamless construction maintains consistent coaxiality - a requirement in catheter shaft assemblies and stent delivery systems.

Rust Resistance in Salt Water and When Touching Body Fluids

Nitinol does not get eaten away by salt water or by body fluids. In both settings its crystal structure holds up well. Medical tubing gets made to ASTM F2633-19 at the mill. Chemical makeup, and the mechanical properties this class of tubing must meet, are set by that standard.

The Af Temperature Can Be Tuned to the Job

Choose the austenite finish temperature. Any value from 20°C to 100°C is possible. The alloy mix and heat treatment during production decide the exact figure. A fixed thermal trigger point is what design engineers get. They use that point for actuation or shape recovery.

Pre-Processing Options

Tubes arrive ready for the next steps. Cutting, flaring, necking, and slotting can all be handled before delivery. That means fewer in-house operations to run before the part goes into the assembly.

Technical Specifications

Place of Origin Shaanxi, China
Brand Name Baoji hanz
Color Bright
Materials Nitinol alloy
Density 6.45 gm/cm3
Ti (Min) 45%
Processing Service Bending, Decoiling, Cutting, Punching
Feature Shape memory
Technique Seamless
Shape Round Shape
Supply Status Annealling
The Max recovery stress 1200Mpa
Standard ASTM F2063-12/18
Certificate ISO9001:2015
Application Catheter / stents
Chemical element Af range Available production Line Usage Sample
Nickel 55% Titanium 45% 0℃to 100℃ Rod&wire,Plate&sheet,Strip&foil Medical&Industry On stock (various specification)
Nickel 55% +V +Ti
Nickel 55% +Fe +Ti Subzero 30℃ to -5 ℃ Rod&wire,Plate&sheet Industry On stock
Nickel 55%+Cr +Ti (limitedspecification)
Nickel 55% +Hf +Ti Above 100C Ingot Ingot updating

Application Scenarios

Medical Device Applications

Minimally invasive devices depend on the Niti Nitinol Shape Memory Tube. Curved anatomical pathways must be followed. Kinking cannot happen while it bends. A working lumen stays open under repeated deflection. One documented use is catheter shafts. Guide needles count too. Dental file blanks are another. Stent delivery components and bone cement delivery devices also rely on it.

Industrial Actuation Applications

In industrial assemblies, nitinol tubes function as thermal actuators in pipe joint connectors, sensor fastener systems, and memory alloy ring components. The programmable Af temperature allows the tube to self-expand or lock at a defined thermal threshold without additional electronic controls.

About Baoji Hanz Metal Material Co., Ltd. for Niti Nitinol Shape Memory Tube

Baoji Hanz has produced nitinol and nickel-titanium alloy products since 2017. Work happens at the Baoji Titanium Valley Nonferrous Metals Base in Shaanxi, China.

Full In-House Process Control

Vacuum melting comes first. Cold drawing follows, then the final heat treatment. All three run inside our own plant. Chemical composition holds steady from batch to batch because of that. Phase-transformation behavior holds steady too. Outside processing suppliers play no part.

Standards Compliance and Inspection Paperwork

Tubes follow ASTM F2633-19. GB 24627-2009 is the other standard production refers to. Reports get put together one batch at a time. Ask us and they are on their way. Chemical composition is in each one. So are mechanical properties and the DSC phase-transformation temperature.

Specification Flexibility

Outer diameter and wall thickness are your call at the order stage. Length gets fixed there as well, and so does the Af temperature. Surface finish is settled at that same point. So is the packing format. MOQ sits at 10 pcs, which means one tube type can cover a prototype trial or a full production run.

Shipping and Packaging

Every order goes out flat packed. The packs resist shock and keep moisture out. Inside, tube separators hold the pieces apart. That way no surface touches another one on the way.

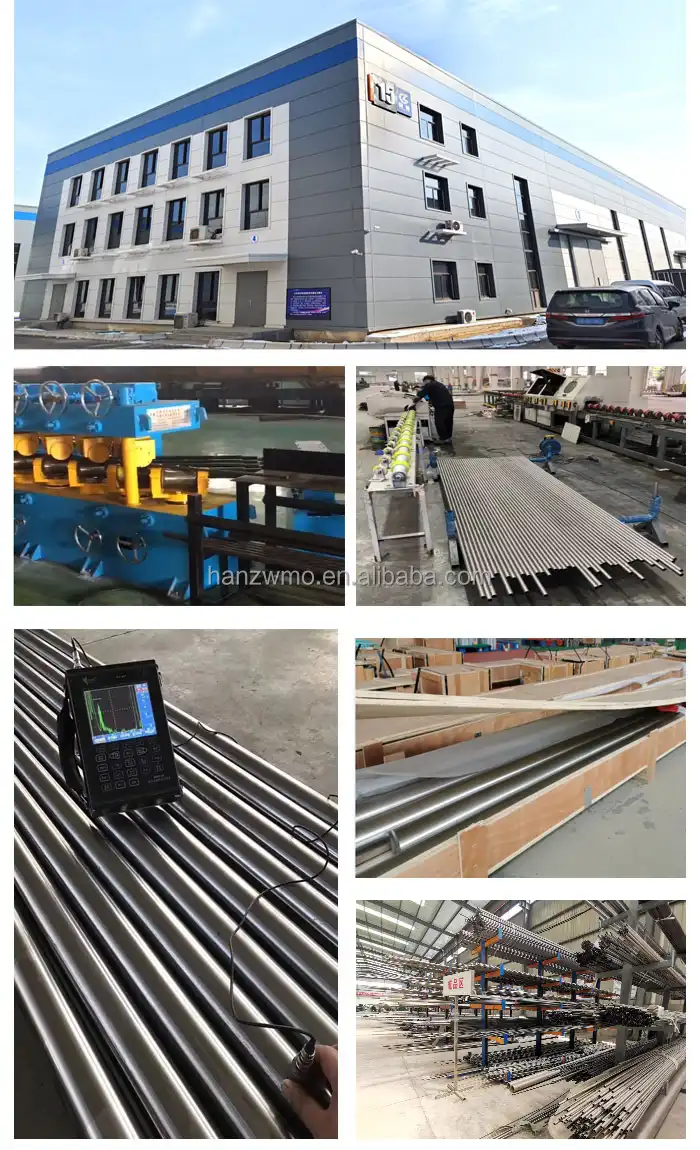

tube company

nitinol wire rope

nitinol shipping

Request a Quote

Want specs, prices, or a sample of the Niti Nitinol Shape Memory Tube? Get in touch with Baoji Hanz. Most technical questions are answered within one business day.

Frequently Asked Questions

Q: What is the minimum order quantity?

A: 10 pcs is the MOQ. That number holds for prototype runs and for production runs alike. Get in touch and we will confirm stock for the dimensions you need.

Q: Can the Af transformation temperature be customized?

A: Yes. Af temperature can be set anywhere between 20°C and 100°C. We lock it in when the order is placed. Two things control it: alloy composition and heat treatment.

Q: What standards do the tubes meet?

A: The tubes follow ASTM F2633-19. Chemical composition gets checked during production too. So does phase-transformation performance, held to GB 24627-2009.

Q: Are test reports provided?

A: Yes. Each batch comes with its own report. Ask for one and you can have it. The report shows chemical composition and mechanical properties. The DSC phase-transformation temperature is included too.

Q: What secondary processing choices do you support?

A: Tubes can be cut to length, flared, necked, or slotted before shipment. This applies to both prototype and volume orders.

Q: How are the tubes packed when they go overseas?

A: All orders leave flat-laid. Shock does not get through the packaging, and neither does moisture. Extra protection inside keeps the dimensions in shape while the goods are in transit.

Contact Us

Email us at hztech03@hanztech.cn for Niti Nitinol Shape Memory Tube specifications, pricing, or sample requests. We respond to technical inquiries within one business day.
