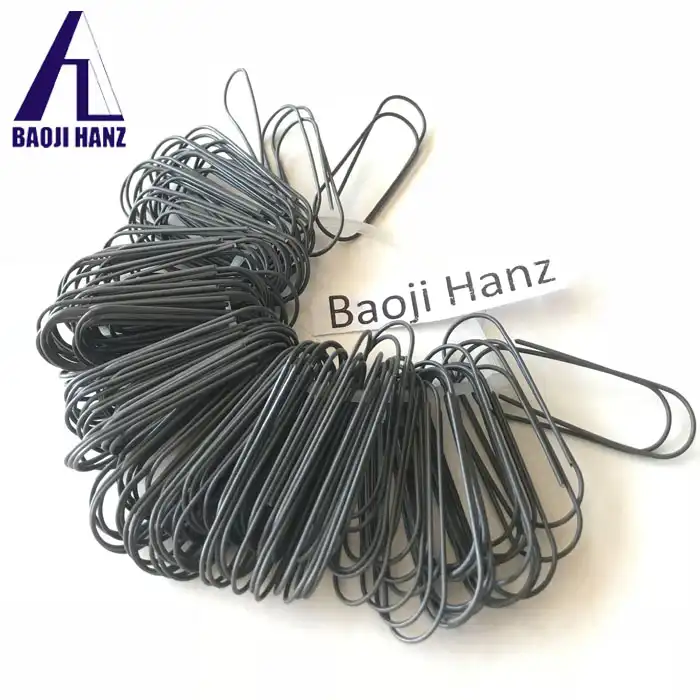

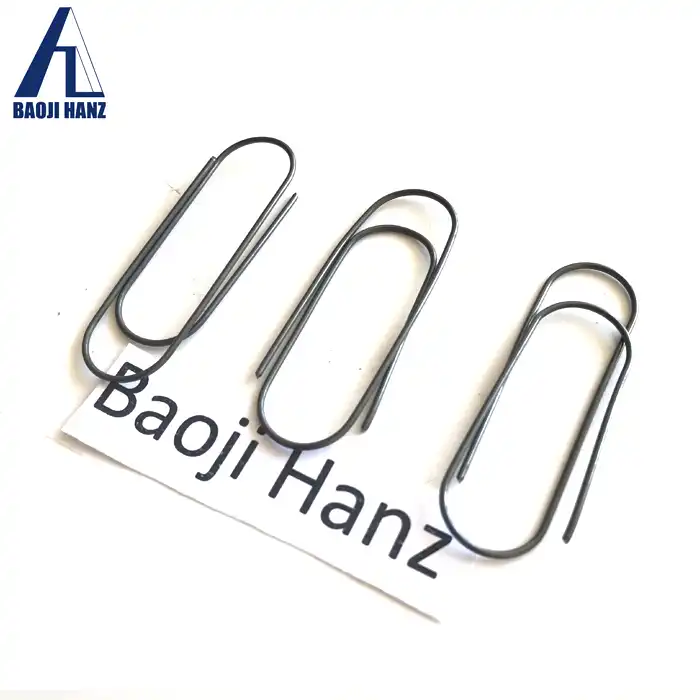

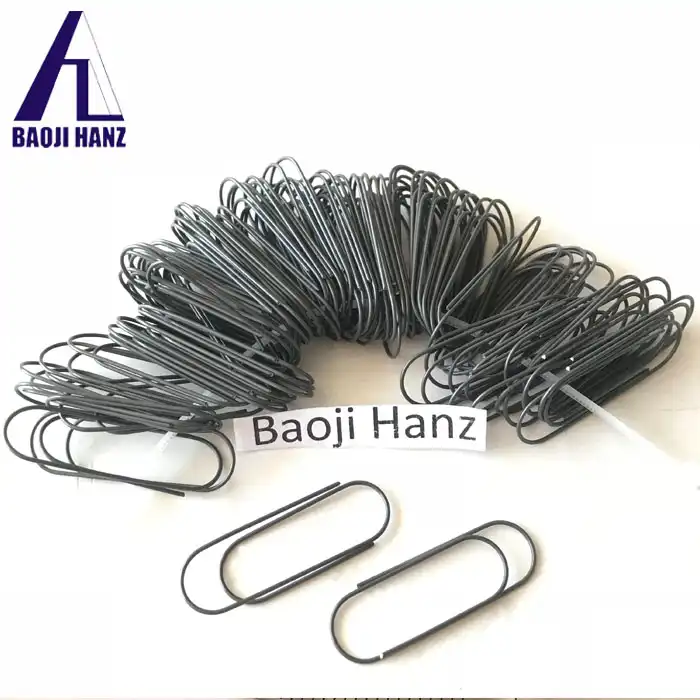

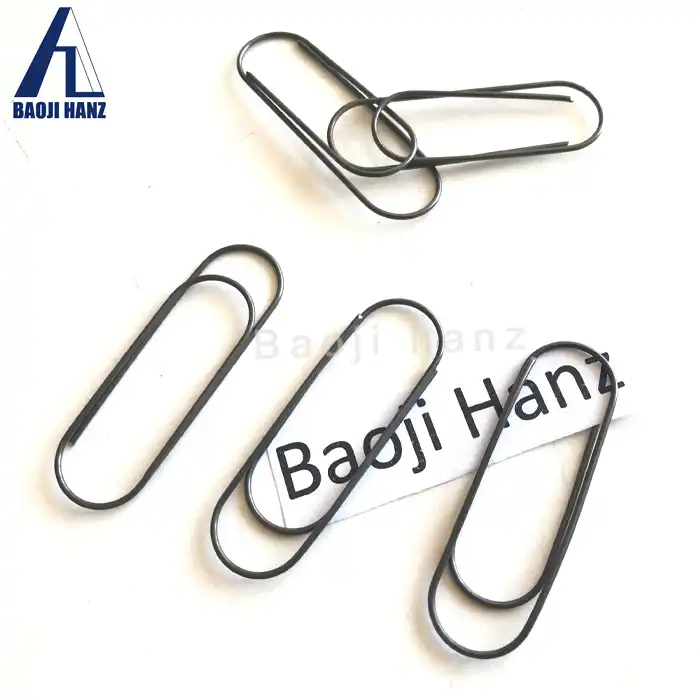

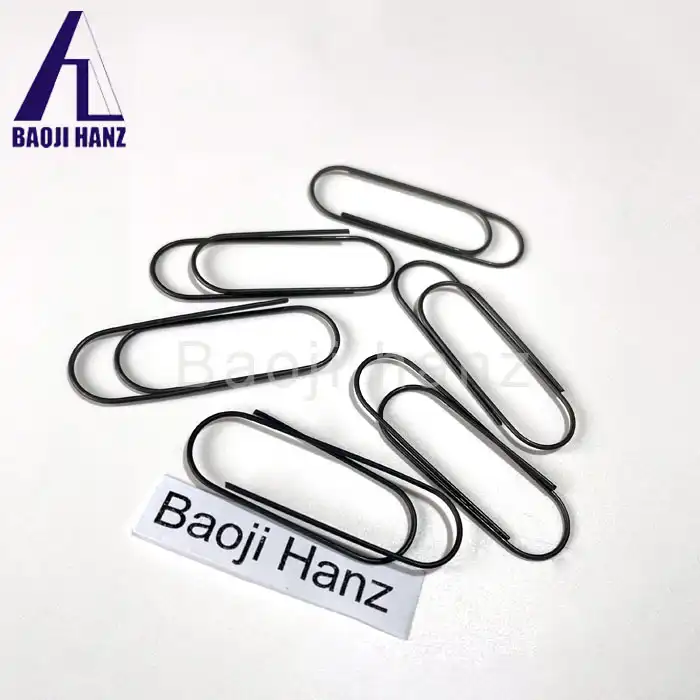

nitinol clip
Size: wire diameter 1mm, width15mm, length 50mm, or customized
Surface: black surface, polish surface
AF temperature: AF60℃, customized available
MOQ: 100pcs
Lead time: 15-30 work days
Nitinol Clip - Shape Memory Retaining Clip for Automatic Clamping
Every standard metal clip has the same weak spot: it wears out. Cycle it again and again and the force fades. A fracture can come next. Baoji Hanz Metal Material Co., Ltd. makes the nitinol clip, and the cure sits in the material itself. Nickel-titanium alloy carries a shape memory effect. Send the clip to its programmed Af temperature and the clamped shape comes back on its own. Force holds steady through repeated cycles. No springs. Nothing has to be adjusted by hand.
How Shape Memory Makes This Clip Different
Conventional metal clips hold on through elastic deformation. Over time that elasticity fades. Clamping force drops with it. Fatigue fractures then turn into a real risk in high-cycle applications.

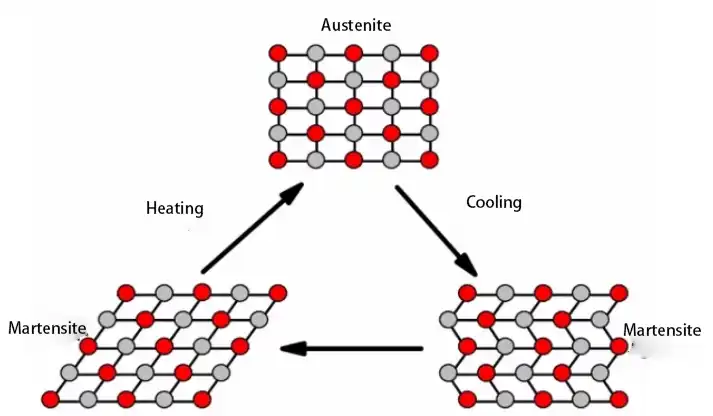

This product work differently. Inside the nickel-titanium alloy a phase change between martensite and austenite takes place, and it reverses. Hit the programmed Af temperature and the clip takes back its set shape. The force repeats and stays controlled. This behavior comes from the material itself. It does not rely on a spring mechanism or on outside adjustment.
Engineers and product developers care about this distinction. Their actuation has to keep working through a long service life. Repeated demo cycles count too.

Technical Specifications
| Item | Value |
| Tensile strength | 850 MPA |
| Yield strength | 195~690MPA |
| Elongation | 25~50% |
| Chemical composition | NI:55.4%--56.2% C≤0.07 H≤0.005 0≤0.050 N:≤0.05 TI:Bal |
| Grade | AF Temperature |
| TiNi-01 | 20℃-40℃ |
| TiNi-02 | 45℃-90℃ |
| TiNi-03 | 5℃-15℃ |
| TiNi-04 | <5℃ |
| TiNi-05 | 33℃±3℃ |

Key Characteristics
The shape comes back on its own. Warm the clip up to the Af temperature it was set for. It then goes back to the clamped shape it started with. No one has to re-tighten it between cycles.

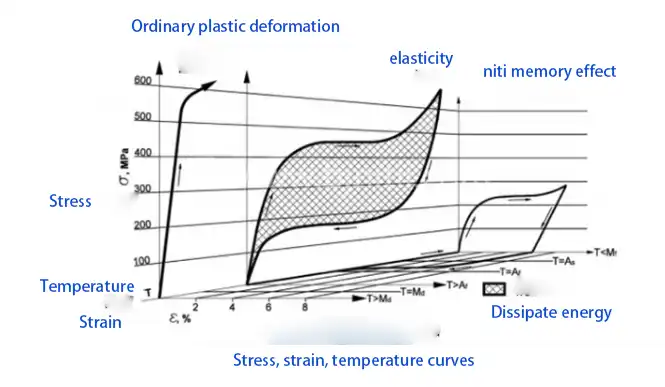

Consistent clamping force over time. The shape memory effect depends on the phase transformation of the alloy. Spring force from the metal has nothing to do with it. So the clamping stays stable, even after many thermal or mechanical cycles.
Corrosion resistance. The Ni–Ti alloy composition - Ni 54.5–57.0 wt%, balance Ti - provides resistance to oxidation and corrosion in typical service environments.
Tight, clean geometry. Tolerances on dimensions hold at ±0.03–0.08 mm. Clips ship in shape-set annealed condition. That means they go straight into an assembly or a demo kit.
Built to your spec. You choose the wire diameter and the Af temperature. Clip shape and surface finish get set from your drawing, or from whatever the application calls for.
Typical Applications
Some jobs need heat to set the clip off. Others need a clamp that grips the same way every time. A few need a shape change you can actually watch. The nitinol clip fits all of those cases.
Science classes and classroom demos. Drop the clip into warm water that sits above its Af temperature. Recovery starts at once and everyone can see it. That makes it a handy teaching aid for smart materials. The same clip helps when you cover phase transformation or material science curricula.
Magic and novelty demonstrations. The self-restoring behavior creates a physically surprising effect that works reliably across repeated use, without the audience seeing any mechanism.
Gift and novelty product development. The clip works as a hands-on part in consumer goods. It lets a product show how a smart material acts. That demo can make the item feel more valuable to buyers.
B2B kit and product line development. Buyers who build educational kits can use this clip. Demo sets and novelty product lines are other fits. The clip is repeatable. Specs control how it is made. Material properties and compliance come documented.
Manufacturing and Quality of the nitinol clip

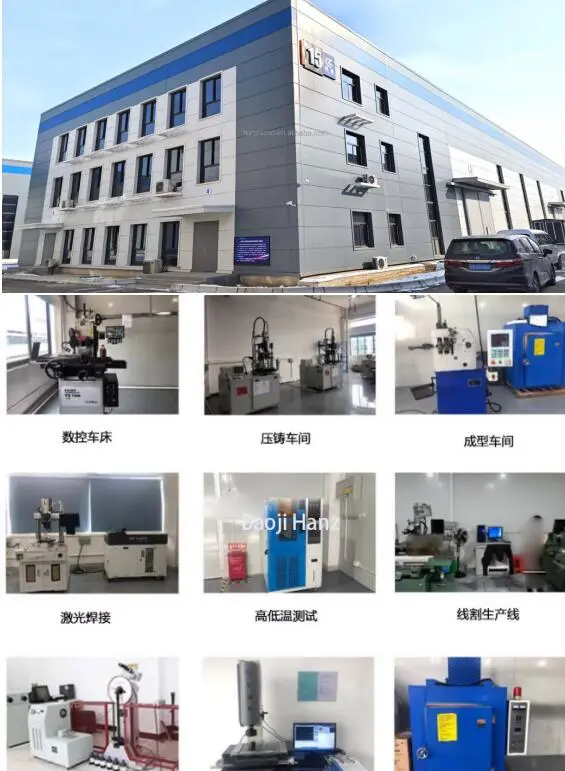

Baoji Hanz Metal Material Co., Ltd. makes nitinol products in Baoji, Shaanxi. This region has long ties to China's nonferrous metal industry. The company handles production in-house. Steps run from vacuum melting to final shape-set annealing. Full traceability links each finished part to raw material.
Every clip we make follows GB 24627-2009 and ASTM F2063-18. That covers chemical composition and phase transformation performance. Batch testing is standard practice here. We check chemical composition, mechanical properties, and DSC phase transformation temperature. Ask us and you can see the test reports.
Custom requirements are handled directly by the engineering team: wire diameters from 0.2 mm to 2.0 mm, Af temperatures between 20°C and 100°C, surface finishes including pickled, polished, ground, and black oxide - all available per drawing.

Packaging and Shipping
Clips are packed in individually divided shockproof packaging with moisture-proof sealing to prevent deformation during transit - a relevant precaution given the shape memory properties of the material.
Export paperwork giving you trouble? We can take care of it. There are also a few ways to arrange nitinol clip shipping. That way it meets the usual international logistics requirements.

Frequently Asked Questions
Q: What is the standard Af temperature, and can it be customized?
A: The standard Af is 60°C. Custom values between 20°C and 100°C are also something we make. When you place the order, tell us the activation temperature you need.
Q: Which standards does this product meet?
A: Each this product meets GB 24627-2009 and ASTM F2063-18. Chemical composition and phase transformation performance are covered by those standards. Ask us for batch test reports and we will send them.
Q: Can clips be made to custom dimensions or drawings?
A: Yes. Wire diameters from 0.2 mm to 2.0 mm are supported, along with custom widths, lengths, and geometries per customer drawing. Tolerances are maintained at ±0.03–0.08 mm.
Q: What is the MOQ and lead time?
A: We set the MOQ at 100 pcs per drawing. Lead time runs 20–35 working days. Specification and volume set the final number.
Q: What surface finishes are available?
A: You can get pickled, polished, ground, or black oxide finishes. Which one you take comes down to how the part should look or how it must work.
Q: Can I order industrial-grade and application-specific grades from you?
A: We offer both. One option is industrial-grade, the other is application-specific. Tell us what you need and we will confirm the right specification for you.
Contact Us
For specifications, samples, or a custom quote for a nitinol clip, contact Baoji Hanz Metal Material Co., Ltd. directly at baojihanz-06@hanztech.cn. We respond to technical and procurement inquiries.
