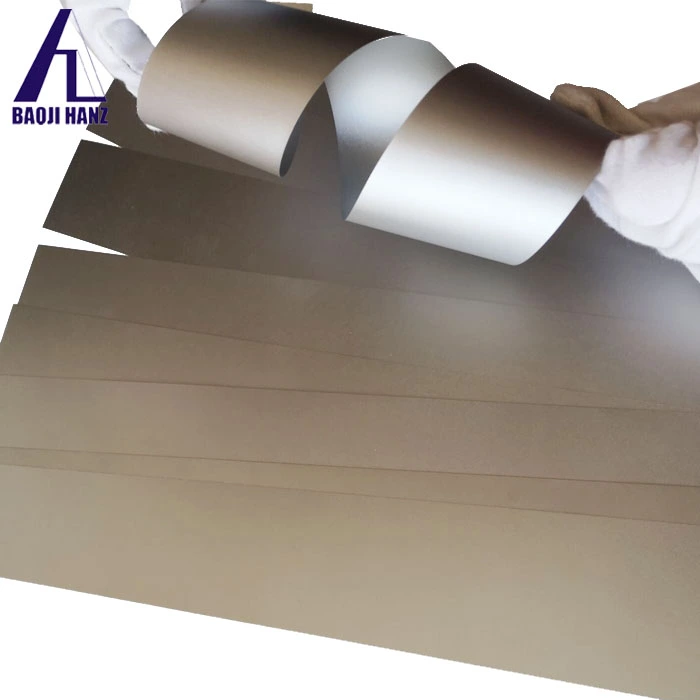

Nitinol Alloy Foil

Technique:Sintering
Content:Ti (Min)45%, Ni:55.4%--56.2%
Standard:ASTM F2063-12/18
Processing Service:Cutting
Density: Approximately 6.45g/cm³
Feature:Super elastic, shape memory, high strength
Surface:polished
MOQ:1kg or 10pcs
Size:Customized
Application environment: Industry, medical

Nitinol Alloy Foil for Medical & Industrial Applications

Nitinol Alloy Foil comes from Baoji Hanz Metal Material Co., Ltd. Both ASTM F2063-18 and GB 24627-2009 are met. Vacuum melting is the first step. Cold rolling follows it. Thickness of the foil spans 0.03–1 mm. Nickel content sits at Ni 54.5–57.0 wt%. Ti fills out the rest. Af can be adjusted from -20°C to 100°C. Tensile strength readings run 550–1900 MPa. Condition decides where in that band a given lot lands. Orders start at 1 kg. Prototypes and full production both fit that.

What Sets This Nitinol Foil Apart

Plain metal foils give you little elasticity. Fatigue life tends to be short as well. Two behaviors built into this product handle both limits: superelasticity and the shape memory effect.

After a large deformation, superelasticity brings the foil back to its original shape. It does this again and again, with no permanent set. Thermal actuation is what the shape memory effect gives you. The foil deforms at low temperature. Heat it past the Af point and it recovers the geometry set in advance.

Both behaviors come from the alloy microstructure. It is set during vacuum melting and heat treatment. Surface coatings play no part. Neither does any later processing step. Performance then repeats from one production batch to the next.

Technical Specifications

Surface Polished surface
Certificate ISO9001,ROHS, TUV
Elongation 25-50%
Melting point 1310°C
Tensile strength 800-1500MPa
Density 6.45g/cm³
MOQ 1kg  or 10pcs
standard ASTM F2063
Element Mass percentage
Ni 54.5-57.0
C

≤0.040

Co

≤0.050

Cu

≤0.010

Cr

≤0.010

H

≤0.005

Fe

≤0.050

Nb

≤0.025

N

≤0.005

O

≤0.040

Ti Margin

certificate 11

Key Advantages

Two traits, one material: superelasticity and shape memory. Even after many deformation cycles, the foil comes back to its original shape. Spring elements depend on that. Flexible connectors do too. The same trait suits actuating parts where dimensional drift cannot be tolerated.

Very thin parts, and the tolerances stay tight. Wall thickness can go as low as 0.03 mm. The allowed tolerance range is ±0.003 mm to ±0.02 mm. Designers of microdevices count on that level of control. Interventional parts do too. The same holds for small implant accessories. For those, how consistent the dimensions are changes how well they work.

The phase change temperature can be adjusted. The Af temperature is fixed during alloy preparation. You can ask for any value between -20°C and 100°C. Thermal actuation becomes part of the material itself. No outside part has to be bolted on for it to work.

The surface resists corrosion. Nickel and titanium are naturally corrosion resistant. Pickled finishes are available. Bright polished and ground surfaces can both be supplied. Industrial settings are a good match. Medical device work under ASTM F2063-18 fits as well.

Works with cutting and stamping. Normal cutting and stamping runs handle the foil without trouble. Precision assemblies can use it as it comes. The functional properties of the alloy stay the same.

Application Scenarios

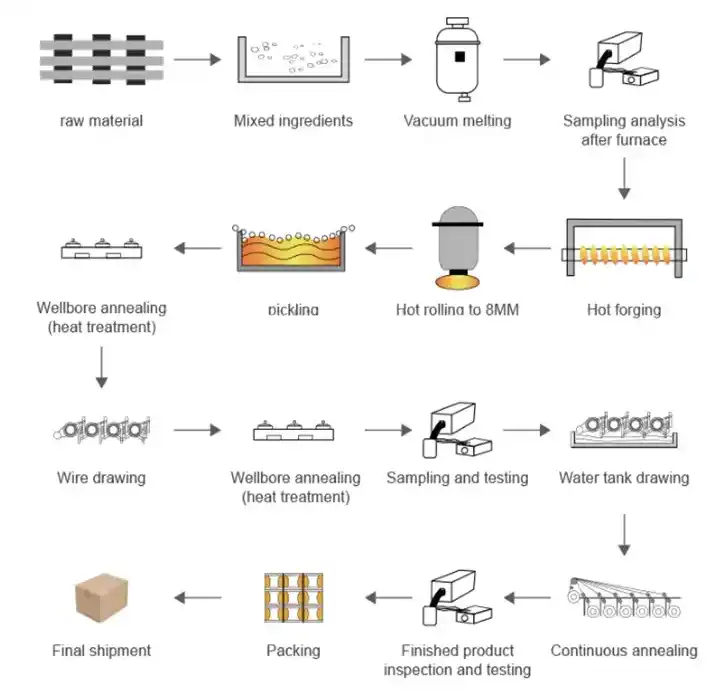

Production Process

Application

Medical Applications

Nitinol Alloy Foil is often cut into interventional device parts. Those parts have to bend, resist corrosion, and spring back to shape. Thickness holds to tight tolerances. Polished surface finishes are available too, so the foil suits microimplant accessories. Springs inside minimally invasive instruments count on superelastic recovery. That keeps the same force through cycle after cycle. Supply is medical grade and meets ASTM F2063-18.

Industrial Applications

Thanks to the shape memory effect, a thermal-actuated part can trip a mechanical response at a set temperature. No electronics take part. Sensor springs and microswitches in precision equipment gain from cycling that resists fatigue. Flexible aerospace parts get high tensile strength (up to 1900 MPa). Steady shape recovery comes with it, so extra reinforcement materials are not needed.

Quality Control and Documentation for Nitinol Alloy Foil

Chemical composition gets checked on every production batch. So do the mechanical properties. DSC phase-transformation temperature is measured as well. Nothing is sampled at random, since testing covers each batch.

Ask us and we will send the test reports. They back up your incoming inspection and cover the paperwork you need for medical and aerospace supply chains. Production follows GB 24627-2009 and ASTM F2063-18. Both standards set the alloy composition limits and the checks on transformation temperature.

nitinol foil

Why Source from Baoji Hanz Metal Material Co., Ltd.

End-to-end process ownership. Vacuum melting, cold rolling, and final heat treatment all happen in the same plant. The chain stays short that way. Fewer things shift from batch to batch.

Flexible specification options. Thickness, Af transformation temperature, surface finish, and packaging can all be specified at the time of order. Both raw material sheets and finished formed parts are available depending on your downstream requirements.

Single supplier for medical and industrial grades. Both grades are produced under the same standard framework - ASTM F2063-18 and GB 24627-2009 - so you can source from one supplier across different application categories.

Low entry quantity. The 1 kg MOQ and 15–30 working day lead time make the material accessible during the design and prototyping phase, not just at production scale.

Based in Baoji, a region with established Nitinol Alloy Foil nonferrous metals production infrastructure and direct access to titanium and nickel raw material supply.

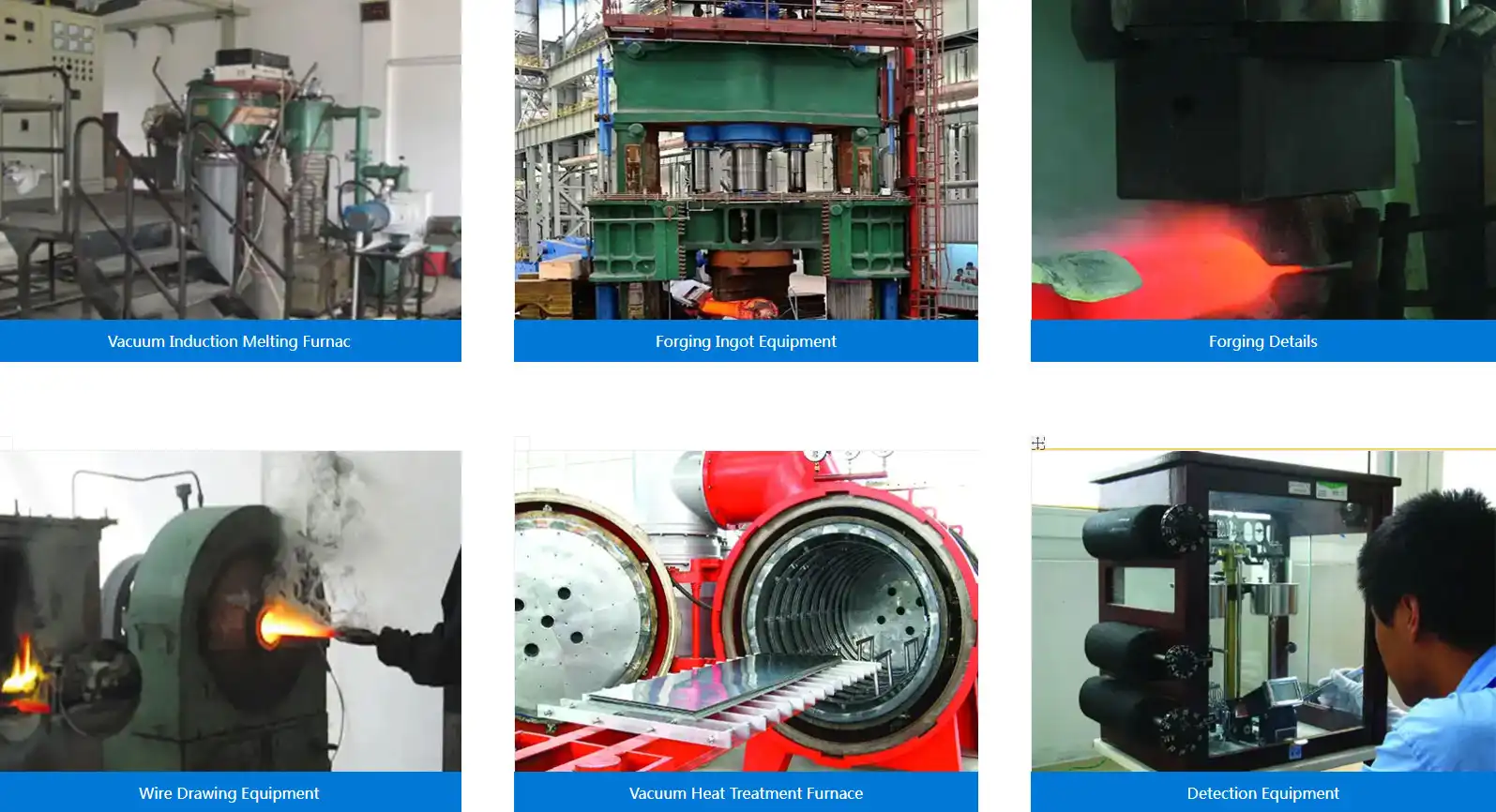

Production equipment

nitinol sma wire

nitinol sma wire

payment method nitinol

FAQ

Q: What thickness range is available?

A: Our range covers 0.03 mm up to 1 mm in thickness. If your part needs a size beyond that, get in touch. Describe what the part has to do, and we will work through it with you.

Q: Can the Af transformation temperature be customized?

A: Yes. The Af temperature can be set between -20°C and 100°C during alloy preparation. It is specified at the time of order and verified through DSC testing before shipment.

Q: Is this foil suitable for medical device applications?

A: This foil is made to ASTM F2063-18. Whether it suits a particular medical application comes down to your device design and the regulatory requirements. Before you qualify the material, we suggest you read the standard and check the test documentation we can provide.

Q: What surface finishes are available?

A: Three surface conditions are available. They are pickled, bright polished, and ground. Which one suits you comes down to two things: how the material is processed further downstream, or what the final use requires.

Q: How long does lead time take, and what is the smallest order you accept?

A: MOQ is 1 kg. Lead time runs 15–30 working days. That range shifts with how complex the specification is and the order volume.

Q: What documentation is provided?

A: Batch-by-batch test reports covering chemical composition, mechanical properties, and DSC phase-transformation temperature are available upon request.

Contact Us

For specifications, samples, or a custom quote on Nitinol Alloy Foil, contact us at baojihanz-niti@hanztech.cn. We respond to technical and commercial inquiries.
