Buy nitinol spring

Material:Nickel-Titanium (NiTi) Alloy
Density:6.45 g/cm³
Melting Point:1240-1310°C
Operating Temperature:-20°C to +80°C (depending on application)
MOQ:500pcs
Application:industry

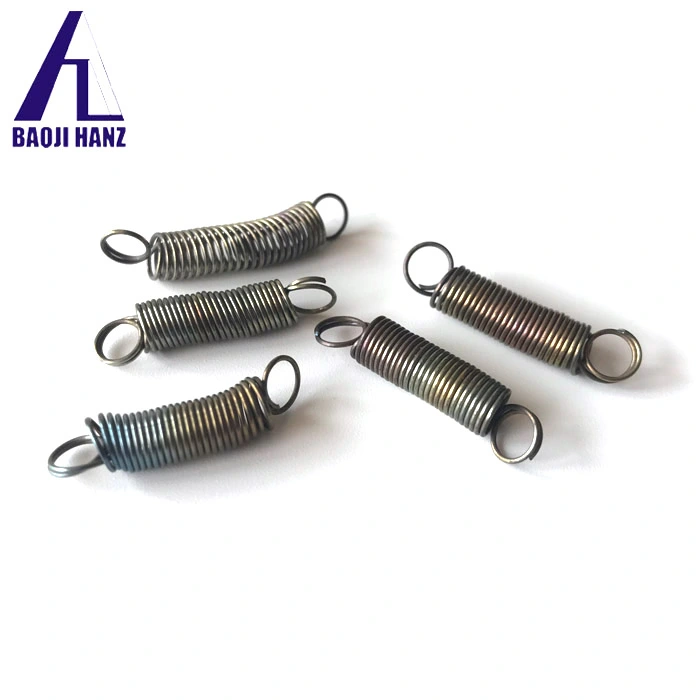

Buy Nitinol Spring - Custom NiTi Shape Memory & Superelastic Springs for Industrial and Medical Applications

Ordinary metal springs fail in some applications. In those cases, buyers buy nitinol spring parts from Baoji Hanz Metal Material Co., Ltd. The company supplies NiTi parts built for the job from its facility in Baoji Titanium Valley Nonferrous Metals Base, China. Hanz was set up in 2017. It works only on NiTi alloy materials and finished parts. Wire diameter runs from 0.05–5 mm. Outer diameter covers Φ1–Φ20 mm. Tensile strength reaches ≥850 MPa. Af transformation temperature can be adjusted between 20°C and 100°C.

What Makes Nitinol Springs Different from Conventional Springs

Two problems keep showing up with standard metal springs. Repeated load cycles wear down performance. These springs also cannot respond to actuation driven by temperature. Nitinol, a NiTi alloy, covers both needs in one material.

Nitinol springs are made from a nickel-titanium alloy. Its density is 6.45 g/cm³. The melting point is 1240–1310°C. Depending on the application, the springs work from -200°C to +100°C.

The spring has two performance modes. Warm it past the Af transition temperature and the shape memory effect returns it to the shape it was set to. That suits thermal actuation mechanisms. At room temperature, the superelastic mode lets the spring carry large strains and recover them, with no permanent deformation.

Sometimes the design requirement is long service life. Other times it is temperature response. Compact elastic force may be the need instead. Nitinol springs are a practical alternative in those cases.

Buy nitinol spring production process

Technical Specifications

Specification Details
Material Nickel Titanium Alloy
Grade niti
Size Range 0.2 ~ 12 mmm
Strength 1050
MOQ 500pcs
Certification ISO 9001:2008
Processing Service Bending, Welding, Decoiling, Cutting, Punching
OEM Service Available for custom designs and sizes
Operating Temperature -200°C to +100°C (depending on application)
Density 6.45 g/cm³

Buy nitinol spring

Buy nitinol spring

Buy nitinol spring

Nitinol spring Type

Key Advantages

Industrial buyers check cyclic fatigue resistance first. Nitinol springs keep their dimensions even after tens of thousands of actuation cycles. That cuts replacements. Less unplanned downtime shows up in production environments too.

Corrosion resistance comes from the NiTi alloy makeup itself, and that is what the spring gets its protection from. For medical device work, there are medical-grade material options. What buyers should do is confirm their own biocompatibility needs with the Hanz technical team. The intended use of the spring is what that check rests on.

Customizable geometry and spring force means catalog sizes no longer cap the design. Outer diameter follows the drawing. Inner diameter, Af temperature, coil count and wire diameter do too. Spring type is also open: compression, tension, or torsion. Three versions of finish are available. One is pickled. Another is bright polished. The third is ground. Your pick depends on how clean or how rough the surface must be for the job.

Application Scenarios

Two main markets buy Nitinol springs. Each one asks for something different in performance.

Medical applications include springs that go into interventional devices. Elastic parts for minimally invasive instruments also fall in this group. Dental elastic parts count as well. Tolerances here must be tight. From part to part, the phase transformation has to stay consistent. Material grade choice matters too. Batch-by-batch inspection covers these points, and medical-grade material options are available.

Industrial applications include memory springs that work by heat, elastic elements for sensors, and precision elastic parts fitted inside automated or safety-critical mechanisms. A spring driven by thermal actuation reacts straight to a shift in temperature. No outside motor or actuator is needed. When space is tight, that makes the mechanism easier to design.

Does your project need movement driven by temperature, or parts that carry high-cycle loading? Sometimes the elastic design has to fit a tight space. Any of those cases, talk to the Hanz team and walk them through your parameters.

Why Choose Baoji Hanz Metal Material Co., Ltd.

Baoji Hanz runs a complete in-house production chain, from vacuum melting all the way to final heat treatment. Every step stays under one roof. That keeps chemical composition steady and makes phase-transformation performance predictable from batch to batch.

Every product meets GB 24627-2009 and ASTM F2063-18. Test reports come on request. They cover chemical composition, mechanical properties, and the DSC phase-transformation temperature.

Key supply Buy nitinol spring capabilities for B2B procurement:

  • Customization scope: Custom Af temperature, geometry, coil count, and surface finish available for both raw material and finished formed parts
  • Dual-grade supply: Medical-grade and industrial-grade products available from the same production line
  • MOQ of 100 pcs per drawing with lead times of 20–35 working days
  • Technical support available during application development and specification review
  • Export packaging: Individual shockproof and moisture-proof packaging to prevent spring deformation during transit

Buy nitinol spring factory

Buy nitinol spring shipping method

Nitinol Spring Shipping Method

Buy nitinol spring package type

Package Type for nitinol spring

​​​​​FAQ for Buy nitinol spring

Q: What is the minimum order quantity when I this product from Baoji Hanz?

A: The MOQ is 100 pcs per drawing. For non-standard designs, quantities and configurations are confirmed with the Hanz team before production. Contact hztech05@hanztech.cn to start the specification process.

Q: Can I customize the Af transformation temperature?

A: Yes. You can set the Af temperature anywhere between 20°C and 100°C. Picking the right Af value matters a lot when the part works by thermal actuation. The Hanz technical team can help you at the specification stage.

Q: What spring types are available?

A: Compression springs, tension springs, and torque (torsion) springs are all available, produced according to customer drawings with specified outer diameter, inner diameter, wire diameter, and coil count.

Q: What inspection and documentation is provided?

A: Batch-by-batch testing covers chemical composition, mechanical properties, and DSC phase-transformation temperature. Full test reports are provided upon request.

Q: What surface finishes are offered?

A: Three options are available: pickled, bright polished, and ground. Selection depends on the surface cleanliness or friction requirements of your application.

Q: How are the springs packaged for export?

A: Each spring is individually packed with shockproof and moisture-proof materials to prevent deformation during shipping.

Buy nitinol spring related nitnol sheet

Nitinol Sheet

Buy nitinol spring nitinol rod

Nitinol Rod

Buy nitinol spring related nitinol wire

Nitinol Wire

Buy nitinol spring related nitinol pipe

Nitinol Tube

Buy nitinol spring related nitinol flat wire

Nitinol Flat Wire

Buy nitinol spring related nitinol wire rope

Nitinol Rope

Contact Us

For inquiries or quotes, contact Baoji Hanz at hztech05@hanztech.cn. The team is available, Buy nitinol spring, for technical consultation and custom specification review.
