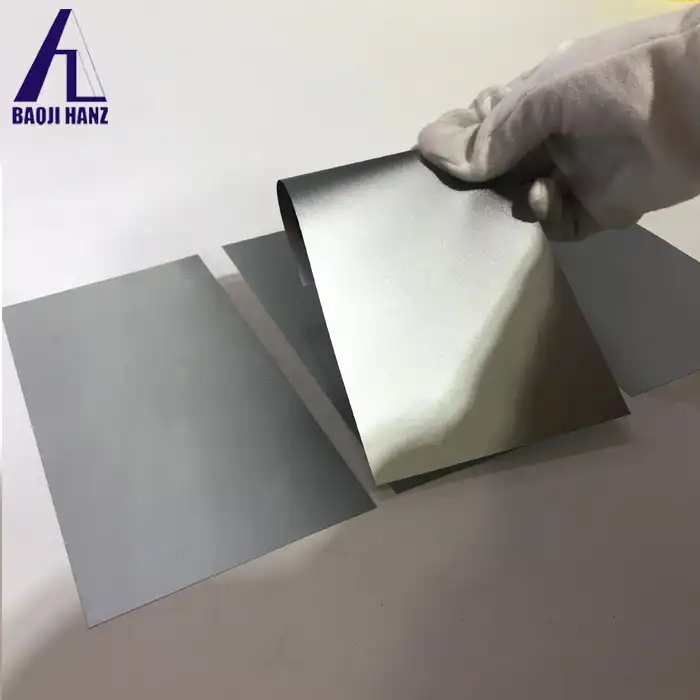

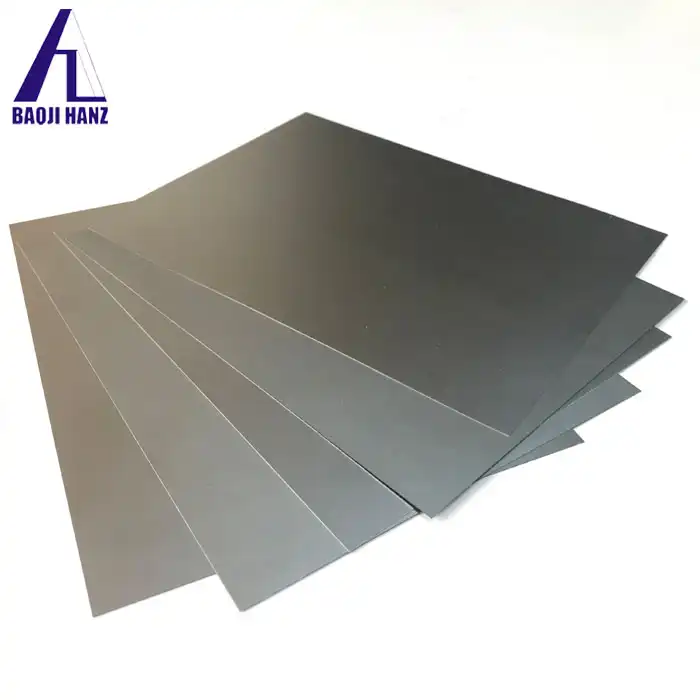

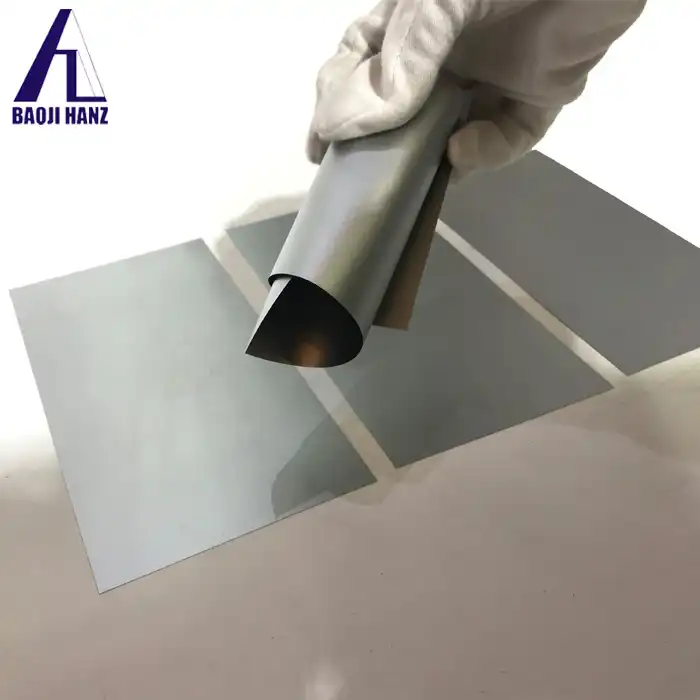

Cold rolled nitinol sheet

Material: Nickel-Titanium Alloy (NiTi)
Standard: ASTM F2063, GB 24627
Ni Content: 54.5–56.2 wt%
Thickness:0.03mm min
Width: 100mm max
Length: 100mm – 2000mm (customizable)
Af Temperature: -20°C ~ 120°C (custom)
Surface: Pickled / Bright polished / Cold rolled
Density: 6.45 g/cm³
Tensile Strength: ≥850MPa

Products Description

 Product Name of Cold rolled nitinol sheet


Cold rolled nitinol sheet / Nickel Titanium Alloy Plate (Shape Memory & Superelastic)

Overview of Cold rolled nitinol sheet

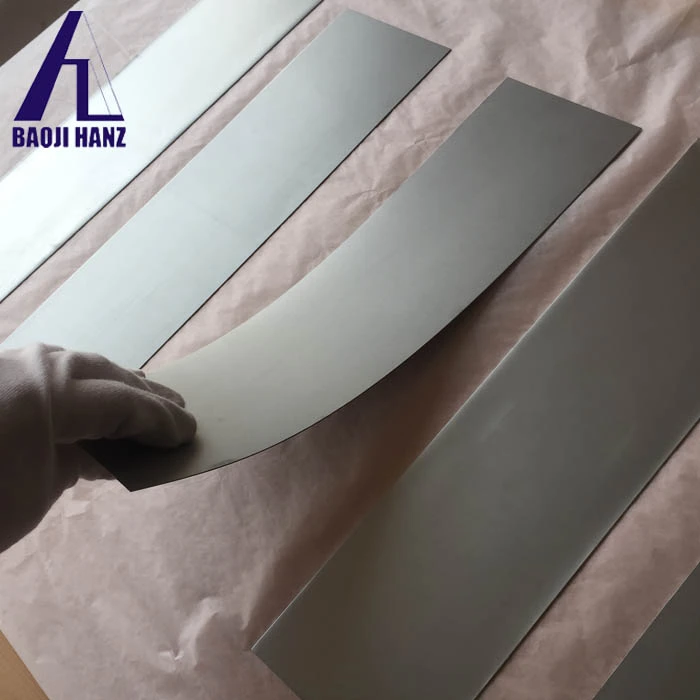

cold rolled nitinol sheet


Cold rolled nitinol sheet(Niti) is a high-performance shape memory alloy made of nickel and titanium in near-equiatomic ratio. It features exceptional shape memory effect (SME), superelasticity (SE), biocompatibility, corrosion resistance and fatigue durability. Widely used in medical devices, aerospace, automotive, micro-electronics, robotics.

Specifications

Material Nickel-Titanium Alloy (NiTi)
Standard ASTM F2063, GB 24627
Ni Content 54.5–56.2 wt%
Af Temperature -20°C ~ 120°C (custom)
Surface Cold rolled
Density 6.45 g/cm³
Tensile Strength ≥850MPa
Thickness 0.01mm min
Width 100mm max
Length 100mm – 2000mm (customizable)

Key Features & Applications

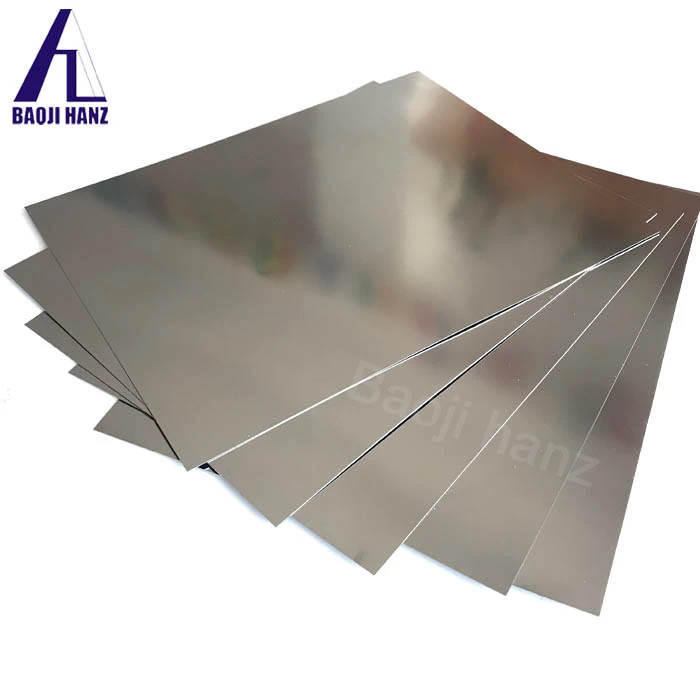

Cold rolled nitinol sheet

Feture of Cold rolled nitinol sheet



Shape memory effect: It can regain the preset shape when heated to the transformation temperature.

Super elasticity: It can recover up to 8% of the deformation and has no permanent deformation.

Biocompatibility: Certified by ISO 10993 and ASTM F2063, suitable for implantable devices.
High corrosion resistance: Stable in body fluids, seawater and harsh environments.
Outstanding fatigue life: Stable performance under repeated deformation.
Processability: Can be processed by laser cutting, stamping, etching and bending.


Industry and aerospace medical treatment

Medical

1. Orthopedic fixation plates and clips;
2. Orthodontic appliances;
3. Minimally invasive surgical instruments;
4. Dental and implantable components;



Industrial & Aerospace

1.Thermal actuators and sensors
2.Deployable aerospace structures
3.Automotive intelligent components
4.Robots and micro-electromechanical systems equipment

Cold rolled nitinol sheet





12Baoji Hanz Metal Material Co., Ltd. - Manufacturer of Nickel Titanium Materials

Packaging and Delivery


1. Shockproof, moisture-proof + vacuum packaging;

2. Standard export cartons/wooden cases;
3. Delivery time: 7 - 15 days (in stock/custom order);



Quality Assurance


1.100% Conduct inspections before shipment
2.Test report: Composition, mechanical properties, transition temperature
3.ASTM F2063 standard

product-1-1


Customized service


1.Customizable thickness, width and length

2.Customizable heating temperature and performance

3.Surface treatment (polishing, acid washing, passivation)

4.Laser cutting and stamping components

5.Offer OEM and ODM services

FAQ

Question 1: What are the differences between shape memory alloys and superelastic nickel-titanium alloy sheets?

Answer: Shape memory alloys will return to their original shape when heated; while superelastic Cold rolled nitinol sheet can automatically return to their original shape at room temperature without the need for heating.

Question 2: Do you provide medical-grade nickel-titanium alloy sheets?

Answer: Yes. Our medical Cold rolled nitinol sheet comply with the ASTM F2063 standard and have good biocompatibility.

Question 3: Can you provide services for custom thickness, size, and heating temperature?

Answer: Yes. The thickness range is 0.05 millimeters to 20 millimeters. Customized width and length are available, as well as special anti-oxidation temperatures ranging from -20℃ to 120℃.

Question 4: How long is the delivery period?

Answer: In stock products: 3-7 days; Custom orders: 10-20 days.

Question 5: Do you support laser cutting/molding/processing?

Answer: Yes.

Get a Quote

If you need customized dimensions, thickness, surface treatment, performance or processing services for nitinol sheets, please leave us a message specifying:

1.Product type (shape memory type / super elastic type)

2.Thickness, width, length quantity

3.Application (medical/industrial/aerospace)

4.Target temperature (if required)

5.Your drawings or requirements

We will provide you with the price, delivery time and professional solutions within 12 hours. Email:baojihanz-niti@hanztech.cn
