Superlastic Nitinol Wire

Name:nitinol wire for sale
Ti Content (%):45%
Color:Metal Color
Standard:ASTM F2063
Supply Status:Full annealed
Af temperature:-20-----75Centigrade
Application:industry
Certificate:ISO9001:2008
Technique:Cold rolling
MOQ:1kg

Superlastic Nitinol Wire for Industrial & Medical Applications

Superlastic Nitinol Wire is made by Baoji Hanz Metal Material Co., Ltd. ASTM F2063-18 and GB 24627-2009 are the standards the mill follows. Diameters start at Φ0.025 and go up to 4 mm. For tolerance, ±0.002 mm is the closest the mill can get. The alloy contains 45% titanium. Af temperature falls in the -20°C to 75°C range. Tensile strength is ≥1300 MPa. Two grades are available: medical grade and industrial grade. The smallest order is 1–2 kg, enough for R&D work. Prototyping fits that amount. So does production buying.

Why wire Outperforms Standard Metal Wire

Repeated loads hit guide wires, cycle after cycle. Stent frames face the same test. Actuator springs do too. Ordinary metal wire in those parts tends to crack. Bend it often enough and a permanent set remains. Engineers know this issue well. Product safety and service life depend on component reliability. No one can brush that aside.

This product meets this with two behaviors: superelastic and shape memory. Even after a long bend, it returns to its original shape. No cracks appear. A permanent set is not left behind. Stainless steel behaves another way. Plain spring wire does too. You get longer service life in return. Mechanical performance also holds steadier under dynamic loads.

Nickel makes up 54.5–57.0 wt% of the mix. The balance is titanium. That tight chemistry is no accident. Every batch goes through the same phase transformation. Parts come out with a steady size, and they behave the same in service.

Full Technical Specifications

Specification Details
Material Nickel-Titanium Alloy (Nitinol)
Tensile Strength High (depending on wire rope specifications)
Temperature Range Wide range (specific grades available for high-temp use)
Corrosion Resistance Excellent resistance to corrosion
MOQ 1kg
OEM Services Available for custom requirements
Certifications ISO 9001:2015, ISO 13485:2016, EU CE
Stock Availability Large stock ready for delivery
Price Factory direct pricing

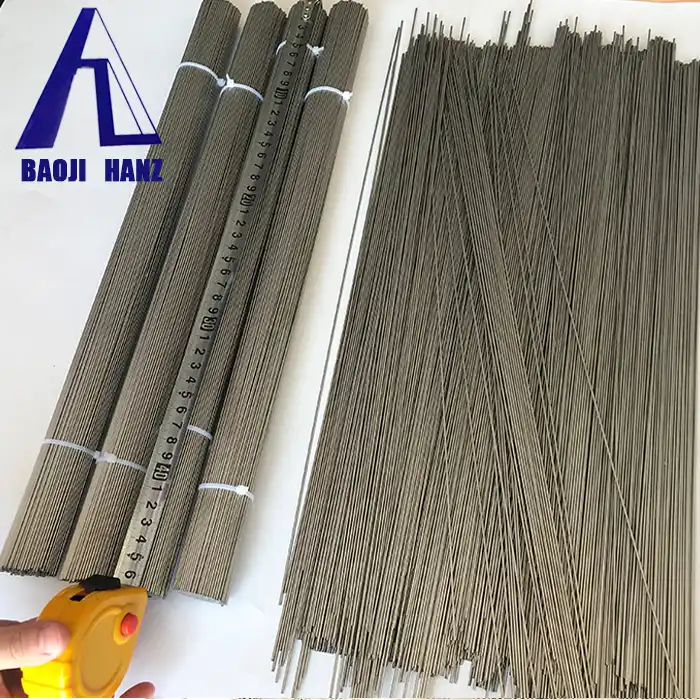

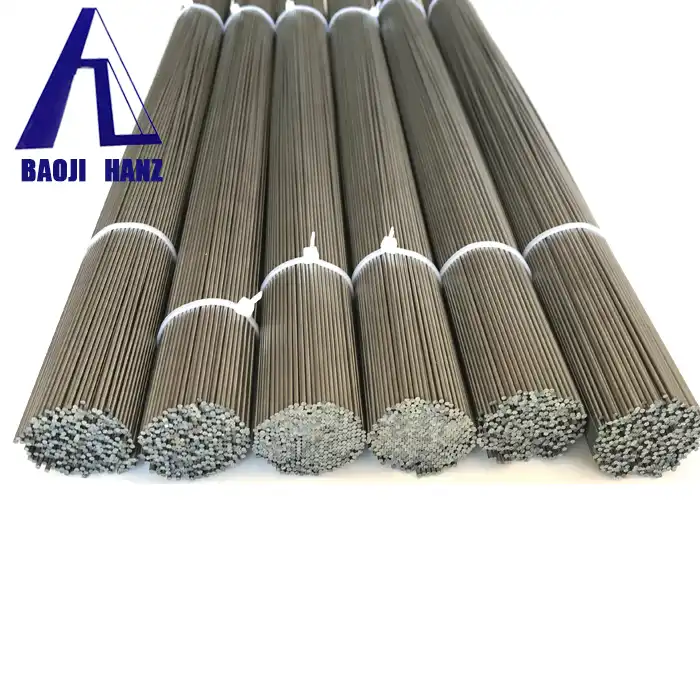

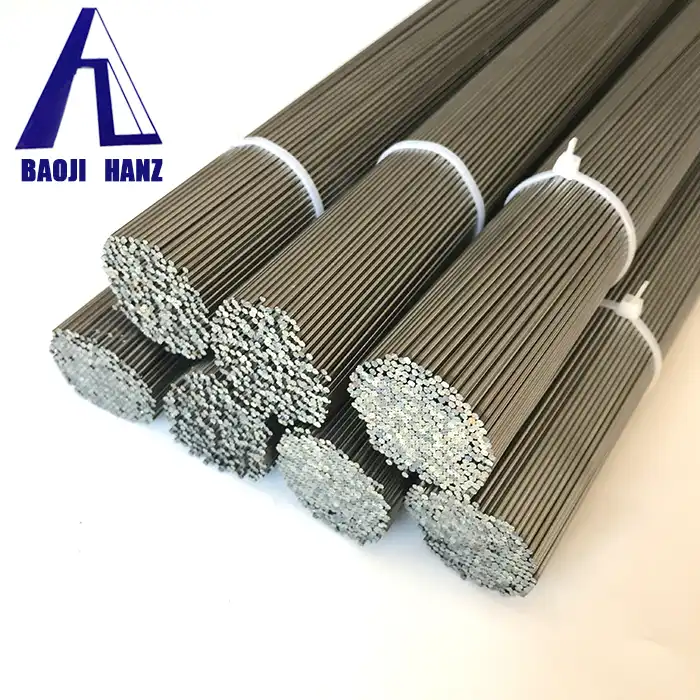

Nickel-titanium straight wire

Key Advantages

Superelasticity and Shape Memory Behavior

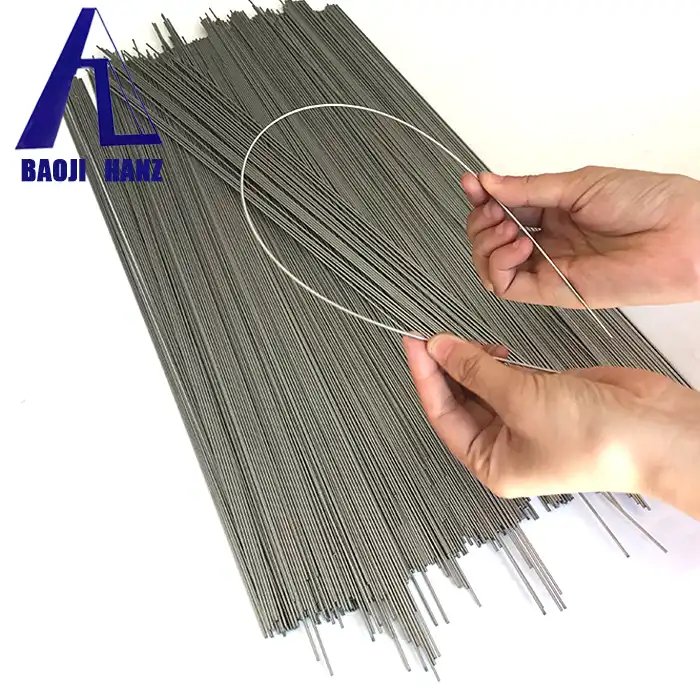

Bend the wire hard and it still springs back to its original shape. Guide wires rely on this. So do stents and actuator parts. Alloy chemistry drives the phase transformation. DSC testing proves it out before anything ships. Nothing gets left to guesswork here.

High Dimensional Accuracy

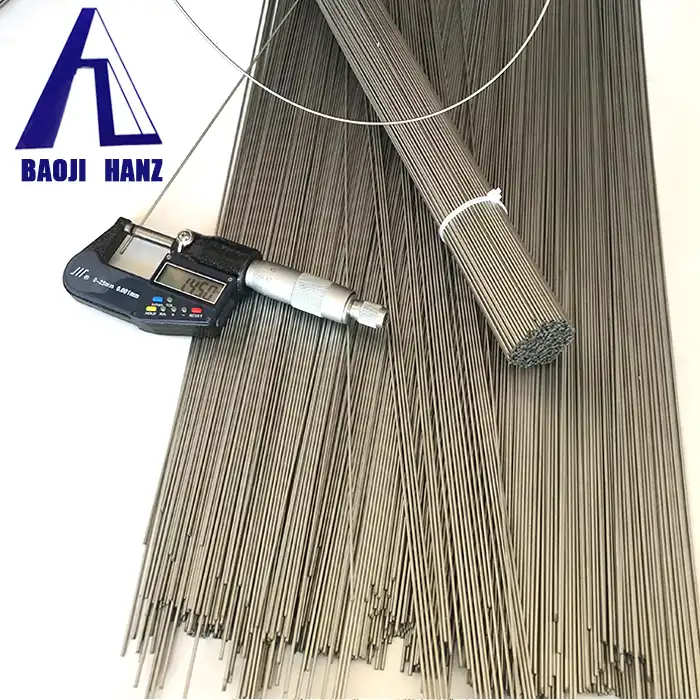

The wire holds its shape from one spool to the next. Diameter tolerance stays at ±0.002 mm. Coiling micro-springs is where that tightness matters. Fine mesh parts need it too. Even a small drift in size can cause failures later in the process.

Fatigue and Corrosion Resistance

Cyclic fatigue is held back by the nickel-titanium mix. Any part that carries dynamic mechanical loads needs that. For medical device applications, the nitinol standard is ASTM F2063-18, and medical-grade wire meets it.

Customizable Transformation Temperature

You can set the Af temperature from 10°C to 80°C. Options go as low as -20°C. Design engineers can then pick a wire that activates at the temperature their system needs. No need to adapt the design around fixed material parameters.

Processing Compatibility

This wire handles bending. Spring coiling and weaving are no problem either. During processing, tooling wear goes down because of the wire's ductility and surface finish. For production-scale runs, that is a practical point.

nitinol wire rope

Applications of Superlastic Nitinol Wire Across Industries

Medical Superlastic Nitinol Wire Devices

Guide wires are one place this wire ends up. Vascular stents and suture threads use it as well. Dental root canal files are another use. Orthodontic arch wires depend on it too. Flexibility helps. So does strength. Meeting ASTM F2063-18 is part of the package. Those traits make it a workable base material for minimally invasive interventional tools.

Industrial Components

Woven stents are one industrial use. Eyeglass frames are another. Mobile phone antennas also rely on this wire. It holds its shape under mechanical stress. Light weight comes with that. The two together give functional value for these jobs. Standard metal wire usually cannot match it.

Thermal Actuation and Smart Structures

Thermal-actuated parts and micro-spring assemblies appear in some systems. Af temperature is adjustable here. A wire can be picked to activate at the exact temperature the system needs. That gives a set mechanical response. Extra electronic control is not required.

product-1-1

Why Work With Baoji Hanz Metal Material Co., Ltd.

In-House Full-Process Manufacturing

The full production chain runs in-house at the Baoji Titanium Valley Nonferrous Metals Base. Vacuum melting comes first, then final heat treatment. Work stays under direct control. That lowers exposure to material variability from third parties. Chemical composition and phase-transformation performance remain consistent across batches.

Batch-by-Batch Testing

Testing covers every batch. Chemical composition gets checked, and so do mechanical properties: tensile strength, elongation and platform stress. DSC measures the phase-transformation temperature as well. GB 24627-2009 and ASTM F2063-18 set the rules for these checks. Ask us and we can send the test reports.

Customization Options

Diameter, Af transformation temperature, surface finish, and packaging format can all be specified. Both raw wire and finished formed parts are available, covering the range from early-stage R&D through full production.

Both Medical Grade and Industrial Grade Are Available

One supplier covers both grades. The same quality checks apply across the whole range. So when a single project needs material in more than one spec, buying gets simpler.

Low MOQ and Export Documentation

The minimum order is 1–2 kg, or 200 meters for fine filaments, with lead times of 20–30 working days. Packaging is shockproof and moisture-proof. Export documentation is handled by the team.

Technical Guidance

The technical team can assist with Superlastic Nitinol Wire material selection, Af specification, and processing recommendations. This support is available from initial enquiry through to production qualification.

Packaging

Wire goes out in coils or as straight lengths. All packs are sealed. They are built to take shock and moisture. Coils get one more layer too: moisture-proof paper for the trip.

​​​​​

nitinol flat wire

nitinol wire rope

Frequently Asked Questions

Q: What is the minimum order quantity?

A: Standard wire has a 1–2 kg MOQ. Fine filaments start at 200 meters. Prototyping and qualification orders can run at these levels. Big upfront commitments are not needed.

Q: Can the Af transformation temperature be customized?

A: Yes. The Af temperature can be specified within the range of 10°C to 80°C, with options extending down to -20°C. The specified temperature is confirmed at order placement and verified by DSC testing prior to shipment.

Q: What surface finishes are available?

A: Three options are available: pickled, bright polished, and ground. The appropriate choice depends on downstream processing requirements and surface quality standards for the application.

Q: What test reports are provided?

A: Batch-by-batch testing covers chemical composition, mechanical properties (tensile strength, elongation, platform stress), and DSC phase-transformation temperature. Full test reports are provided on request.

Q: Is the wire suitable for medical device applications?

A: Medical-grade wire is available. It meets ASTM F2063-18. That standard is for nitinol in medical use and is recognized worldwide. Biocompatibility requirements change with the application. Check them against the regulatory framework that applies.

Q: What diameter range is available?

A: Standard diameters run from Φ0.025 to 4 mm, with tolerance of ±0.002–±0.02 mm. Enquiries for diameters outside this range can be discussed based on technical feasibility.

Contact Us

For quotes or technical questions, contact us about Superlastic Nitinol Wire at hztech01@hanztech.cn. We welcome enquiries from R&D teams, procurement specialists, and device manufacturers.
