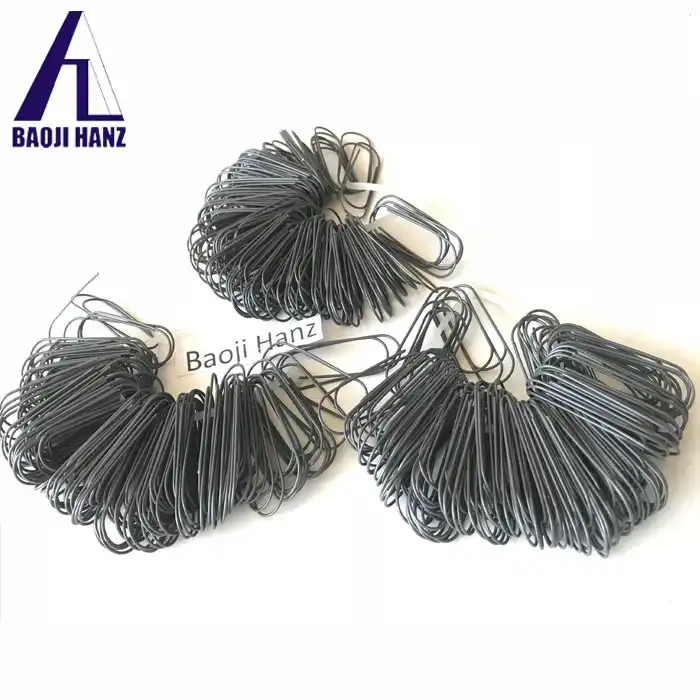

Nitinol Paper Clips

Nitinol paper clips
Wire diameter: 0.75mm, 1mm and so on
Shape: Paper clip
MOQ 100 pcs
Feature: Shape memory
Af temperature : more than 55C
Advantage: can hold shape for long time
Payment method: paypal, credit card, bank transfer and so on
Nitinol Paper Clips have a wide range of applications in multiple fields thanks to their shape memory and hyperelastic properties, and despite their higher cost, their durability and versatility make them ideal for many applications.

Nitinol Paper Clips - Shape Memory Clip Solutions for Stable, Repeatable Clamping

Nitinol Paper Clips come from Baoji Hanz Metal Material Co., Ltd. Workers make them from Ni-Ti alloy wire. Wire diameters run from 0.2 mm to 2.0 mm. The Af transformation temperature can be set anywhere between 20°C and 100°C. Standard clips get a setting above 55°C. The material meets GB 24627-2009 and ASTM F2063-18. Tensile strength is ≥850 MPa and density is 6.45 g/cm³. Conventional metal clips deform and lose grip force when cycled again and again. These clips do not. The shape memory effect brings back their original clamping geometry.

nitinol paper clips

Nitinol Paperclips

Nitinol Paperclips -1

Nitinol Wire Paper Clips

nitinol metal paper clip

nitinol wire paper clip

How clips Work Differently

Open and close a standard metal paper clip enough times and it deforms. Clamping force drops over time. The wire takes a permanent bend, or the clip breaks. Where steady grip matters, that is a real limit in practice.Nitinol Paper Clips ship in bulk or in retail-ready packs, and the wire diameter can be adjusted to your clip design.

The shape memory effect is what fixes this in this product. Heat the clip above its programmed Af temperature and it goes back to the clamping shape it started with. No hands needed. Heat treatment sets the clip geometry, and the recovery holds up over many cycles.

The underlying material behavior comes from the reversible martensitic phase transformation in the Ni-Ti alloy. This is the same mechanism used in medical devices and actuators, applied here in clip form.

Key Features

  • Shape memory effect: Clips recover their original clamping geometry upon reaching the Af transformation temperature
  • Cyclic stability: Repeated open-close loading does not wear the structure down. The alloy resists mechanical relaxation
  • Corrosion resistance: Humid settings and mildly corrosive ones are no problem for Ni-Ti alloy. It holds up well there
  • Biocompatibility (medical grade available): Medical-version clips are manufactured to meet material safety requirements for applicable uses
  • Customizable geometry and Af temperature: Wire diameter goes on the drawing. Clip shape and surface finish are spelled out there too, and so is the transformation temperature

Technical Specifications

Attribute Details
Name Nickel-titanium paper clips
Material Nickel-Titanium Alloy (Nitinol)
Size 1mm
Color Metallic Silver
Weight 0.5 grams per clip
Load Capacity Holds up to 20 sheets of paper
Temperature Range -20°C to 80°C (-4°F to 176°F)
Shape Memory Effect Returns to original shape at 70°C (158°F)
Packaging Safe packing for export

Typical Applications

Science Education and Demonstrations

Shape recovery you can watch makes this product a handy hands-on tool for classrooms and science exhibitions. Heat the clip above its Af temperature and it springs back to the shape it was set to. That is the shape memory effect, right there in an object everyone knows.

Magic Props and Performance

Heat makes the clip return to its first shape. Anyone watching can see it happen, yet how it works stays hidden. For close-up magic, that makes these clips handy props. The same goes for live demos, since you can set off the recovery right in front of an audience.

Novelty and Gift Products

Here is a clip that does a job, and it can do the same trick again and again. That mix turned shape memory clips into a novelty item people know, and into a gift with something to teach.

Specialized Clamping and Prototyping

You can set the Af temperature and the clip geometry to suit the job. As a result, these parts work in clamping mechanisms and in prototype fixtures. They also fit cases where ordinary clips fall short on size or on mechanical strength.

Nitinol Paper Clips Manufacturing and Quality

We Make Every Part In-House, Nitinol Paper Clips from Raw Material to Finished Piece

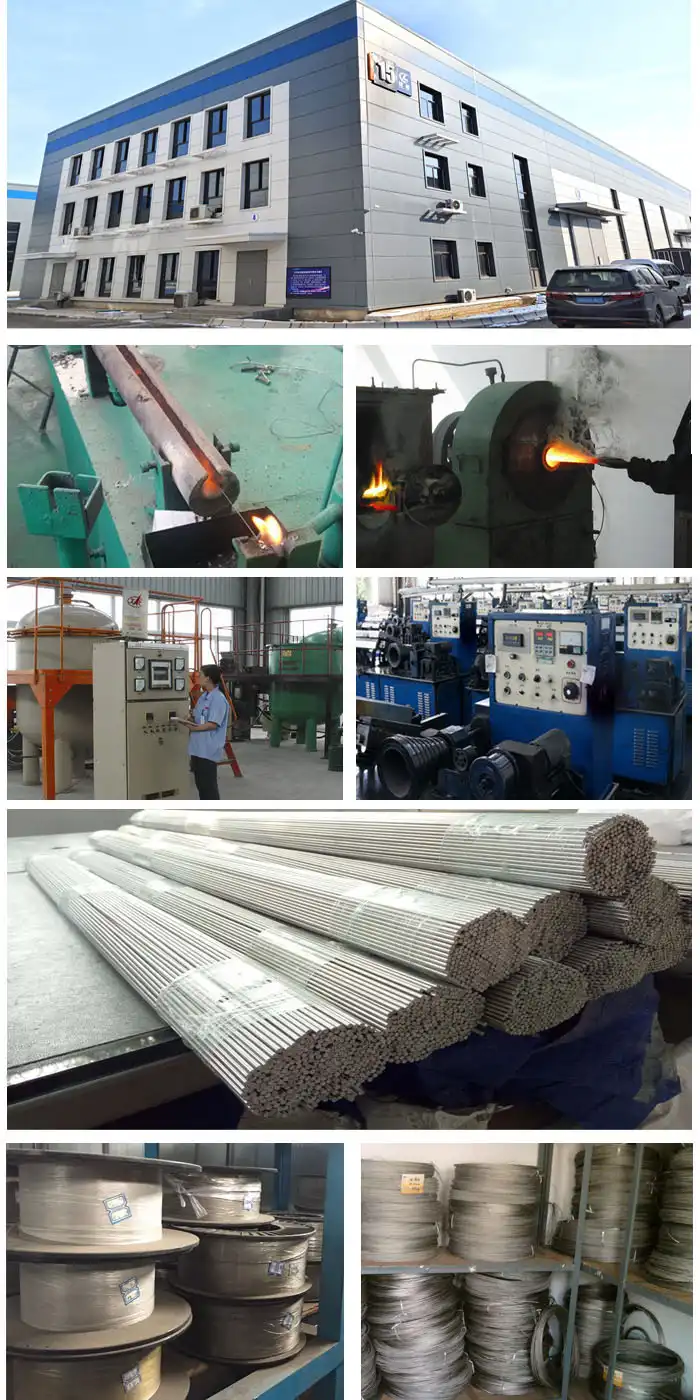

Vacuum melting is where it starts. Cold drawing comes next. After that, the wire is shape-set. Heat treatment follows. Every step stays in the same facility. That means direct control over chemical composition. Phase transformation stays consistent from batch to batch. The process meets GB 24627-2009 and ASTM F2063-18.

Customization Scope

You can set the wire diameter on the drawing. Af transformation temperature (20°C–100°C) can be set the same way. Clip geometry is open to specification. Surface finish can be specified too. Raw material is kept in stock. Finished shaped parts are available as well.

Batch Testing and Documentation

Each production batch is tested for chemical composition, mechanical properties, and DSC phase-transformation temperature. Test reports are available upon request.

Medical and Industrial Grade

Ni-Ti products from this company come in two grades: medical-grade and industrial-grade. Per drawing, the minimum order is 100 pcs. Standard lead time runs 20–35 working days.

nitinol paper clips related product nitnol sheet

Nitinol Sheet

nitinol paper clips related product nitinol rod

Nitinol Rod

nitinol paper clips related product nitinol wire

Nitinol Wire

nitinol paper clips related product nitinol pipe

Nitinol Tupe

nitinol paper clips related product nitinol flat wire

Nitinol Flat Wire

nitinol paper clips related product nitinol wire rope

Nitinol Rope

Frequently Asked Questions

Q: What is the minimum order quantity?

A: The MOQ is 100 pcs per drawing. That leaves room to build prototypes and validate a small batch before you scale up.

Q: Can the Af transformation temperature be customized?

A: Yes. The Af temperature can be set anywhere from 20°C to 100°C, based on what your application needs. For these clips, the standard configuration sits above 55°C.

Q: What surface finishes are available?

A: Pickled, polished, and ground finishes are available. The preferred finish can be specified at the time of inquiry.

Q: What is the lead time?

A: Lead time normally runs 20–35 working days. How big the order is and what custom work you ask for can shift that window.

Q: Are test reports provided?

A: Yes. Batch-level test reports covering chemical composition, mechanical properties, and DSC phase-transformation temperature are available upon request.

Contact Us

For orders, samples, or custom specifications, contact us about Nitinol Paper Clips at hztech05@hanztech.cn: we respond to all technical and commercial inquiries.
