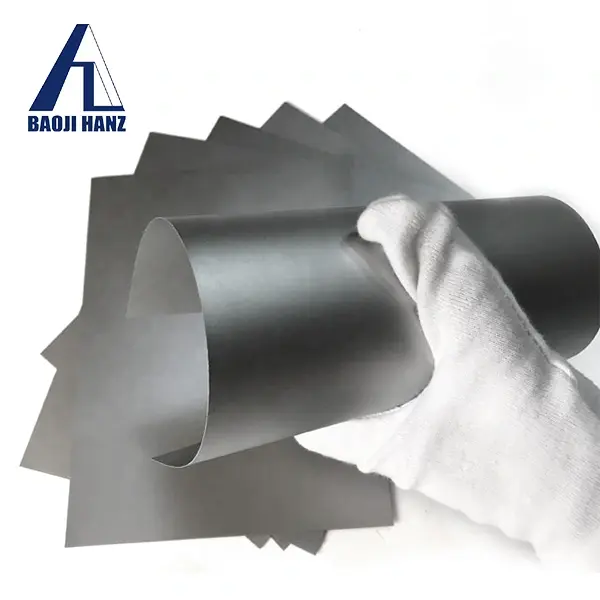

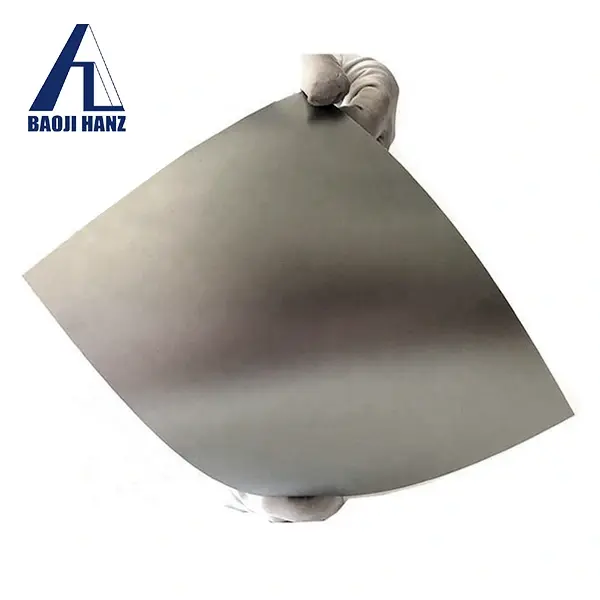

Nickel Titanium Shape Alloy Sheet for Precision Applications - Ultra-Thin, Customizable & High-Performance
Nickel Titanium Shape Alloy Sheet is made by Baoji Hanz Metal Material Co., Ltd. Their own plant does melting and cold rolling, start to finish. Both GB 24627-2009 and ASTM F2063-18 are met. Thickness spans 0.03 mm to 1 mm. ±0.003–±0.02 mm is where dimension tolerances sit. Af transformation temperature range can be set anywhere from -20°C to 100°C. Tensile strength reaches 550–1900 MPa. Elongation falls at 10–20%. Two grades are available: medical-grade and industrial-grade.
Material Behavior and Alloy Design
Conventional metals lose shape, accumulate fatigue damage, or corrode when subjected to repeated elastic deformation in demanding environments. Nitinol addresses these limitations through its phase-transformation mechanism.
Ni accounts for 54.5–57.0 wt% of the alloy. The balance is titanium. A temperature change or mechanical stress causes a switch between a softer martensitic phase and a stiffer austenitic one. That Ni and Ti mix controls the switch. After large deformation, the sheet still returns to the shape set into it. This return holds up over many cycles. Standard spring steel and stainless materials do not act like that.
Technical Specifications
|
|
|
| Place of Origin | Shaanxi, China |
| Brand Name | Baoji hanz |
| Color | Bright surface |
| Materials | Nitinol alloy |
| Density | 6.45 gm/cm3 |
| Ti (Min) | 45% |
| Strength | 980 Mpa |
| Processing Service | Bending, Welding, Decoiling |
| Width | ≤200mm |
| Tensile strength | 920Mpa |
| Feature | Shape memory |
| Supply Status | Full annealed |
| The Max recovery stress | 600 MPa |
| Standard | ASTM F2063-18 |
| Certificate | ISO9001:2015 |
| Application | Medical device |
| Chemical element | Af range | Available production Line | Usage | Sample |
| Nickel 55% Titanium 45% | 0℃to 100℃ | Rod&wire,Plate&sheet,Strip&foil | Medical&Industry | On stock (various specification) |
| Nickel 55% +V +Ti | ||||
| Nickel 55% +Fe +Ti | Subzero 30℃ to -5 ℃ | Rod&wire,Plate&sheet | Industry | On stock |
| Nickel 55%+Cr +Ti | (limitedspecification) | |||
| Nickel 55% +Hf +Ti | Above 100C | Ingot | Ingot | Updating |
| Mechanical Properties | ||||
| Thickness | UTS | Elongation | Upper Plateau Stress | Active Af |
| mm | σb MPa (min.) | δ % (min) | σload MPa (min.) | ℃ |
| 0.1 ~ 0.3 | 1100 | 15 | 480 | |
| 0.3 ~ 0.6 | 920 | 15 | 440 | - 20 ~ 100 ℃ |
| 0.6 ~ 6.0 | 850 | 15 | 440 | |
Key Characteristics
- Shape memory and superelasticity drive the sheet's function. Bend it many times. It still returns to the shape set into it. Spring components depend on that. Thermal actuators and flexible medical device elements depend on it too.
- Precision thickness with controlled tolerances keeps performance steady from one production batch to the next. Parts run as thin as 0.03 mm. At that thinnest end, tolerance holds at ±0.003 mm. Microdevice integration depends on this, since any dimensional variation changes how the part works.
- Fatigue resistance and corrosion resistance help a part stay in service for a long time. The material is biocompatible as well. That makes it usable in industrial settings and in medical-grade work.
- Customizable Af transformation temperature lets a thermally-actuated design set where the phase change triggers, anywhere inside the -20°C to 100°C range. You choose the point to match the actuation condition of each application.
- Stampable and cuttable geometry means the sheet is compatible with standard precision stamping and cutting processes for micro-component production.
Application Scenarios
- In medical applications, this Nickel Titanium Shape Alloy Sheet is used in interventional device foils, micro-implant accessories, and minimally invasive instrument springs, where shape recovery and material flexibility are functional requirements.
- In industrial and engineering applications, use cases include thermal-actuated components, sensor springs, microswitches, and aerospace flexible parts. The adjustable Af range and fatigue resistance make it applicable where conventional metals degrade under cyclic loading or environmental exposure.
Nickel Titanium Shape Alloy Sheet Manufacturing and Quality Process
Baoji Hanz Metal Material Co., Ltd., located in Baoji Titanium Valley Nonferrous Metals Base, has operated since 2017. All production steps - from vacuum melting through cold rolling to final heat treatment - are performed in-house, providing process traceability across the full production chain.
Both GB 24627-2009 and ASTM F2063-18 set the bar for chemical composition and phase-transformation performance. No batch skips inspection. Chemical makeup gets tested. Mechanical properties are checked. DSC analysis of the phase-transformation temperatures is part of the run. Ask for the test reports and they travel with the shipment.
Thickness is your call, and so is the Af transformation temperature. Pickled, bright polished or ground: any of those surface finishes works. How the goods are packed and shipped is up to you too. Raw material sheets are supplied. Finished Nickel Titanium Shape Alloy Sheet formed parts ship as well. MOQ sits at 1 kg. Lead time runs 15–30 working days. Samples cost nothing, so just ask for them.
| Tolerance | |
| Nominal Thickness in mm | Permissible Variation from Nominal in mm |
| 6.00 ~ 1.00 | ± 0.05 |
| 1.00 ~ 0.26 | ± 0.03 |
| 0.26 ~ 0.15 | ± 0.02 |
| 0.15 ~ 0.10 | ± 0.01 |
Frequently Asked Questions
Q: What thickness range is available?
A: The standard thickness range is 0.03–1 mm. Inquiries about thicknesses outside this range can be submitted for review based on the specific application.
Q: Can the Af transformation temperature be customized?
A: Yes. Af can be set anywhere from -20°C to 100°C. Send the inquiry with the actuation temperature you need. We then build the alloy to match it.
Q: What surface finishes are offered?
A: Three options are available: pickled, bright polished, and ground. The appropriate finish depends on the application; medical applications typically require polished surfaces, while many industrial parts are compatible with pickled finish.
Q: Is medical-grade material available?
A: Yes. Medical-grade sheets meet ASTM F2063-18. Full test documentation for chemical and mechanical properties ships with them.
Q: What is the minimum order quantity?
A: The MOQ is 1 kg. Prototyping and small-batch production both fit in that amount. Qualification testing works too. Ask us for free samples.
Q: How do you keep each batch consistent?
A: Each batch gets tested. The checks cover chemical composition and mechanical properties. We also measure the DSC phase-transformation temperature. Ask us and you can have the test reports. That lets you check performance against the design specifications for each order.
Contact Us
Send your specifications or Nickel Titanium Shape Alloy Sheet sample request to hztech01@hanztech.cn. Include your target thickness, Af temperature, and intended application for a faster response.
