Shape Memory Nickel Titanium Plate

Ni(Min):54%
Material:nickel titanium alloy or Ti-Ni Alloy
Surface:mechanical polishing
Density:6.45g/cm3
size:customized
MOQ:10pcs
Application: Industry or medical
Products Description

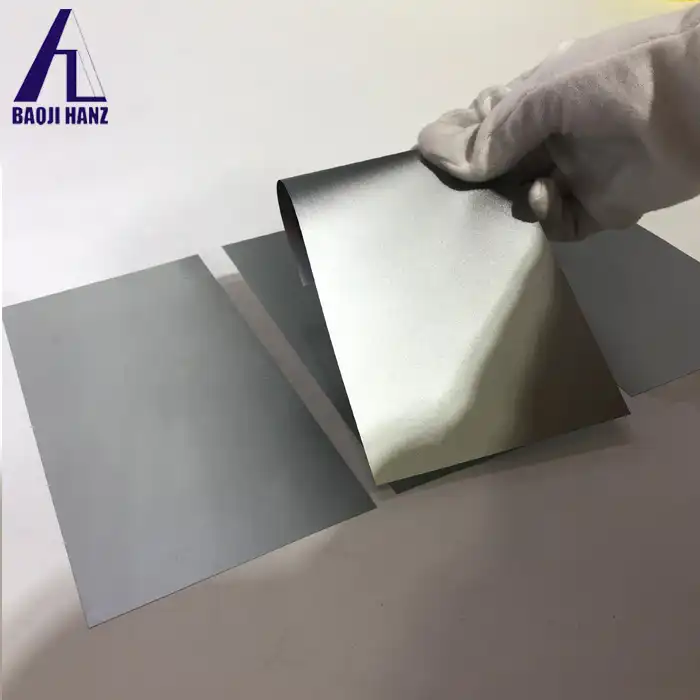

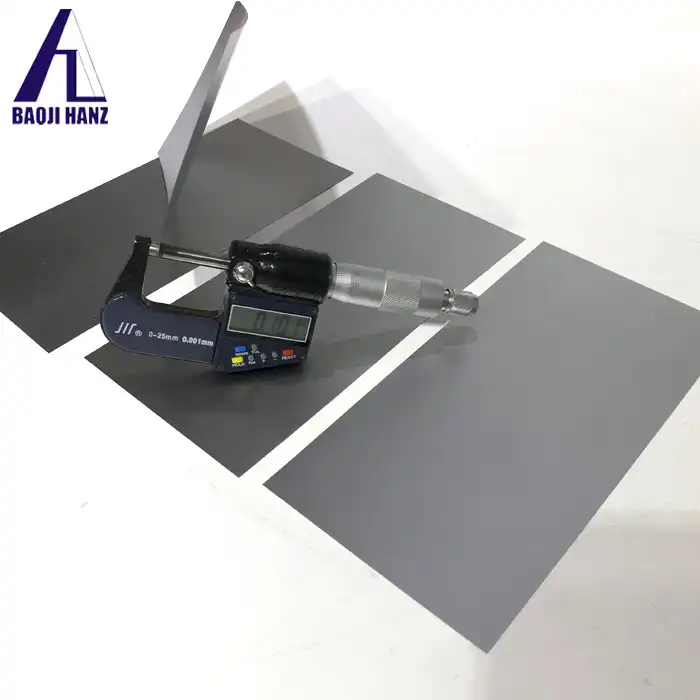

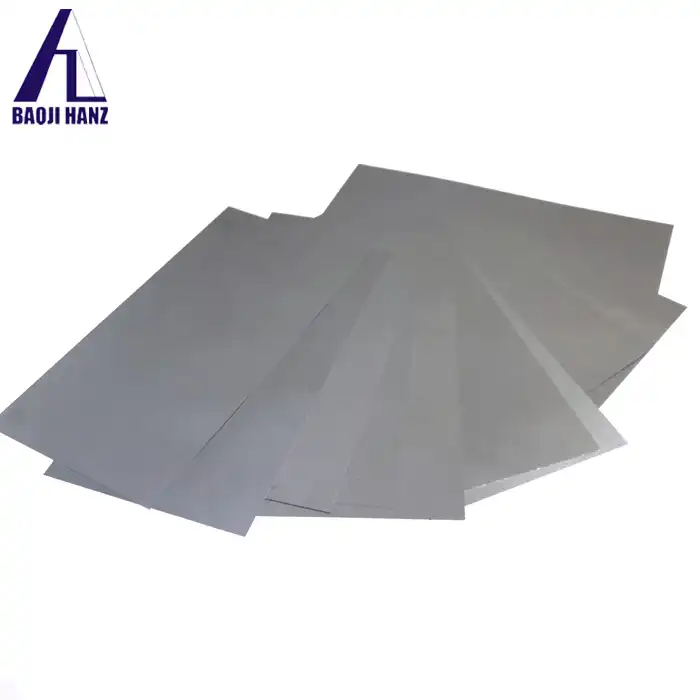

Shape Memory Nickel Titanium Plate | Nitinol Shape Memory Alloy Sheet​

Meta Title: Shape Memory Nickel Titanium Plate |

Meta Description: High-performance shape memory nickel titanium plate (Nitinol) with excellent shape memory effect, superelasticity & biocompatibility. Custom sizes & transformation temp. Medical/industrial grade available.​

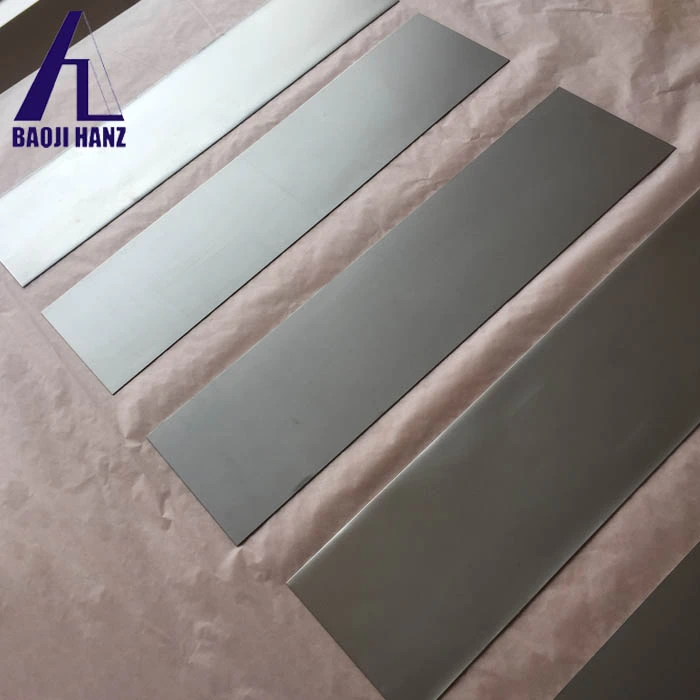

shape memory nitinol plate

Custom Nitinol SMA Sheet ASTM F2063​

Our Shape Memory Nickel Titanium Plate (Nitinol Plate) is a premium shape memory alloy (SMA) engineered for high-precision applications. Combining exceptional shape memory effect (SME), superelasticity, outstanding biocompatibility and corrosion resistance, it is widely used in medical devices, aerospace, automotive, sensors, actuators and high-tech engineering.​

Material & Standards

Standard ASTM F2063, ISO 9001, ISO 13485 (medical option)​
Density: 6.45 g/cm³​
Transformation Temp (Af): Customizable -50°C ~ 100°C​
Thickness: 0.01mm min
Surface: Pickled / Bright Annealed / Polished​
Width: 50mm – 600mm
Material: Nickel Titanium (NiTi, Nitinol)​

Typical Composition:

Ni 50.0–57.0%, Ti Balance​
Custom sizes: OEM / ODM available​

Features​

Shape Memory Effect: Recovers pre-set shape when heated above transformation temperature (Af)​

Superelasticity: Up to 8% strain recovery without permanent deformation​

Excellent Biocompatibility: Meets ISO 10993 & ASTM F2063 for medical implantation​

High Corrosion Resistance: Stable in body fluids, seawater & harsh industrial environments​

Customizable: Transformation temperature, dimensions, hardness & surface finish adjustable​

Long Fatigue Life: Stable performance under repeated deformation cycles​

Typical Applications​

nitinol alloy application

Why Choose Us​

Factory direct supply with stable quality & competitive price​

Full traceability from raw material to finished product​

Custom transformation temperature & mechanical properties​

Precision cutting, heat treatment & surface finishing​

Fast lead time & flexible MOQ for prototypes & mass production​

Full technical support for design & material selection​

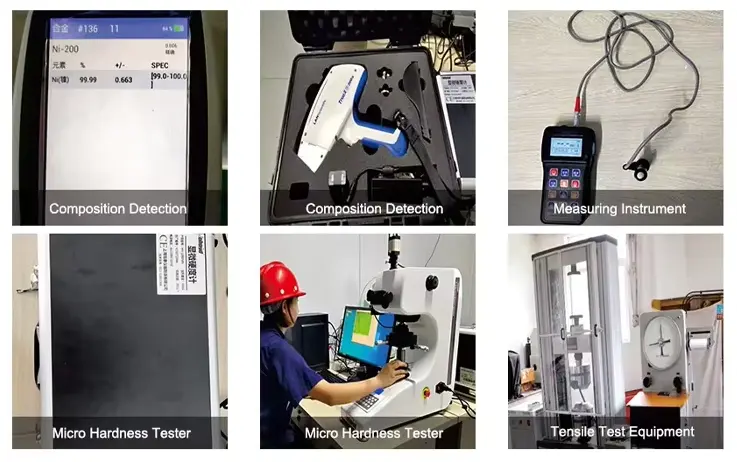

nitinol sheet plate

Customization Service​

Custom dimensions (thickness / width / length)​

Tailored transformation temperature (Af)​

OEM packaging & labeling​

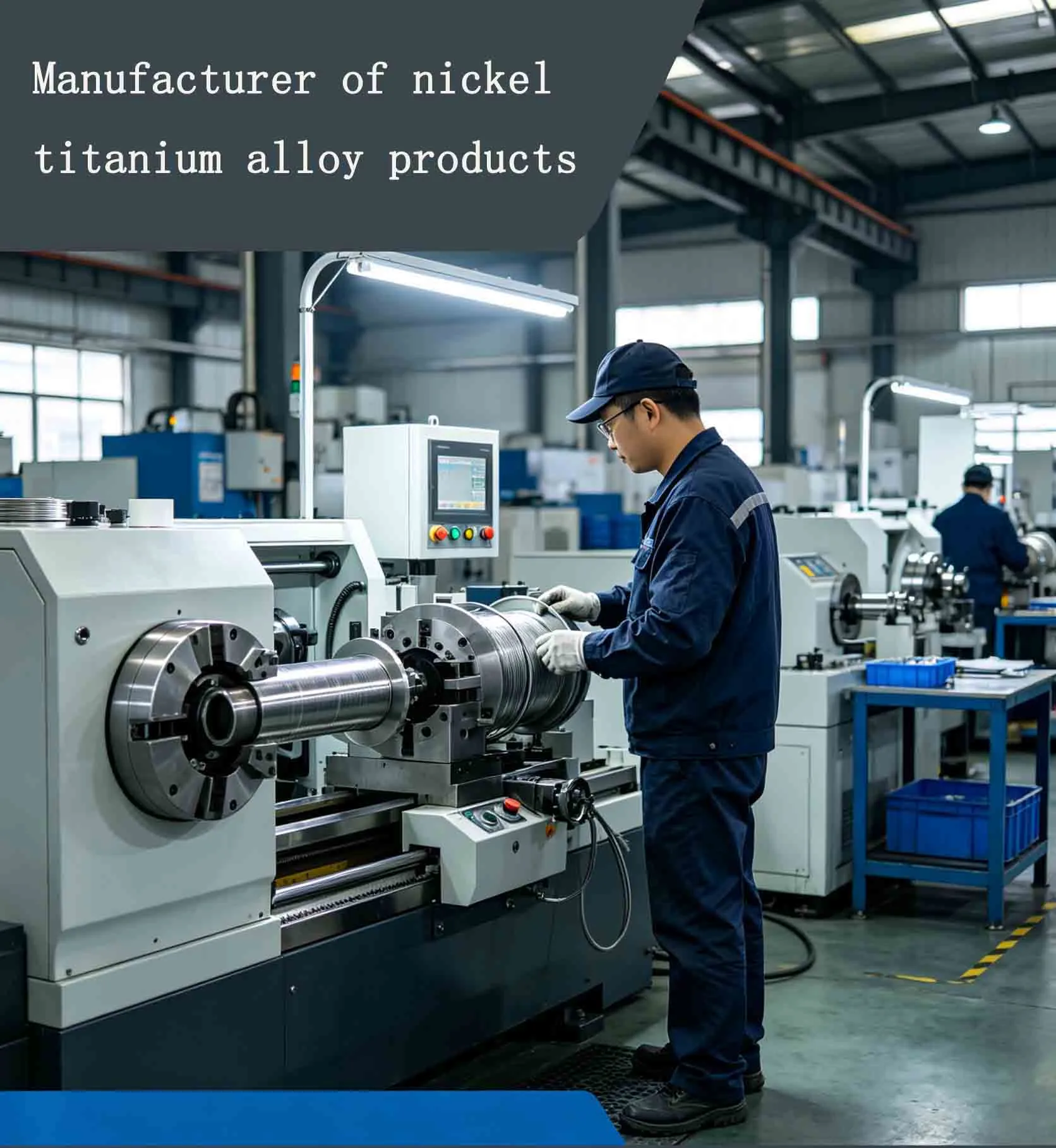

nitinol alloy plate

Packaging & Shipping​

Protective film + anti-rust paper + carton + plywood case​

Sea / Air / Express delivery available​

Export standard packaging for global shipping​

​​

nitinol alloy

FAQ

Q1: What are the differences between Shape Memory Nickel Titanium Plate and superelastic nickel-titanium alloy plates?

A1:Shape memory alloys can return to their original shape when heated. Superelastic alloys will automatically spring back at room temperature.

Q2: What is the Af temperature? Can it be customized?

A2: Af = The temperature at which it reaches the state of complete shape recovery. Yes, it can be customized - from -50°C to 100°C.

Q3: What are the applicable standards?

A3: Medical field: ASTM F2063, ISO 13485, ISO 10993. Industrial field: ISO 9001.

Q4: What are the dimensions and thicknesses?

A4: Thickness: 0.01 - 20 millimeters. Width/length can be customized. Tolerance: ±0.01 millimeters.

Q5: What is the minimum order quantity and delivery period?

A5: The minimum order quantity is flexible (samples are acceptable). Standard delivery period: 7 - 15 days. Customized delivery period: 15 - 25 days.

Contact Us​​​​​​​​

For quotation, samples or technical support, please email us directly: baojihanz-niti@hanztech.cn  We will reply within 24 hours.​
