ASTM F2063 Shape Memory Alloy nitinol Wire

Standard: GB 24627-2009/ ASTM F2063-18
Material: nitinol alloy
Surface: clean black, bright, brown, blue
Size: φ0.01mm~2mm
Tolerance: ±0.02mm
MOQ:1kg or 100 meter
Af:-40~70℃
OEM: customized
Sample: Available
Application: chemical, medical, mechanical

ASTM F2063 Shape Memory Alloy Nitinol Wire - For Medical and Industrial Applications

ASTM F2063 Shape Memory Alloy nitinol wire comes from Baoji Hanz Metal Material Co., Ltd. Vacuum melting comes first. Final heat treatment comes last. No stage leaves the plant. Both GB 24627-2009 and ASTM F2063-18 are met by the wire. A diameter range of Φ0.025 mm to 4 mm is available. At its tightest, tolerance is ±0.002 mm. Af transformation temperature can land anywhere between -40°C and +70°C. Tensile strength holds at ≥1300 MPa. Elongation holds at ≥10%. Medical use suits it. Industrial use suits it. Micro-mechanical use suits it too.

Why Nitinol Wire Outperforms Standard Metal Wire

Repeated bending often makes standard metal wires crack or take a permanent set. Interventional guide wires hit this limit. Microsprings and thermal actuators do too. Steady mechanical behavior matters in those parts.

Superelasticity and recovery of shape memory. Coil it. Bend it. Pull it long. The wire still returns to the shape it was given. Stainless steel wire cannot do this. Titanium wire cannot either.

Technical Specifications

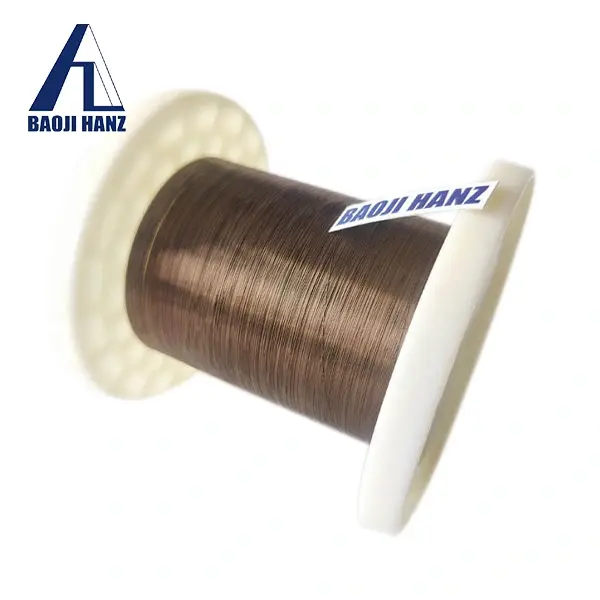

ASTM F2063 shape memory alloy nitinol wire factory

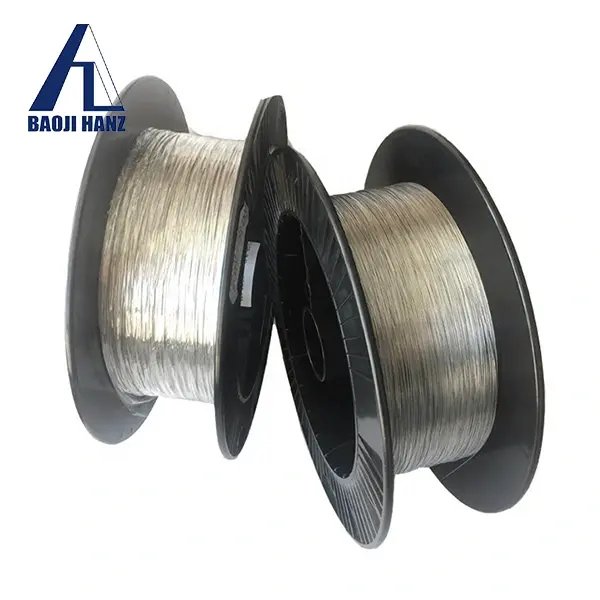

ASTM F2063 shape memory alloy nitinol wire supplier

Place of Origin Shaanxi, China
Brand Name Baoji hanz
Color Black, brown, brown, blue, bright
Materials nitinol alloy wire
Density 6.45 gm/cm3
Ti (Min) 45%
Strength 980 Mpa
Processing Service Bending, Welding, Decoiling
Wire Gauge 0.02mm min
Tensile strength 980 Mpa
Feature Shape memory
Supply Status Full annealed
Modulus of elasticity Austenite 83 Gpa
The Max recovery stress 185 MPa
Standard ASTM F2063, Q/XB1516
Certificate ISO9001:2015
Application Guide wires Shape set parts ,Orthodontic Files .Arch wire . fishing wire .bra frames wire .glasses wire .spring wire
Chemical element Af range Available production Line Usage Sample
Nickel 55% Titanium 45% 0℃to 100℃ Rod&wire,Plate&sheet,Strip&foil Medical&Industry On stock (various specification)
Nickel 55% +V +Ti
Nickel 55% +Fe +Ti Subzero 30℃ to -5 ℃ Rod&wire,Plate&sheet Industry On stock
Nickel 55%+Cr +Ti (limitedspecification)
Nickel 55% +Hf +Ti Above 100C Ingot Ingot Updating
Element Mass Percent(Mass%)
Ni 54.5~57.0
C ≤0.040
Co ≤0.050
Cu ≤0.010
Cr ≤0.010
H ≤0.005
Fe ≤0.050
Nb ≤0.025
N ≤0.005
O ≤0.040
Ti margin

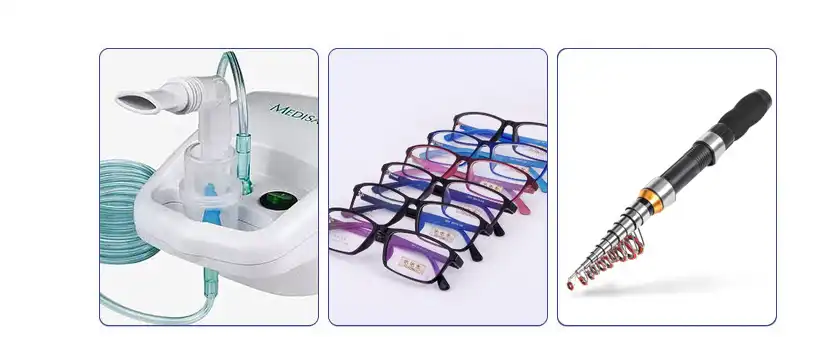

shape memory nitinol wire

Characteristics

Superelasticity and recovery of shape memory. Coil it. Bend it. Pull it long. The wire still returns to the shape it was given. Stainless steel wire cannot do this. Titanium wire cannot either.

Tolerances remain narrow. The diameter stays within ±0.002 mm, even at fine sizes. Downstream results hold steady because of that. Guide wires are one example, and orthodontic arch wires are another. Precision microsprings get the same gain.

Transformation temperature you can adjust. Alloy composition and heat treatment set the Af range, from -40°C to +70°C. Change either one and you can line up the wire's actuation point with what your design needs.

Multiple surface conditions. You can get pickled, bright polished, or ground finishes. Each one fits a different downstream process or look requirement.

Forming is flexible. Standard forming machines can bend this wire. Coiling it into springs also works. It can be woven into mesh and stent structures too.

Application Scenarios

Medical

Guide wires depend on superelasticity. It lets them steer through twisted vascular pathways without kinking. Woven vascular stents and mesh structures need the ASTM F2063 Shape Memory Alloy nitinol Wire for steady cyclic performance under physiological loading. Dental root canal files and orthodontic arch wires use this wire too. So do surgical suture threads. All of them gain from the mix of flexibility and shape recovery it offers.

Industrial

Nitinol wire holds up well in eyeglass frames. Bend them and they spring back to their original shape. Phone antennas make use of the same flexibility, plus the material's durability. Heat-driven parts and woven industrial stents rely on shape memory to do mechanical work when the temperature shifts.

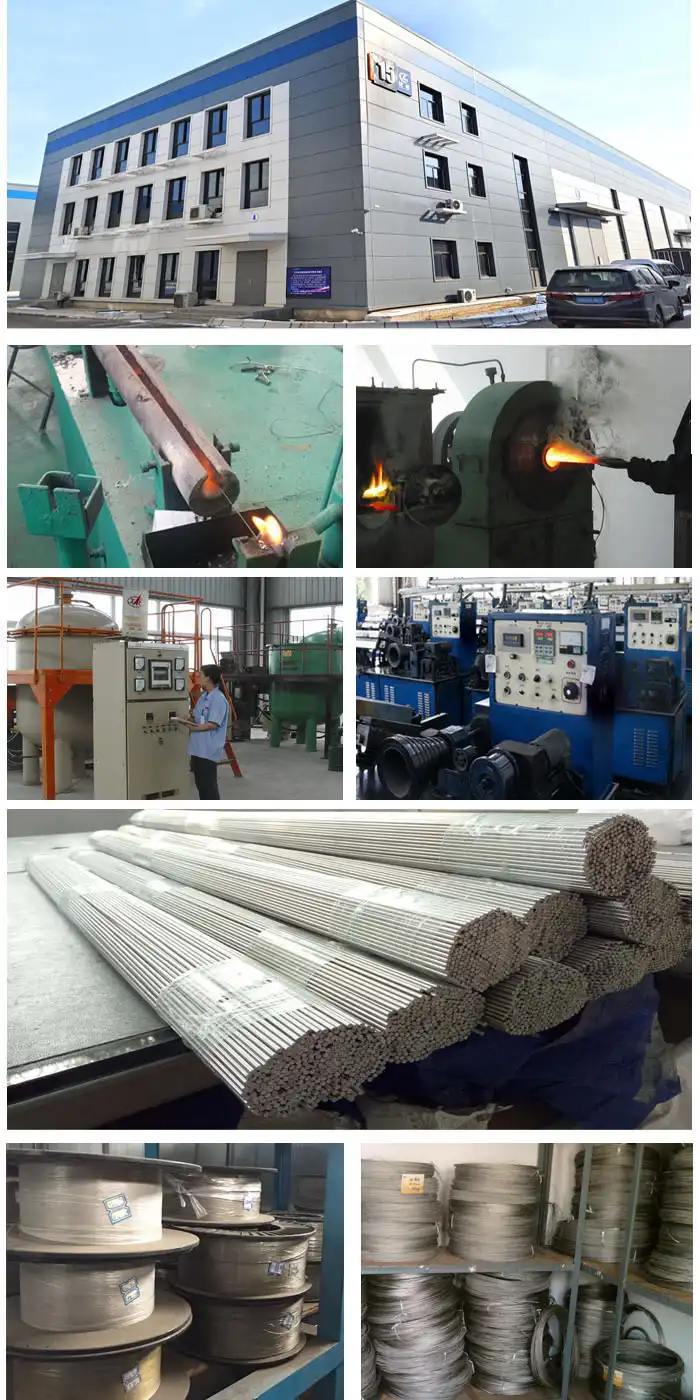

wire rope company

Why Source From Baoji Hanz

Full in-house manufacturing. Every step runs under our own roof. Vacuum melting happens here, and so do forming and heat treatment. That keeps chemical composition and phase-transformation behavior the same from batch to batch, with no outside subcontractors involved.

Dual-standard compliance. Our wire meets GB 24627-2009 and ASTM F2063-18. Customers who supply medical device markets in China, and the ones shipping internationally, care about that.

Per-batch testing and documentation. Every production batch gets tested. We check the chemical composition, the mechanical properties, and the DSC phase-transformation temperature. Test reports come with the goods on request. They help with your quality and regulatory processes.

Broad customization scope. You can specify the diameter and the Af temperature. Surface finish, packaging format, and delivery condition are yours to choose as well. Raw wire or formed parts, either one. Prototyping quantities are fine, and so is volume supply.

Accessible minimum order. MOQ starts at 2 kg, or 200 meters for fine filament wire, with lead times of 20–30 working days. Samples are available before bulk order.

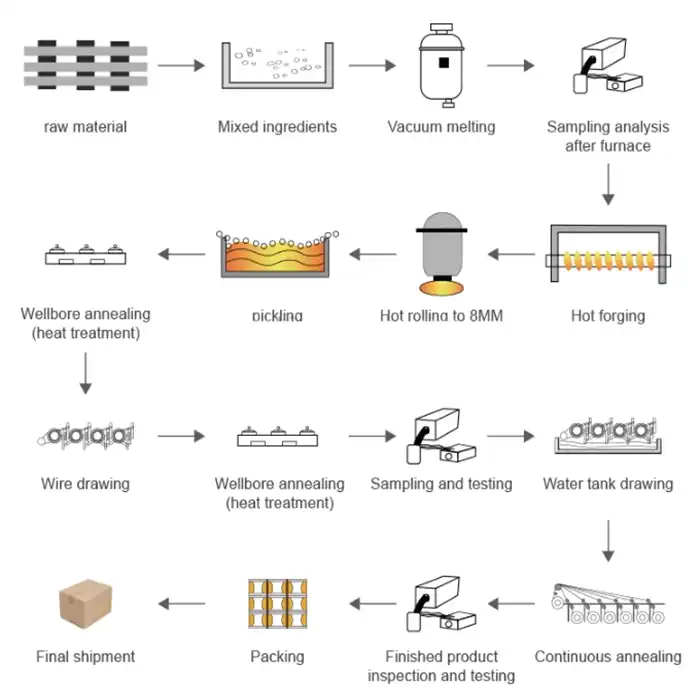

nitinol wire rope

nitinol shipping

Packaging and Delivery of ASTM F2063 Shape Memory Alloy nitinol Wire

The wire ships as a coil or in ASTM F2063 Shape Memory Alloy nitinol Wire straight lengths. Packs are sealed. They resist shock and moisture. Coils are wrapped in moisture-proof paper. This protects them in transit. Need different packaging or shipping? Just ask.

The production certification
Specification (mm) Shape Memory nitinol alloy wire Typical Medical industry Application
UTS (Mpa) Elongation % UpperPlateau Stress Mpa Permanent Set after 6% strain % Active AF
0.1-0.3mm ≥1100 ≥15 ≥480 <0.5 Subzero20~100 Guide wires Shape set parts, orthodontic files, arch wire, fishing wire, bra frames wire, glasses wire,spring wire
0.3~0.6mm ≥920 ≥15 ≥440 <0.5
0.6~3.0mm ≥850 ≥15 ≥440 <0.5

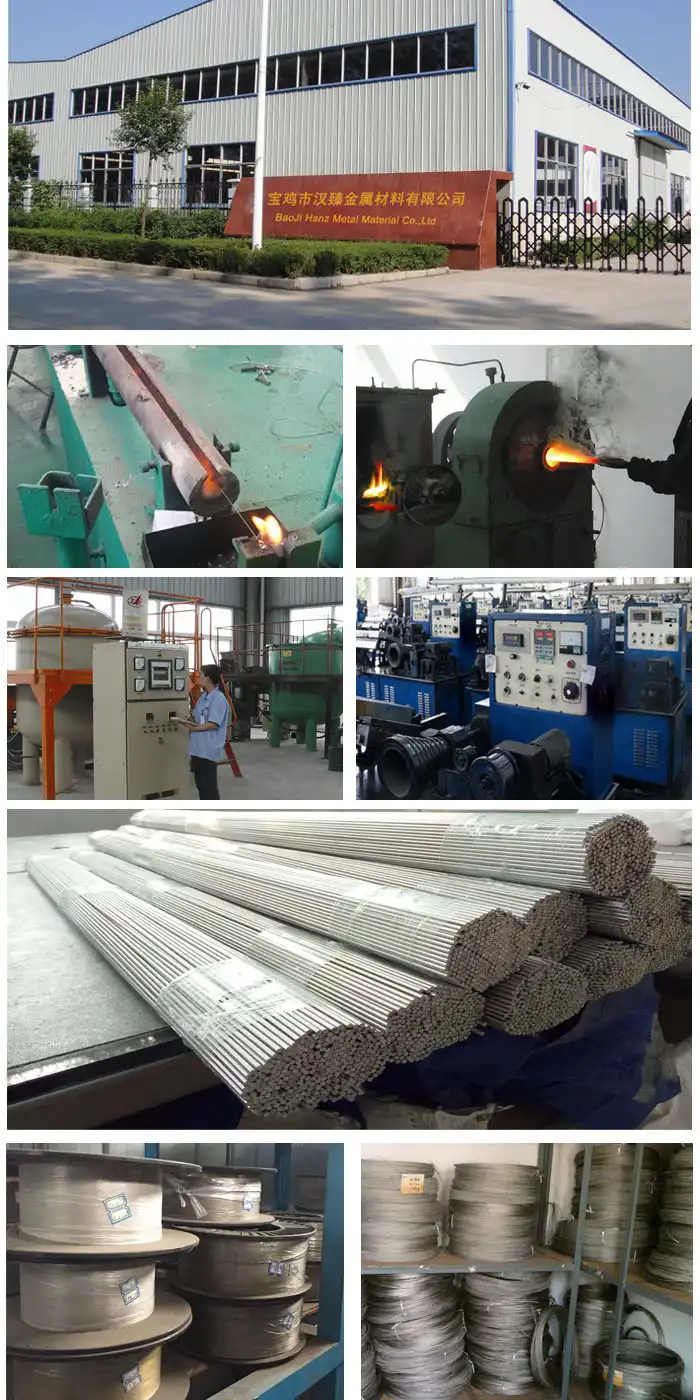

nitinol wire company

Frequently Asked Questions

Q: What separates medical-grade nitinol wire from industrial-grade wire?

A: Medical-grade wire faces stricter chemical purity rules. Biocompatibility requirements apply to it as well. Implants suit it well. Body-contact devices do too. Industrial-grade wire is made for mechanical performance. That grade ends up in non-medical work. GB 24627-2009 / ASTM F2063-18 covers both grades.

Q: Can the Af transformation temperature be customized?

A: Yes. The Af temperature can be set anywhere from -40°C to +70°C. We do this by controlling alloy composition and heat treatment. Tell us your target Af temperature when you request a quote.

Q: What is the minimum order quantity?

A: MOQ is 2 kg for standard wire and 200 meters for fine filament wire. Samples are available before placing a bulk order.

Q: What surface finishes are available?

A: Three options are available: pickled (clean black or brown surface), bright polished, and ground. The choice affects both appearance and compatibility with downstream processing steps.

Q: How is phase-transformation temperature consistency verified?

A: DSC (Differential Scanning Calorimetry) testing is performed on each production batch. Reports documenting Af, As, Ms, and Mf temperatures are provided on request.

Q: What diameter range is available?

A: Standard diameters run from Φ0.025 mm to 4 mm. Requirements outside this range can be discussed directly with the team.

Contact Us

For samples, technical specifications, or a quote, contact Baoji Hanz at hztech01@hanztech.cn. We respond to ASTM F2063 Shape Memory Alloy nitinol Wire enquiries within one business day.
